Push Lock Air Fittings Male Thread Straight Through 1/8'' 1/4'' 6mm 8mm
Push Lock Air Fittings Male Thread Straight Through 1/8'' 1/4'' 6mm 8mm
Nickel plated brass pneumatic fitting is an alternative and very reliable way to connect pneumatic hose. Brass rapid fitting is extremely solid, but still can be quite easily changed or replaced. The locking nut provided can be tightened by hand or with a wrench. Recommended for industrial applications. Nickel plated brass rapid fittings can work with pressure up to 10 bar in temperatures from -10°C up to 80°C. All rapid fittings are made of nickel-plated brass (with NBR sealing), and are dedicated to work with all kinds of plastic tubes, including, but not limited to: polyethylene, polyamide (nylon), polyurethane.
Technical data of Pneumatic Hose Fittings:

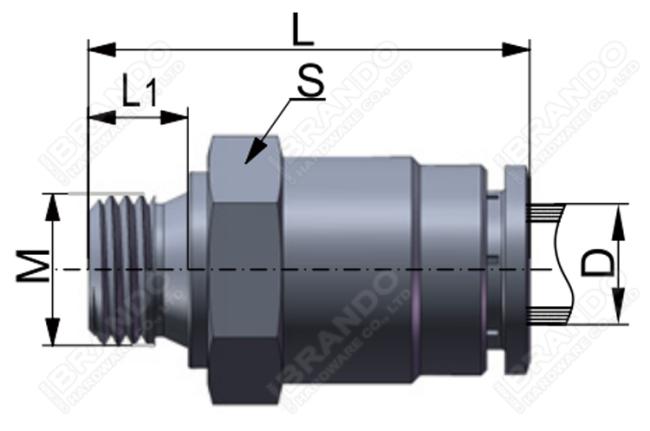

Specifications of Male Straight Brass Pneumatic Hose Fittings:
|
Model No
|
D
|
M
|
L1
|
L
|
S
|
|
BCKH-Z2.5
|
4
|
M5X0.8
|
6
|
25
|
12
|
|
M6X1
|
6
|
25
|
12
|
||
|
M8X1
|
7
|
23
|
12
|
||
|
G1/8''
|
6
|
22
|
12
|
||
|
BCKH-Z4
|
6
|
M8X1
|
7
|
28
|
13
|
|
M10X1
|
7
|
25
|
13
|
||
|
G1/8''
|
6
|
27
|
12
|
||
|
G1/4''
|
8
|
26
|
14
|
||
|
BCKH-Z6
|
8
|
M10X1
|
7
|
28
|
14
|
|
G1/8''
|
6
|
27
|
14
|
||
|
G1/4''
|
8
|
27
|
14
|
||
|
G3/8''
|
9
|
26
|
17
|
||
|
BCKH-Z8
|
10
|
M12X1.25
|
9
|
32
|
16
|
|
G1/8''
|
6
|
29
|
16
|
||
|
G1/4''
|
8
|
31
|
16
|
||
|
G3/8''
|
9
|
29
|
17
|
||
|
G1/2''
|
10
|
26
|
22
|
||
|
BCKH-Z10
|
12
|
M16X1.5
|
10
|
31
|
19
|
|
G1/4''
|
8
|
32
|
19
|
||
|
G3/8''
|
9
|
31
|
19
|
||
|
G1/2''
|
10
|
31
|
22
|
Product Video of BRANDO Brass Pneumatic Hose Fittings:
List of All Push To Connect Brass Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
