2V025-06 Airtac Type Water Air Solenoid Valve 1/8'' DC12V DC24V AC110V AC220V
2V025-06 Airtac Type Pneumatic Solenoid Valve 2V025-06-DC24V 2V025-1/8
This is 2V025-06 solenoid valve, 1/8'' port, 2.5mm orifice, 0 to 10 bar, plunger direct acting, 2 way normally closed, aluminum alloy body, NBR standard seal, can be customized as EPDM or FKM seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc, small and compact structure, high sensibility allows it to change direction quickly.
Technical Data:
|
Model No
|
2V025-06
|
2V025-08
|
|
Working Media
|
Air, Water, Gas, Liquid, Light Oil, etc
|
|
|
Operation
|
Direct Acting
|
|
|
Function
|
2 Way Normally Closed
|
|
|
Orifice Size
|
2.5mm
|
|
|
Cv
|
0.23
|
0.25
|
|
Port Size
|
1/8''
|
1/4''
|
|
Viscosity Limit
|
Under 20CST
|
|
|
Pressure Range
|
0 to 1 MPa (0 to 145psi)
|
|
|
Proof Pressure
|
1.5 MPa (215psi)
|
|
|
Body Material
|
Aluminum Alloy
|
|
|
Seal Material
|
NBR (Standard), EPDM, FKM (Optional)
|
|
|
Activating Time
|
0.05 sec and below
|
|

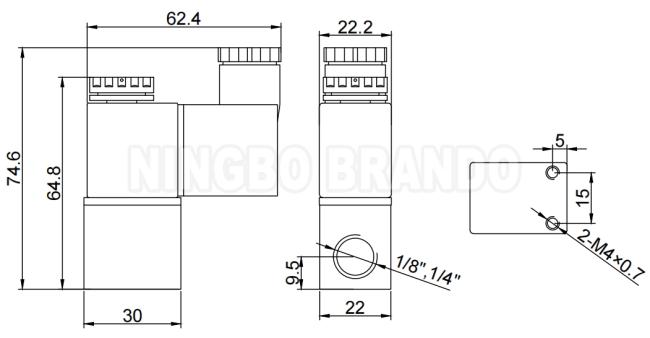

Main Dimension:

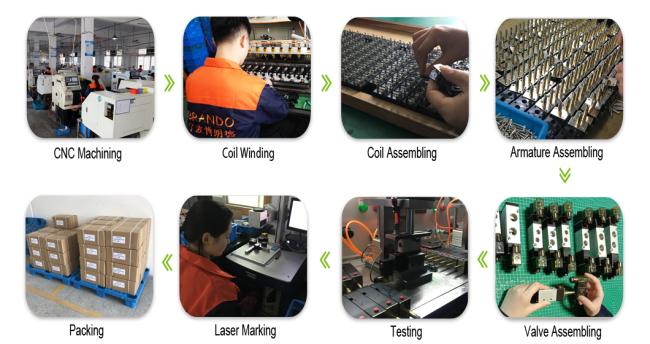

Our Production:
Related Products:
 |
 |
 |
 |
 |

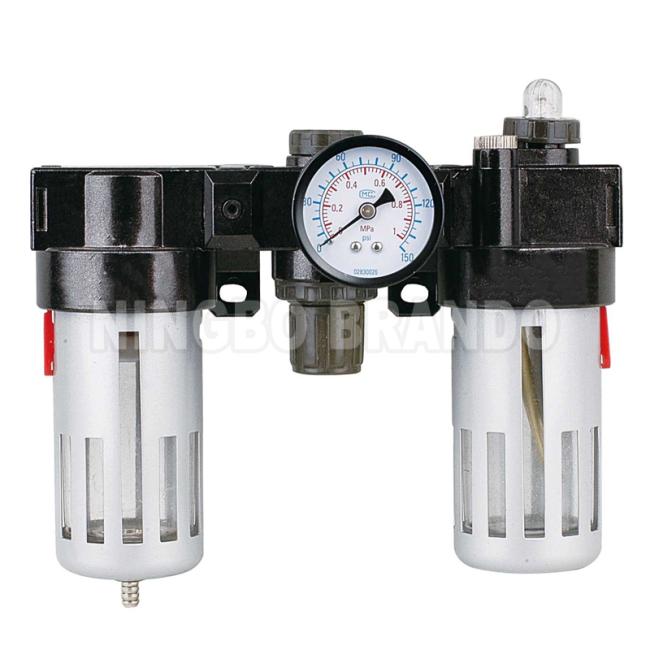

| Pneumatic Valve | Pneumatic FRL | Pneumatic Cylinder | Pneumatic Fitting | Pneumatic Tube |
