3V1-M5 Airtac Type Pneumatic Solenoid Valve 3/2 Way 12V 24V 110V 220V
3V1-M5 Airtac Type Pneumatic Solenoid Valve 3/2 Way 12V 24V 110V 220V
Product Features:
1. 3V1 solenoid valve are an effective way to convert electrical signals into pneumatic functions. Applying power to the solenoid valve can quickly direct air through the valve into the circuit. The solenoid valve can be designated as an internal pilot or an external pilot. The external pilot valve uses an external air pressure source. Internal driving uses an internal air pressure source.
2. It has good security, applicability and light weight. It is very durable and has a long service life. It has perfect electrical drive pneumatic power control. Multiple valves can be connected in series to save installation space. The coupling requires a coupling screw assembly.
Technical Data of 3V1 Series Pneumatic Solenoid Valves:
| Model | 3V1-M5 | 3V1-06 | 3V1-08 |
| Medium | Air (to be filtered by 40 μ m filter element) | ||
| Action | Direct Acting | ||
| Way & Position | 3 Port 2 Position | ||
| Port Size | M5 | 1/8'' | 1/4'' |
| Orifice Size | 1.0mm | ||
| Pressure Range | 0 to 0.8MPa | ||
| Max. Resistance Pressure | 1.2 MPa | ||
| Coil Voltage | 12VDC, 24VDC, 110VAC, 220VAC | ||
| Coil Power | AC: 5.5VA, DC: 4.8W | ||
| Max. Frequency | 10 cycle/sec | ||

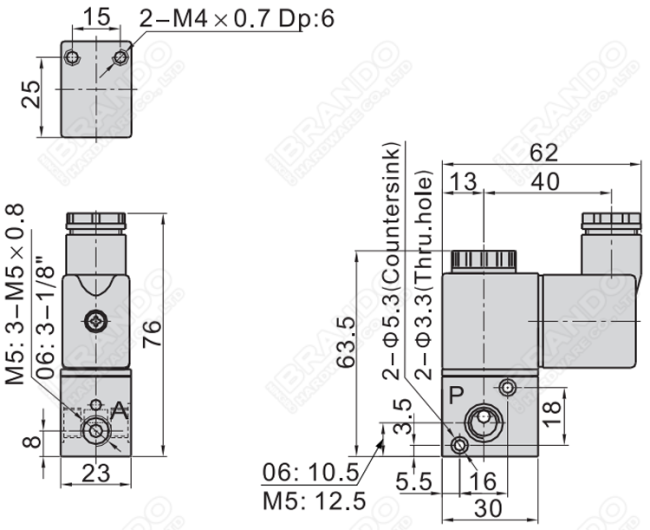

Dimension of 3V1-M5 Pneumatic Solenoid Valve:
Production Video of Pneumatic Solenoid Valves:
