3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V

3V1-08 3 Way Pneumatic Air Solenoid Valve 1/4'' 12V 24V 110V 220V

Installation instructions
1. Before installing, be sure the valve has not been damaged via transportation.
2. Its suggested to use the medium lubricated by 40μm filter element.
3. Be aware of the flow direction and port size.
4. Please notice whether the installation condition accords with technical requirements (such as voltage, actuation frequency, working pressure and scope of application temperature), then the equipment can be installed and used.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean.
7. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
8. To keep the dust away, please use the silencer for the exhaust ports.
9. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
10. After installing, please use the manual override to test valve first.

Technical Data of 3V1 Series Pneumatic Solenoid Valves:

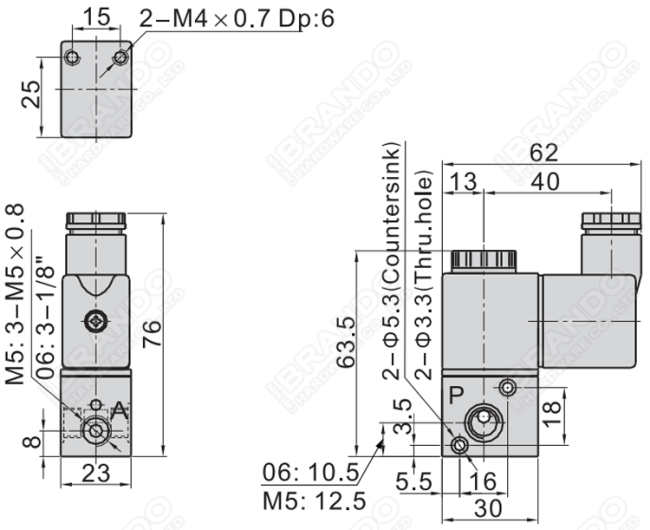

Dimension of 3V1 Series Pneumatic Solenoid Valve:

Production Video of Pneumatic Solenoid Valves:
