4R210-08 Airtac Type Hand Push Pull Pneumatic Air Valve 5/2 Way
4R210-08 Airtac Type Hand Push Pull Pneumatic Air Valve 5/2 Way
The Airtac type 4R series push pull air control valve is a functional replacement for the SMC VZM500 series.
Product Features:
1. Manual control valve, same direction with the spool. Easy control, precise and reliability.
2. Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing
3. Special surface finishing in inner surface. Low friction, low pressure starting, durable
4. Lubrication is not necessary
5. Multi mounting position, easy to fix
Technical Data of 4R series Push Pull Valve:
| Model | 4R110-06 | 4R210-06 | 4R210-08 | 4R310-08 | 4R310-10 |
| Fluid | Air (to be filtered by 40μm filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | ||
| Orifice Size (Cv) |
10.2mm² (Cv=0.6) |
4L210-08: 17.0mm² (Cv=1.0) |
4L310-10: 28.0mm² (Cv=1.65) |
||
| Valve Type | 5/2 Way | ||||
| Pressure Range | 0 to 1.0MPa (0 to 145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -20 to +70℃ | ||||
| Body Material | Aluminum Alloy | ||||
Ordering Code of 4R series Push Pull Valve:

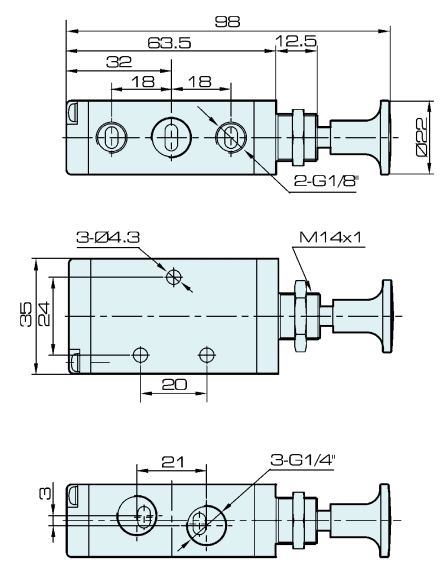

Dimension of 4R210-08 Push Pull Valve:
Inner Structure of 4R series Push Pull Valve:
