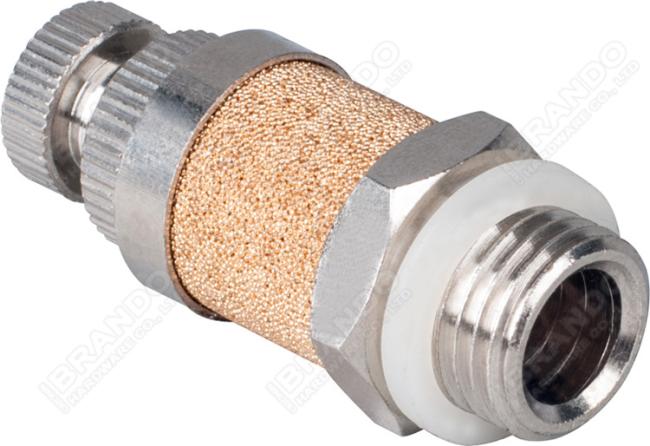

Adjustable Pneumatic Throttle Valve With Silencer Sintered Bronze
Adjustable Pneumatic Throttle Valve With Silencer Sintered Bronze

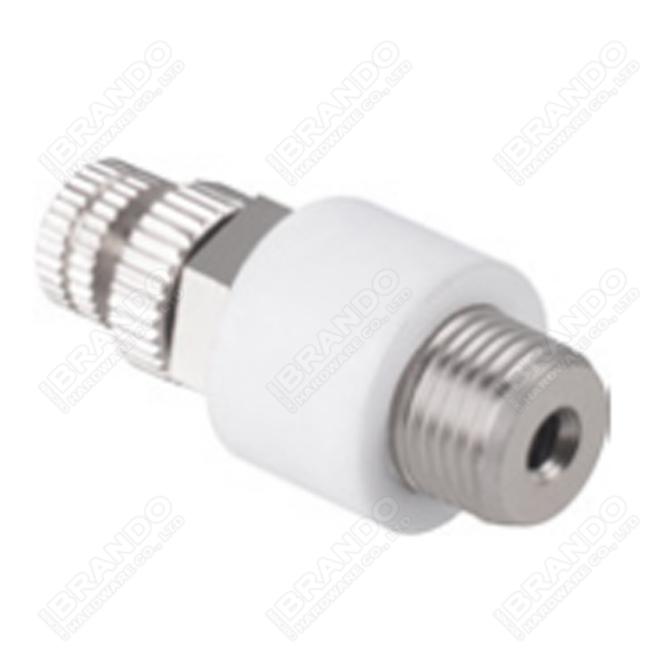

Pneumatic silencer throttle valve:
Throttle valves are commonly included with silencers and are commonly just called adjustable pneumatic silencers or flow control silencers. Adjustable pneumatic silencers are an inexpensive method for pneumatic flow control to control the speed at which air exits the valve. For example, by controlling the exhaust speed of a pneumatic cylinder you can control how quickly the piston is able to extend and/or retract. The flow rate of air is typically adjusted by rotating a knob to change the flow speed, like a needle valve. The position of the screw will increase or decrease the size of the valve orifice and thus adjust the flowrate of the air exiting the valve.
Technical data of Pneumatic Silencer Muffler:
|
Model
|
Working Medium
|
Working Pressure
(MPa)
|
Working Temp
(℃)
|
Circulation Capacity
|
Noise Effect
|
|
|
"S" data
|
Nominal Flux
|
|||||
|
-2.5
|
Compressed Air
|
0 to 0.8
|
-10 to +250
|
5
|
200L/Min
|
≥20dB
|
|
-6
|
20
|
960L/Min
|
||||
|
-8
|
40
|
1920L/Min
|
||||
|
-10
|
60
|
2880L/Min
|
||||
|
-15
|
110
|
5280L/Min
|
||||
|
-20
|
190
|
9120L/Min
|
||||
|
-25
|
300
|
10000L/Min
|
||||
|
-32
|
400
|
19200L/Min
|
≥25dB
|
|||
|
-40
|
650
|
31200L/Min
|
||||
|
-55
|
700
|
33600L/Min
|
||||

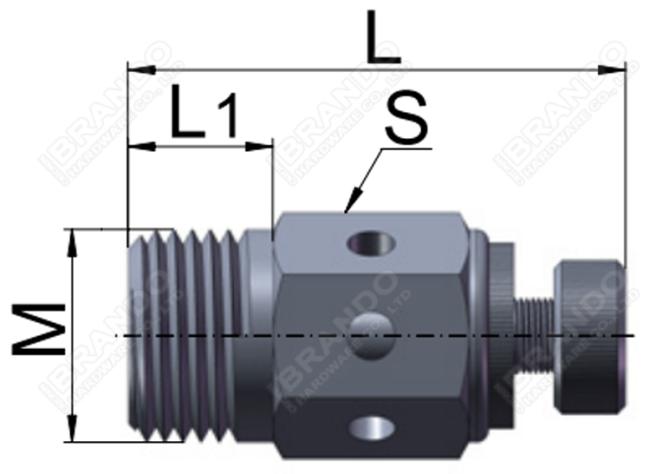

Dimension of Pneumatic Silencer Muffler:
|
Model No
|
M
|
L1
|
L
|
S
|
|
C-6
|
G1/8''
|
7
|
33
|
13
|
|
C-8
|
G1/4''
|
8
|
38
|
14
|
|
C-10
|
G3/8''
|
10
|
43
|
17
|
|
C-15
|
G1/2''
|
11
|
49
|
22
|
|
C-20
|
G3/4'
|
14
|
60
|
27
|
|
C-25
|
G1''
|
14
|
70
|
34
|
List of other Brass Pneumatic Air Muffler:
 |
 |
 |
 |

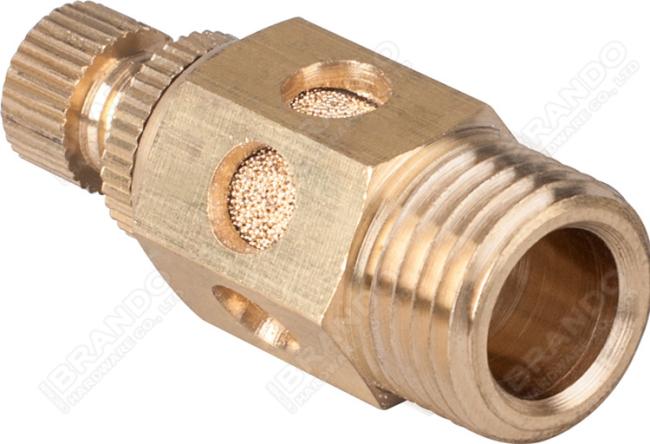

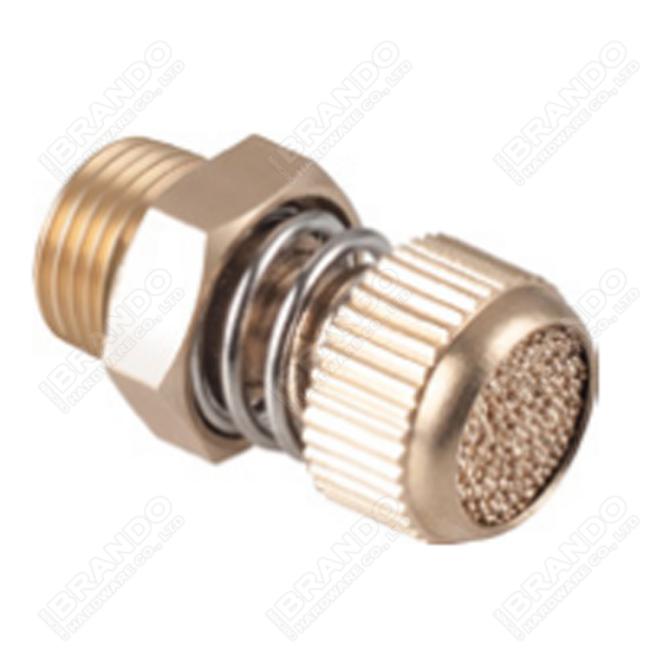

| Throttle Valve | C Type Throttle Valve | PTV Throttle Valve | SD Timing Muffler |
 |
 |
 |
 |

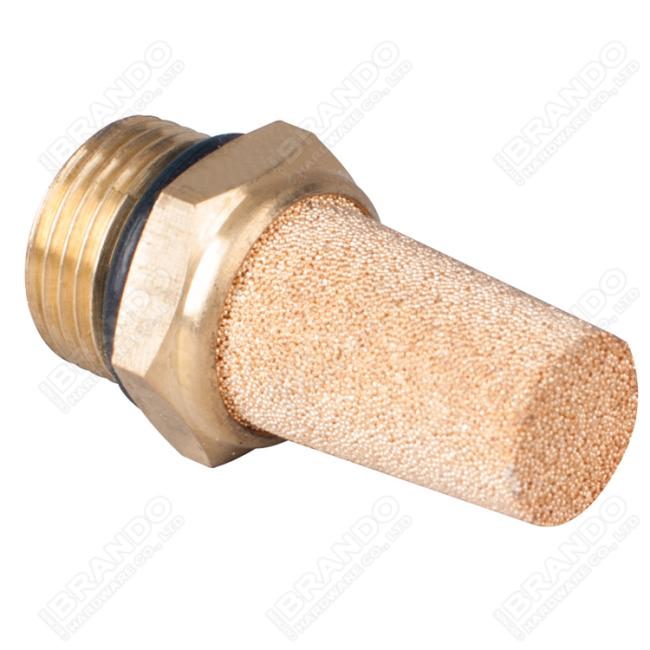

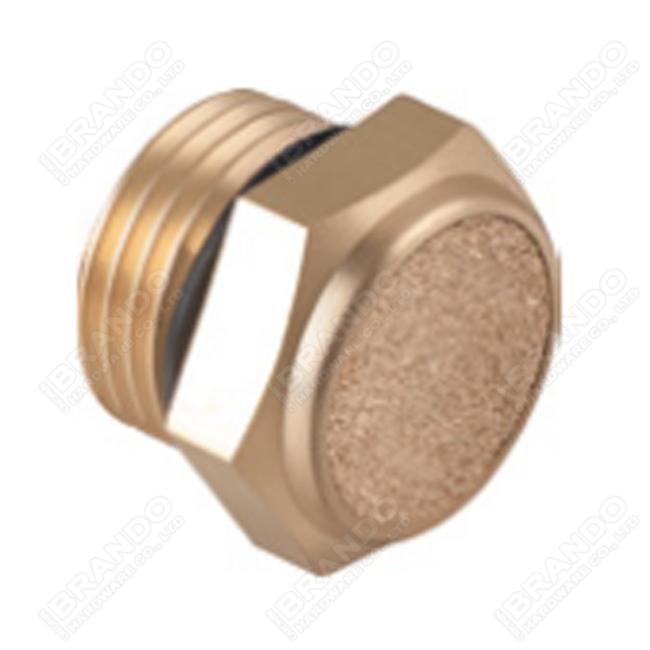

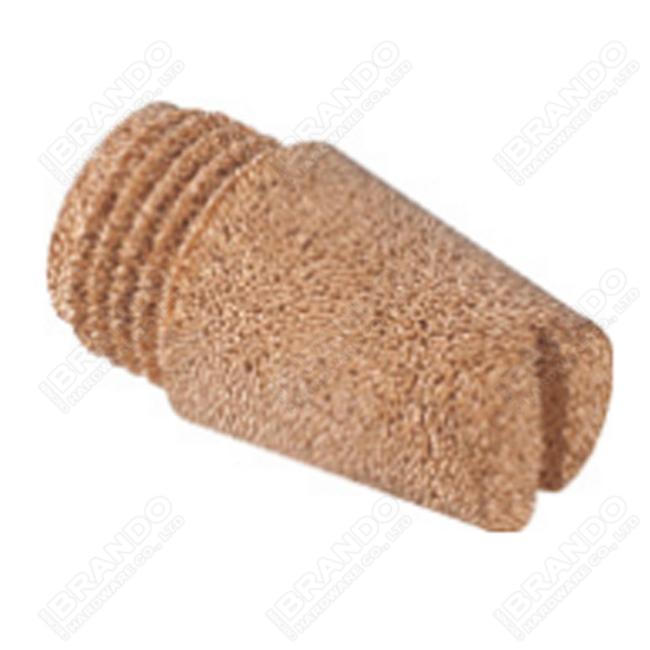

| Muffler (Sintered) | Muffler (Flat Head) | LM Aluminous Muffler | G Type Muffler |
 |
 |
 |
 |

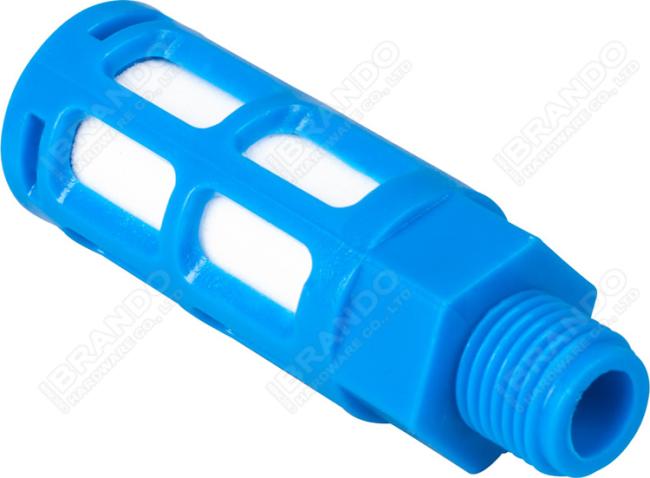

| D Type Muffler | E Type Muffler | PSU Plastic Muffler | SU Plastic Muffler |
More Pneumatic Products for you to choose:

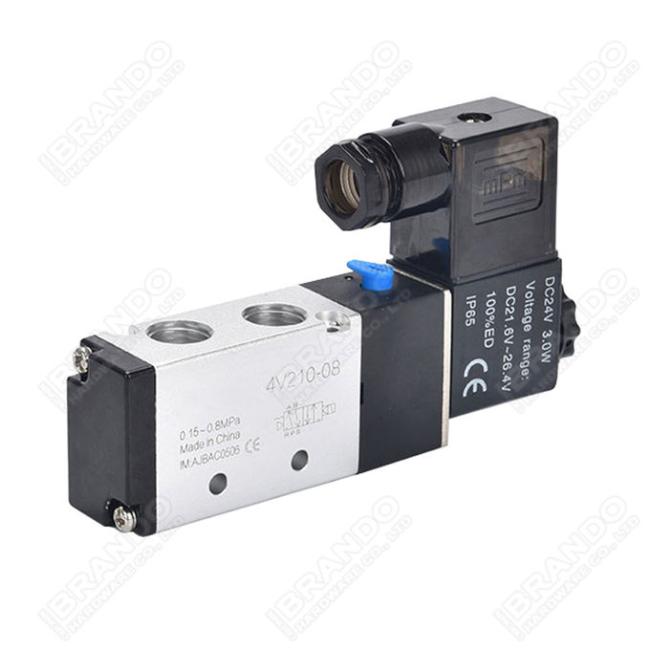

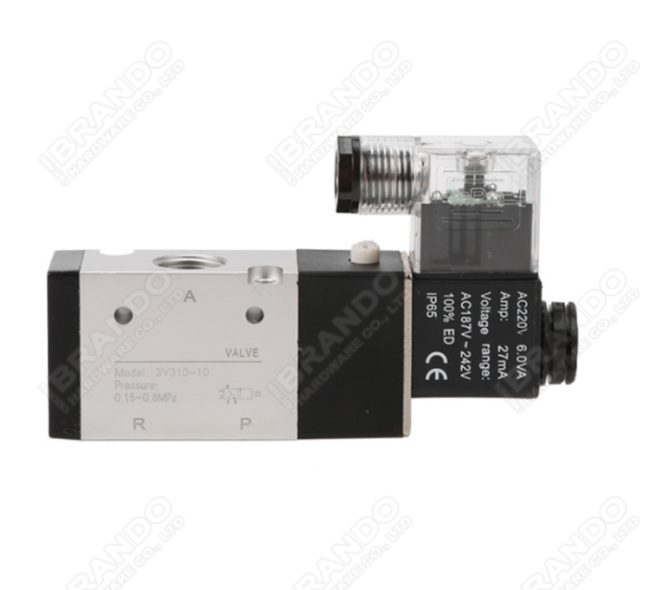

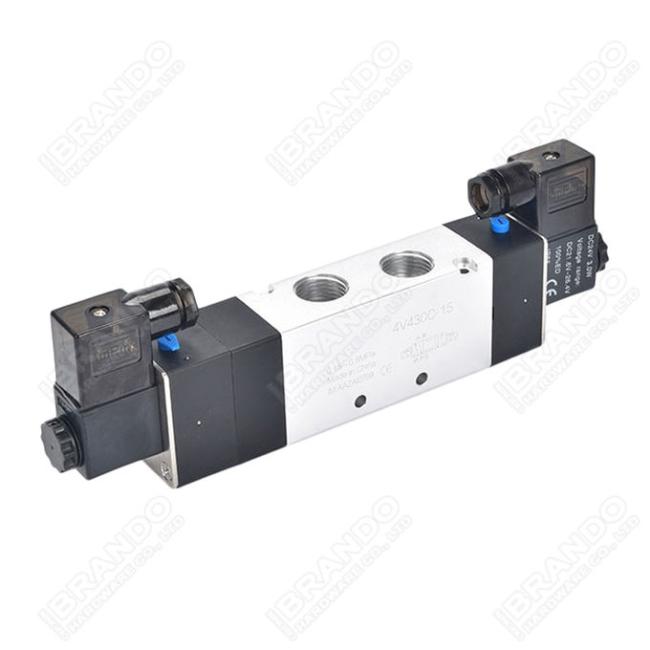

| 2/2 Way Pneumatic Valve | 3/2 Way Pneumatic Valve | 5/2 Way Pneumatic Valve | 5/3 Way Pneumatic Valve |
 |
 |
 |
 |

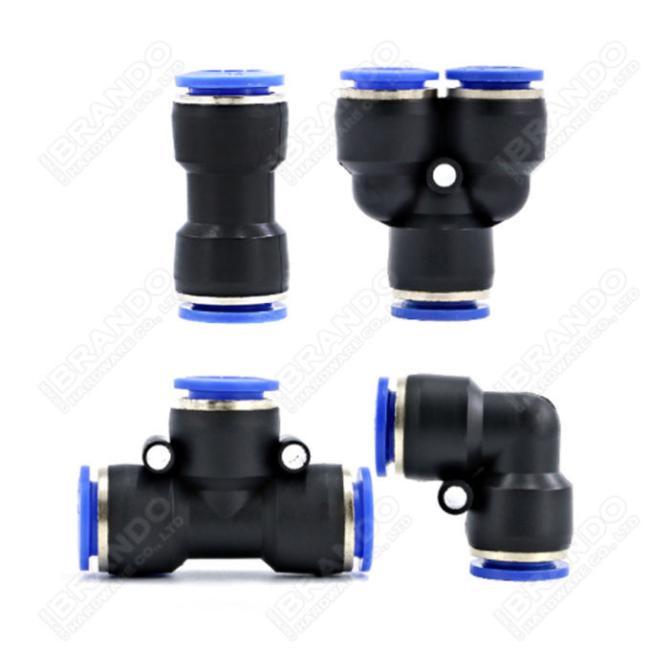

| Namur Solenoid Valve | Air Filter Regulator Lubricator | Pneumatic Cylinder | Silcencers And Fittings |
 |
 |
 |
|
