Goyen Type CA45FS 1 1/2'' Pulse Jet Valve Flanged Inlet FS Series
Goyen Type CA45FS 1 1/2'' Pulse Jet Valve Flanged Inlet FS Series
The Goyen Type CA45FS is a fs series pulse jet valve with a flanged inlet port and slide seal outlet port. Equipped with Shockwavespringless diaphragm. The 4 series valves are available as remote pilot valves and may be converted to integral pilot using either the RCA3DM or RCA3PV screw-in pilots. Outlet is at 90°to inlet. The FS valve range features a larger diameter inlet providing higher performance than the DD.T or ST body styles.
Specification of FS Series Pulse Jet Valves:
|
Model Number
|
CAC25FS
|
CA45FS
|
|
Port Size
|
1''
|
1.5''
|
|
Valve Structure
|
Right Angle, Flanged Port
|
|
|
Working Pressure Range
|
0.35 to 0.85 Mpa
|
|
|
Coil Voltage
|
24VAC, 110VAC, 220VAC, 24VDC
|
|
|
Valve Body Material
|
Aluminium Alloy
|
|
|
Diaphragm Material
|
NBR, FKM, EPDM
|
|
Main Dimension of CA45FS Solenoid Pulse Jet Valve:

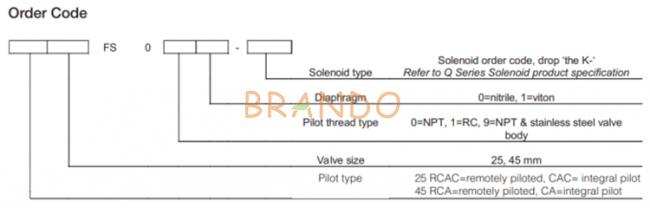

Ordering Code of FS Series Pulse Jet Valve:
Video of Goyen Type CA45FS Pulse Jet Valve:
