Irrigation Solenoid Valve 220VAC
Irrigation Solenoid Valve 3/4'' 1'' 1 1/4'' 1 1/2'' 12VDC 24VDC 24VAC 110VAC 220VAC
A water irrigation solenoid valve is an electrically controlled valve to regulate the flow of water. By applying a voltage over the coil, the valve opens and the liquid can flow through. They have a robust construction and are optionally equipped with manual flow control, so the desired flow can be adjusted. Most models have an override function, the valve can be opened manually if needed. Furthermore, they are equipped with a dirt particle filter. Our irrigation solenoid valves are available with a wide selection of control voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC.
Product Video of Irrigation Solenoid Valve:
Technical Data of Irrigation Solenoid Valve:
|
Model No
|
GG10
|
GG15
|
GG20
|
GG25
|
GG20-M
|
GG25-M
|
GG32-M
|
GG40-M
|
|
Manual Flow Regulator
|
Without
|
With
|
||||||
|
Orifice Size
|
10
|
15
|
20
|
25
|
20
|
25
|
32
|
40
|
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1''
|
3/4''
|
1''
|
1 1/4''
|
1 1/2''
|
|
Max. Flow Range
|
2m³/h
|
3m³/h
|
5m³/h
|
9m³/h
|
5m³/h
|
9m³/h
|
15m³/h
|
21m³/h
|
|
Working Pressure Range
|
1 to 10 bar
|
|||||||
|
Coil Voltage
|
Standard Coil: 220VAC, 110VAC, 24VAC (50/60Hz), 24VDC, 12VDC, 9VDC (Optional)
Latching Coil: DC9-20V, Pulse Width (20 to 500mSec)
|
|||||||
|
Body Material
|
Plastic (Nylon)
|
|||||||
|
Diaphragm Material
|
NBR (Standard), EPDM (Optional)
|
|||||||
|
Operation
|
Diaphragm Pilot Operated
|
|||||||

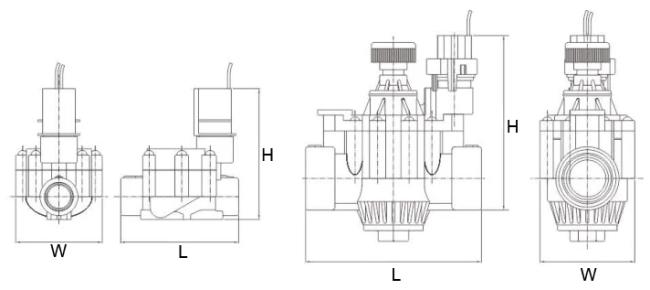

Main Dimension of Irrigation Solenoid Valve:
|
Model Number
|
L
|
W
|
H
|
|
Without manual flow regulator
|
|||
|
GG10
|
74mm
|
40mm
|
102mm
|
|
GG15
|
76mm
|
40mm
|
104mm
|
|
GG20
|
115mm
|
83mm
|
123mm
|
|
GG25
|
115mm
|
84mm
|
125mm
|
|
With manual flow regulator
|
|||
|
GG20-M
|
114mm
|
83mm
|
133mm
|
|
GG25-M
|
115mm
|
84mm
|
135mm
|
|
GG32-M
|
135mm
|
96mm
|
156mm
|
|
GG40-M
|
136mm
|
97mm
|
167mm
|
