40M Arched Roof Outdoor Exhibition Tents With 8M Side Height And Glass Wall For Asia Show
40 M x 100 M Arched Roof Outdoor Exhibition Tents With Glass Wall For Asia Show
1. Application of 40 M x 100 M Arched Roof Outdoor Exhibition Tents With Glass Wall For Asia Showt :

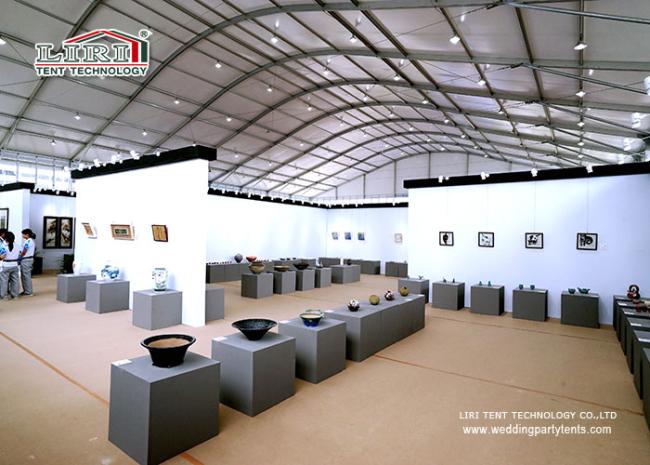

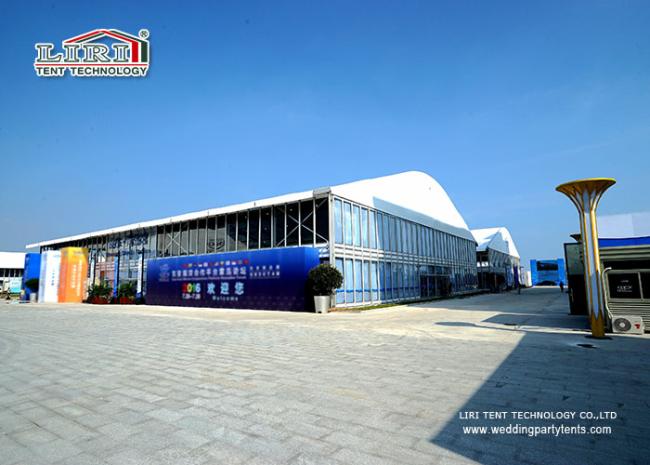

As for 40 M x 100 M Arched Roof Outdoor Exhibition Tents With Glass Wall For Asia Show , it is popular for kinds of big exhibition , Trade Show, since it is special arched roof , but main important reason is our arched roof tent with 8m side height , it is enough height for kinds of shows. In addition , this tents are available various accessories, ABS hard wall, Glass Wall, Glass door and so on. Besides, this tent is a successful project for Asia Show in Qingdao
2. Specification for the Outdoor Exhibition Tents ( ATHseries ) :
Main frame profile size for BT series: 204X120X4 mm
Wind load : 100 km/h
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length .
Tent Roof Type |
Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m |
5m |
3. Materials of Outdoor Exhibition Tents:
Fabric : Double PVC coated polyester fabric, 750 g/sqm - 900 g/sqm , water proof , UV resistance , fire retardant according to standard NFPA701 , CFM & DIN4102 B1/M2
Frame : Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Connections: Hot-DIP galvanized
6. Specifications of Our Outdoor Exhibition Tents
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
6.Certificates of Our Outdoor Exhibition Tents
National High-tech Enterprises
ISO 9001:2008 Quality Control Standards
IFAI Certificate of Membership
American Rental Association Associate Membership
Practical Type Patent Certificate
Liri Tents Trade Mark Certificate
aluminum frame packed in membrane film
hardware packed in solid carton box
roof and sidewall in professional PVC carry bag
