Luxury Waterproof High Peak Wedding Marquee with Glass Walls 20x30m
Price:
USD50-80/sqm
MOQ:
200 sqm
Delivery Time:
30days after payment
Brand:
liri tent
Product Description

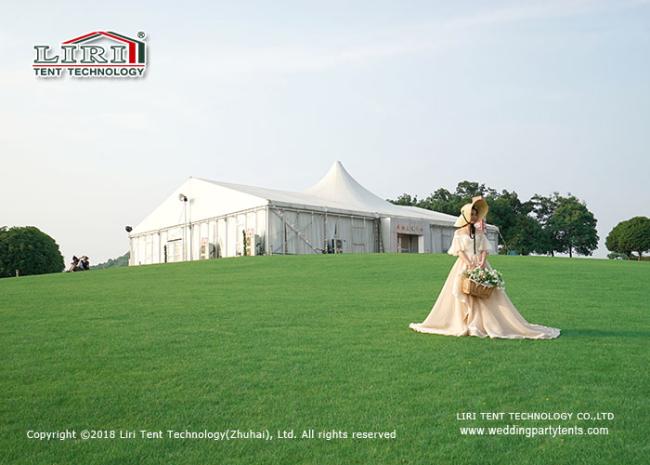

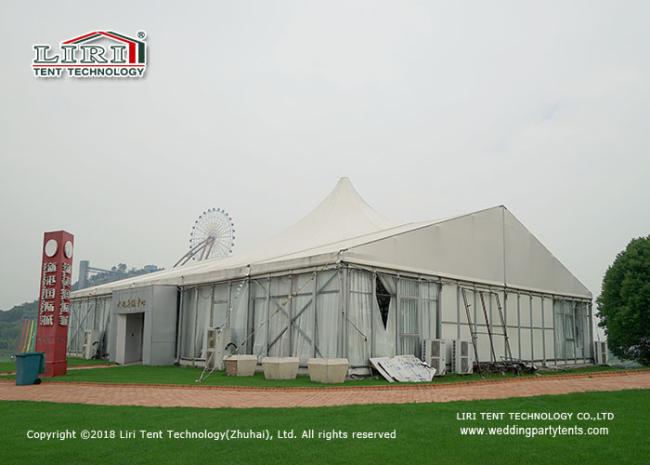

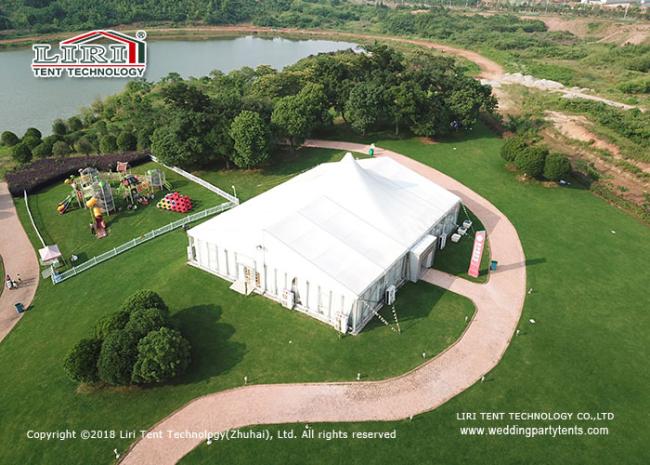

20x30m Luxury High Peak Wedding Marquee with Glass Walls for Sale
Liri ET Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| ET | 8m/26.2' | 5m/16.4' | 3.3m | 4.53m | 152x119x3mm(4-channel) |
| ET | 10m/32.8' | 5m/16.4' | 3.3m | 4.85m | 152x119x3mm(4-channel) |
| ET | 12m/39.4' | 5m/16.4' | 3.3m | 5.16m | 152x119x3mm(4-channel) |
| ET | 15m/49.2' | 5m/16.4' | 3.3m | 5.62m | 152x119x3mm(4-channel) |
| ET | 16m/52.5' | 5m/16.4' | 3.3m | 5.72m | 152x119x3mm(4-channel) |
| ET | 18m/59' | 5m/16.4' | 3.3m | 6.01m | 152x119x3mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | |||||
- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
Certificates:
ISO 9001: 2008 (01100056824), IFAI, NEPA, CFM, DIN 4102 B1, M2, Engineer Notarization etc.
Optional accessories:
PVC window sidewalls
Transparent PVC
Wooden floor
Sandwich walling
ABS Walling
Glass Walling, glass door
Decoration lining and Curtain
Glass door units
PVC fabric rolling door
Ramp
Ground anchor and Anchor puller
Weight plate
Rain gutter
Rack for transportation
| Tent Roof Type | Span Width | Bay Distance | Eave Height |
| "A" Shape | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Domelike | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve Shape | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Cube Structure | 10m~30m | 5m | 5m |
Technical data
Dimension |
Clear Span | Eave Height | Ridge Height | Bay Distance |
| BT10 | 10m | 4m | 5.53m | 5m |
| BT 12 | 12m | 4m | 5.83m | 5m |
| BT 15 | 15m | 4m | 6.3m | 5m |
| BT 18 | 18m | 4m | 7.06m | 5m |
| BT20 | 20m | 4m | 7.1m | 5m |
| BT21 | 21m | 4m | 7.25m | 5m |
| BT25 | 25m | 4m | 7.88m | 5m |
| Length | No limitation | |||
| Main Structure Profile | 204*120*4mm | |||
