Lithium Battery Vibration Pen HG6410 For Measuring Periodic Motion
Measuring periodic motion, to check the imbalance and deflecting of moving machinery Vibration Pen HG6410

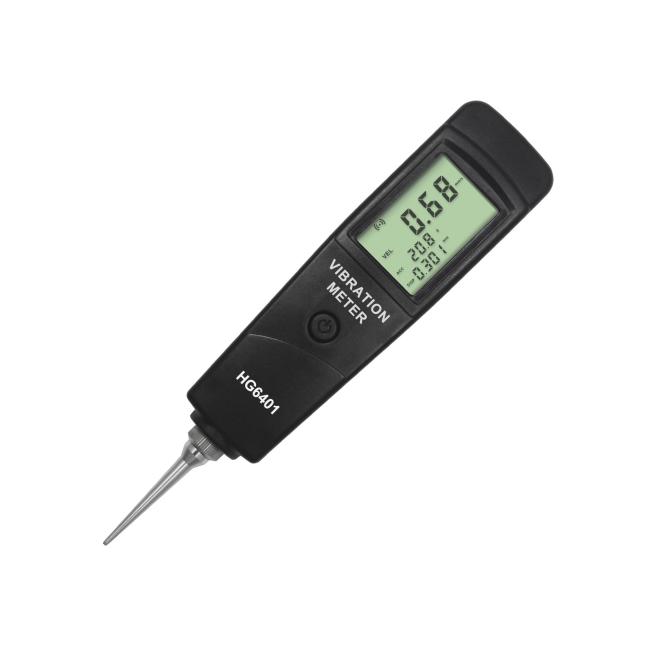

Vibration Pen HG6410
Application
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Features
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* With Max Hold function.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration Standard
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
Specification
| Sensor | Piezoelectric Transducer | |
| Measuring Range | Acceleration | 0.1~300m/s² Equivalent Peak 985ft/s² |
| Velocity | 0.01~300mm/s True RMS 0.000~13.0inch/s | |
| Displacement | 0.001~3.000 mm 0.04~120.0 mil Equivalent Peak-peak | |
| Frequency Range | Acceleration | 10Hz~10kHz |
| Velocity | 10Hz~1kHz | |
| Displacement | 10Hz~1kHz | |
| Accuracy | 10% of Reading+2 digits | |
| Metric/Imperial Conversion | √ | |
| Max.Value Hold | √ | |
| Power Off | Manual Power Off or Auto Power Off | |
| Data Output | USB,RS-232 | |
| Operating Conditions | Temp:0~50ºC Humidity:<90%RH | |
| Power Supply | Lithium Battery | |
| Dimensions | 202x43x23 mm(8.0x1.7x0.9 inch) | |
| Weight | 130g(Including Batteries) | |
| Standard Accessories | Main Unit | |
| Carrying Case | ||
| Manual Book | ||
| Optional Accessories | RS-232 Data Cable with Software | |
| Bluetooth Data Adapter with Software | ||
