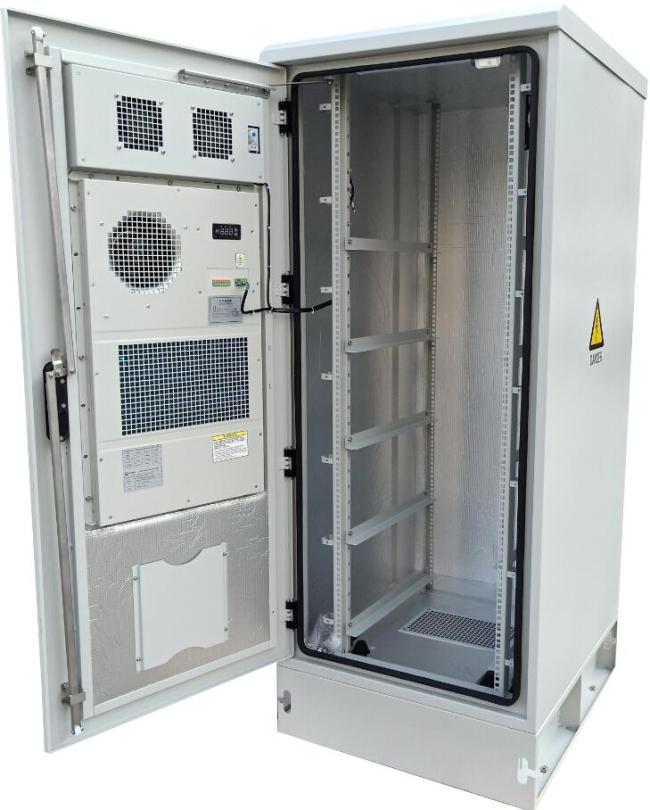

IP55 Waterproof Outdoor Telecom Cabinet 34U 19Inch With Air Conditioner
IP55 Waterproof Outdoor Telecom Cabinet 34U 19Inch With Air Conditioner
Introduction
Outdoor communication cabinet is a kind of outdoor cabinet, which is directly under the influence of natural climate, made of metal or nonmetal materials, and does not allow unauthorized operators to enter the cabinet. It provides outdoor physical working environment and security system for wireless communication stations or wired network station workstations.
Features
● Material: galvanized steel or according to customer requirements.
● Cooling system: air conditioner and fan
● Protection grade: IP55, waterproof and dustproof. .
● Adopt imported sealing tape, waterproof design and air filter device to realize efficient protection.
● The cabinet is specially designed to prevent man-made damage and earthquake damage.
● All lamps are in cabinets to provide a safe solution.
● Equipment space: front/rear 19-inch mounting rail and lithium battery storage space.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET11721758518534 |
| Protection Level | IP55 | |
| External Dimension | H1850mm×W750mm×D850mm | |
| Internal Dimension | 19 inch rail,34U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Air conditioner, cooling capacity: 2000W, Input voltage: 220VAC 50HZ | |
| Fan, 2×12038 220VAC | ||
| Others | 48VDC LED lamp for illumination | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Cabinet Diagram

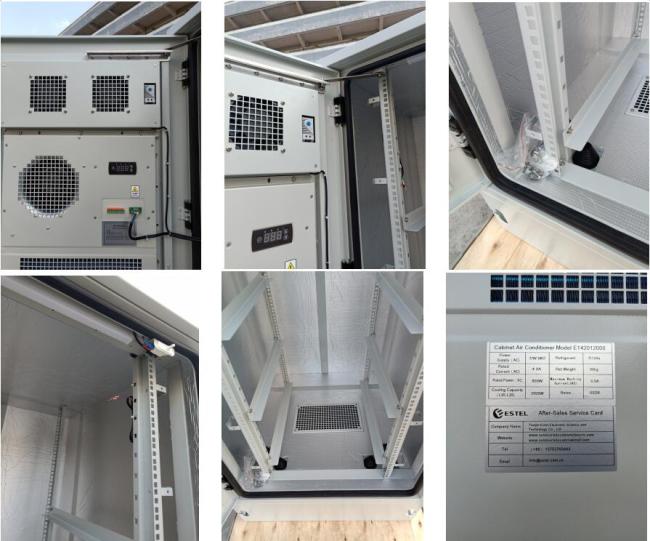

Cabinet Details
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
