Waterproof IP55 42U Insulated Powder Coating Outdoor Telecom Cabinet With DC48V Inverter Air Conditioner
1. Brief Introduction
ESTEL is a professional manufacturer in supplying heavy duty outdoor 19” racks& cabinets for telecommunications and other industry.
ESTEL offers a wide variety of styles and configurations to meet the needs of every application. From standard, off-the-shelf models to completely custom and integrated outdoor rack telecom enclosures, our product are engineered, fabricated and assembled in our facility.
To meet exact customer specifications, our outdoor telecom rack’s, electronic, are avaliable in aluminum, galvanized steel and stainless steel, and can be finished in powder coating.
2. Features
2.1 The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment.
2.2 The cabinet cooling uses DC48V 1500W compressor inverter air conditioner.
2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.
2.4 Including two door sensor, one is used for LED lamp on/off, other one is used for open door alarm.
2.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.
2.6 All the screws&nuts are stainless steel material. Enhanced the corrosion resistance of the cabinet.
3. Technical Specs
| Item | Type | Technical Parameter |
| Structure | Size |
External Size: W*D*H 900*900*2200mm
|
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 42U | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with 40mm insulation | |
| Ingress Protection | IP55 | |
| Surface treatment | Powder coating | |
| Color | Grey RAL 7035 | |
| Temperature Control | Cooling | DC48V 1500W Air Conditioner |
| Lighting | LED lamp | DC48V LED lamps |
| Power Distribution | Power Distribution Unit |
DC output MCB 63A/1P*1 DC output MCB 32A/1P*1 DC output MCB 16A/1P*2 Support custom |
| Temperature | Operating temperature | -40°C ~ + 75°C |
| Storage temperature | -50°C ~ + 70°C | |
| Transport temperature | -50°C ~ + 70°C | |
| Humidity | Relative Humidity (RH) | 5%~99% |
| Air pressure | Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |
| Other characteristics | Flame retardance | Comply with GB5169.7 test A |
| Withstand voltage | ≥3000V(DC)/1min | |
| Insulation resistance | ≥2×104M/500V(DC) |

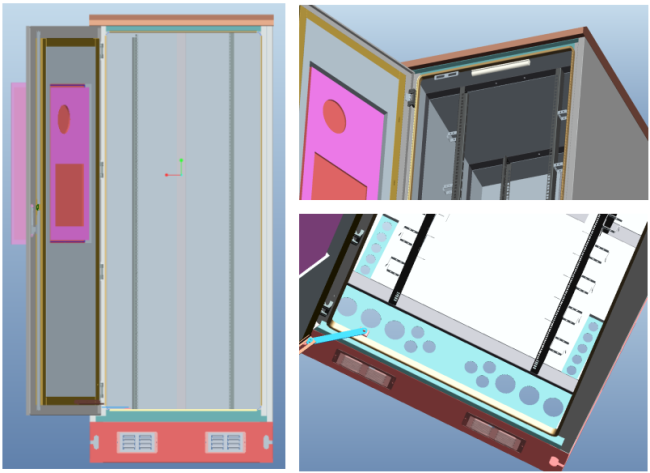

4. 3D Drawing

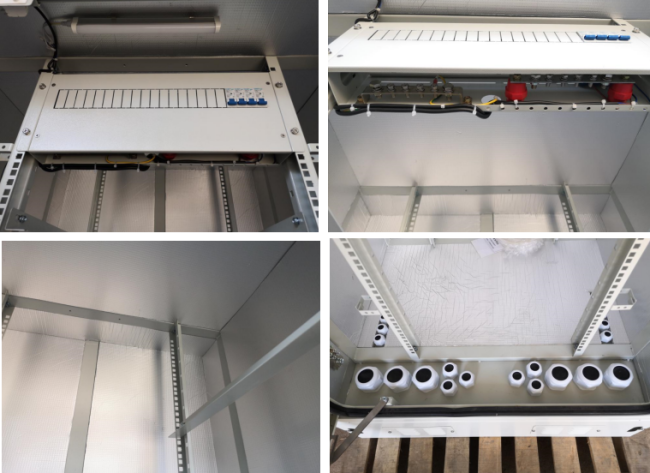

5. Cabinet Details

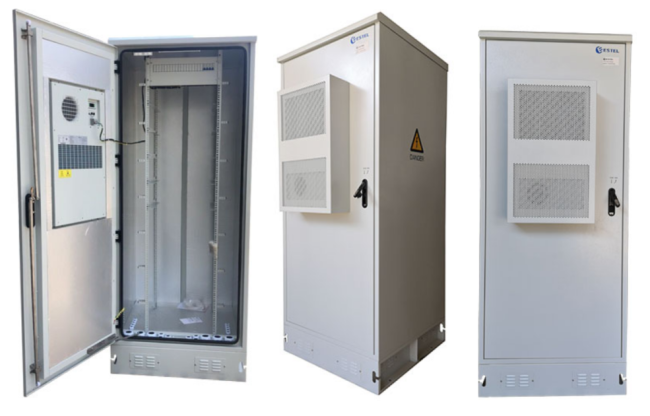

6. Telcom Cabinet Picture
7. Our Factory Show
8. Company Qualification Certificate
9. Some of our customers
