IP55 Outdoor Telecommunications Cabinet 32U 19 Inch Waterproof Electrical Cabinet
IP55 Waterproof Outdoor Telecommunications Cabinet 32U19 inch Electrical Cabinet
Introduction
The integrated communication cabinet is an industry development trend of integration, miniaturization, modularization of supporting components and energy saving and emission reduction of the main equipment of communication stations. It is a product designed to reduce the pressure of obtaining information from customer stations and meet the needs of customers in flexible expansion, rapid deployment and long-term evolution.
Application scenario
Communication cabinets are suitable for outdoor environments, such as those installed along highways, parks, rooftops, mountainous areas and flat areas. Base station equipment, power supply equipment, storage batteries, temperature control equipment, transmission equipment and other supporting equipment can be installed in the cabinets, or the installation space and heat exchange capacity for the above equipment can be reserved, which can provide reliable mechanical and environmental protection for the normal operation of internal equipment.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET11724757517532 |
| Protection Level | IP55 | |
| External Dimension | H1750mm×W750mm×D750mm | |
| Internal Dimension | 19 inch rail,32U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | AC air conditioner 1500W 220VAC 50HZ | |
| 12038 48VDC FAN 180CFM | ||
| Power Distribution Unit | Voltage | 200VAC～240VAC |
| Input | 2P 63A×1, SPD 60KA | |
| Output | 1P 16A×4 | |
| Output | 1P 16A×4 | |
| Sensors | Door sensor , water sensor, temperature and humidity sensor, smoke sensor | |
| Environment Monitoring Unit |
19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
|
| Others | 48VDC LED lamp for illumination | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Cabinet Diagram

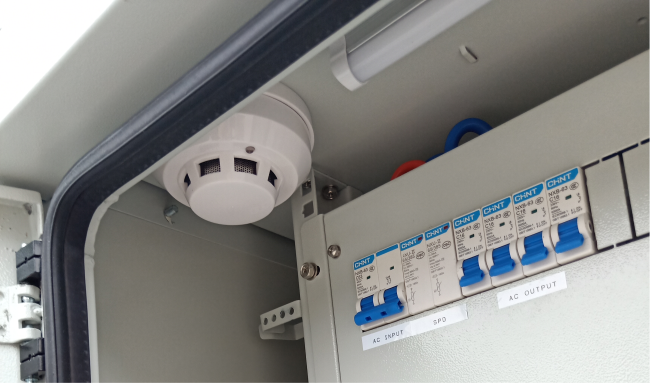

Cabinet Details
Advantages of outdoor telecom cabinet
(1)Direct sales from manufacturers to increase your profit margin
(2)Strict quality inspection and stable quality
(3)Provide various customized products
(4)Fast delivery, no worry about delivery time
(5)Perfect after-sales system
(6)ESTEL outdoor cabinet suitable for a variety of outdoor environments.
(7)Waterproof, Anti-corrosion, Durable
(8)High IP degree
(9)Variety material optional : Galvanized sheet ,Stainless Steel , Aluminum
(10)Variety cooling options to choose , Fans , Air condition ,Heat exchanger
(11)Floor mounting , wall mounting , pole mounting.
(12)Accept customized products.
(13)Provide inner equipment , include various sensors , power distribution box , monitor , battery , etc
