Floor Mounted Outdoor Equipment Cabinet Single Wall 20U Waterproof 19 Inch Rack
Single Wall 40U 19 Inch Rach Floor Mounted Outdoor Equipment Cabinet
1. Cabinet Features and Benifits
Flexibility:
- Wide range of thermal management options for even the most demanding heat dissipation needs allows for optimization of thermal performance and reduced energy costs
- Offers a wide range of configuration options providing maximum flexibility including optional integrated power plants, protection, site monitoring, and fiber patch panels
- Various accessories available including plinths, top hat cable entry compartments, laptop tray kits and sliding rack trays
- Offers ample room (16-44 RU) for electronics in the main chamber, with additional chamber options for added capacity that is separated for restricted access
- Support for carrier adds and site modifications
Economic
Specifically designed for Macro Cell Site and Centralized Radio Access Network (CRAN) applications, provides an economical alternative to shelter and hut deployments for protecting a wide range of radio and base station equipment
Installation Mounting
- Includes bolt-mounted lifting ears for placement by crane or other lifting equipment
- Optional composite mounting platforms reduce cost and deployment time compared to traditional concrete pad installations
Technician Friendly Features
Front and rear access doors allow technicians access to equipment storage areas and cable routing;Well organized cable management and routing makes for easy installation
Material Specification
Constructed of durable, welded aluminum
Environmental
Enclosures and thermal systems have a powder coated finish to withstand the elements and provide superior environmental protection
2. ETP111122909021020 Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2100mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U, the bottom cabin is 2 layers battery rack | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall thickness1.2mm | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner: 1000W,48VDC Fan :12038,48VDC |
| Power Distribution Unit |
B grade lighting proof AC Input: 63A/2P ×1; AC Output: 16A/1P×3; DC Output: 16A/1P×3. |
|
| Temperature Controller | 48V Fan Temperature Controller | |
| Lighting | 48VDC LED lamp | |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |

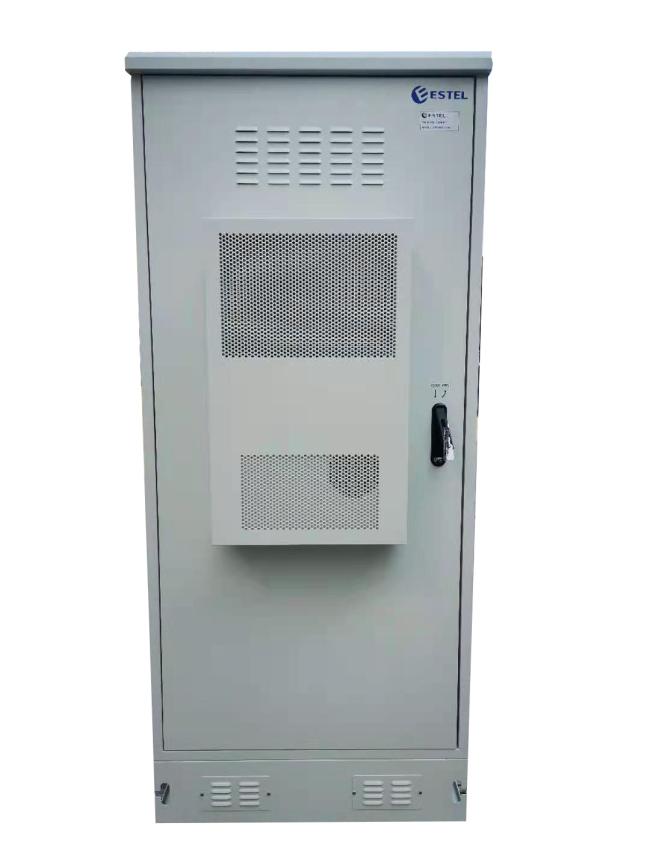

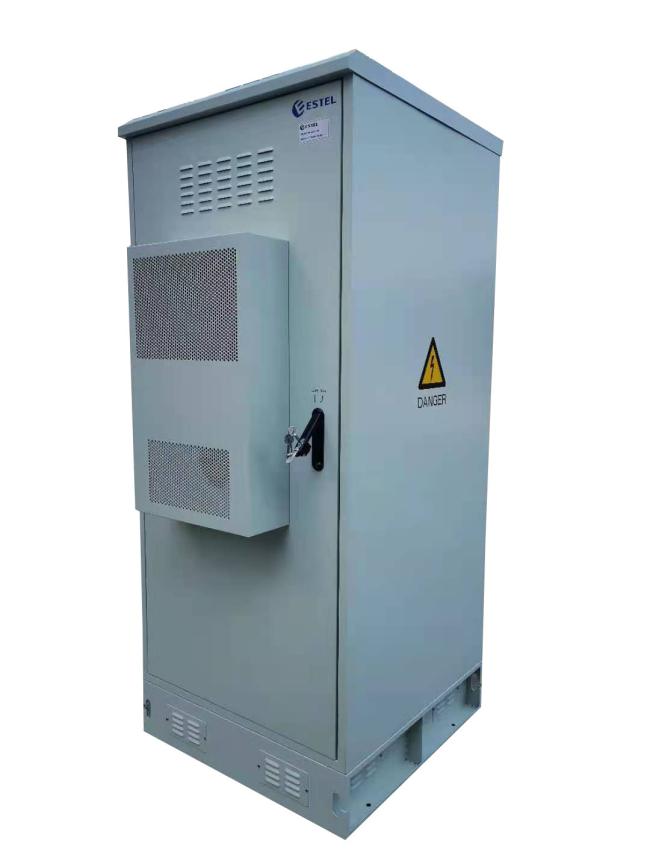

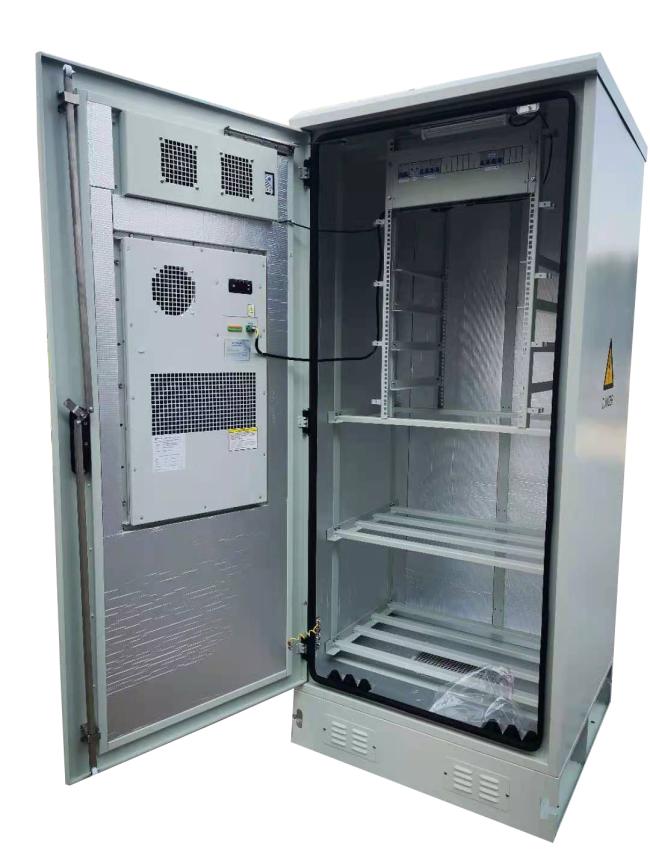

3. Cabinet Pictures
4.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Why Choose Us
Q1: Are you a Manufacturer or trading company?
A: We are a Professional Outdoor Cabinet Manufacturer .Our Factory include 8 business sections. Outdoor telecom cabinet, Air conditioner, Power supply, Intelligent Power Distribution. Battery, IOT,
Q2: Do you have any MOQ limit for outdoor cabinet ?
A: Can be offer 1 pc sample that you feel our high quality and excell service.
Q3: What is the leading time?
A: Sample order is 1-2 weeks, bulk order is about 25 days after receive the payment.
Q4.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q5: Can you provide OEM ODM products with my brand and logo?
A: Yes, OEM & ODM is available..
Q6: Can I visit your company and factory in China?
A: Welcom to vist our factory anytime.
