Pole mounted Battery Cabinet Outdoor 19 Inch Rack

1.Pole mounted Battery Cabinet Introduction

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

2.Cabinet Features

Compact and light double-walled design

Highest protection against corrosion

Features an integrated roof

Made o fGalvanized steel, 1.2mm thickness, single wall.

Polyester powder coat with UV protection

PUR non-porous gasket—suitable for extreme temperatures

Pole mount accessories included

Fully welded design, supplied complete, no assembly required

Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

3. Cabinet Instructions

This cabinet is 550mm High and 400mm Wide and 250mmDeep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.

Optional Accessories :

● T&H solution: We adopt different components to control temperature and humidity ensuring the best working condition inside the cabinet.

● Monitor System: can monitor internal temperature,humidity,fire/smoke,door opened state.

● Light: one piece LED tube light is for lighting insde and fixed on the top cover.

● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.

● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

4.Cabinet Technical Parameters

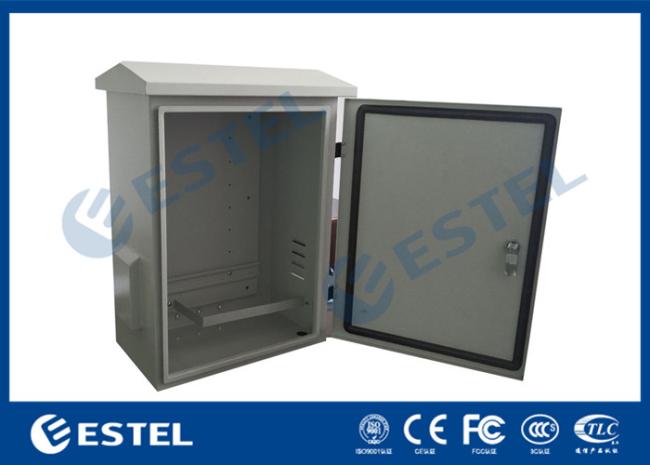

5.Cabinet Pictures

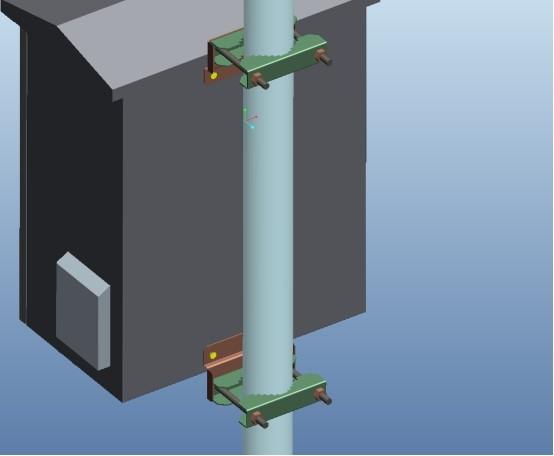

6.Pole mounted way:

7.Packing and Shipping

Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
