Outdoor Floor Mounted Cabinet 19 Inch Rack With PDU And Air Conditioner
Floor mounted Cabinet Outdoor 19 Inch Rack with PDU and Air conditioner
1.Floor mounted Cabinet Introduction
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2.Cabinet Features
Compact and light double-walled design
Highest protection against corrosion
Features an integrated roof
Made o f 3004 stainless steel, 1.2mm thickness, single wall.
Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures
Fully welded design, supplied complete, no assembly required
Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
3. Cabinet Instructions
This cabinet is 2000mm High and 1000mm Wide and 1000mm Deep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.
4.Optional Accessories :
● Cooling solution: We adopt Air conditioner to control temperature ensuring the best working condition inside the cabinet.
● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance
●Sensors: can monitor internal temperature,humidity,fire/smoke,door opened state.
● Light: one piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
5.Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET1111210010020033 |
| Protection Level | IP56 | |
| External Dimension | H2000mm×W1000mm×D1000mm | |
| Internal Dimension | 19 inch rail, 33U for equipments, plus one battery tray. | |
| Material |
Body: stainless steel 4003, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door and one rear door, anti-theft three-point locking system. | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Cooling | DC air conditioner | Cooling Capacity: 1500W, Input Voltage: 48VDC |
| Power Distribution Unit | AC Input:1×2P/63A AC SPD:SPD40/60KA AC Output:5×1P/16A DC Output:1×1P/32A,2×1P/16A,2×1P/6A |
|
| Sensors | 2pcs × Door sensor, 1pc ×temperature and humidity sensor | |
| Others | 48VDC LED lamp for illumination. 2pcs | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Cabinet Diagram

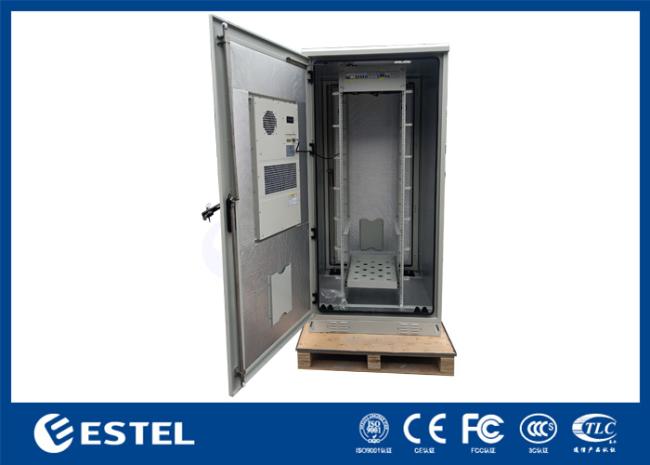

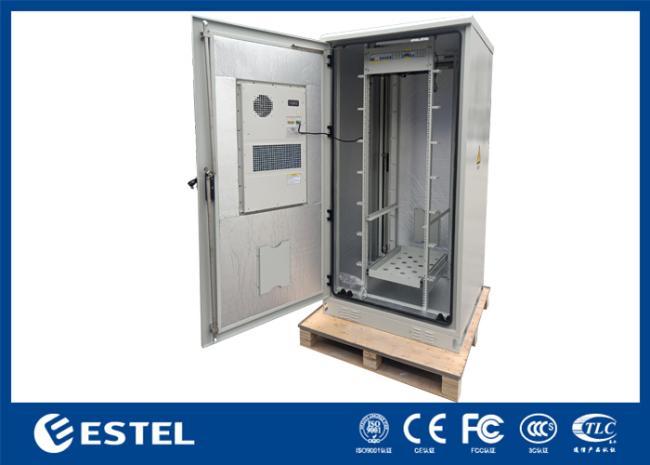

Cabinet pictures:
6.Cabinet Mounting Type
· Wall mounting type
· Pole mounting type
· Floor standing by base
7.Packing and Delivery
(1)Packaging: Wooden case onto pallets
(2) Delivery:
- By Express: Door to door, very convenient, don't need to clearance or pick-up
- By Air: Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
- By Sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port
