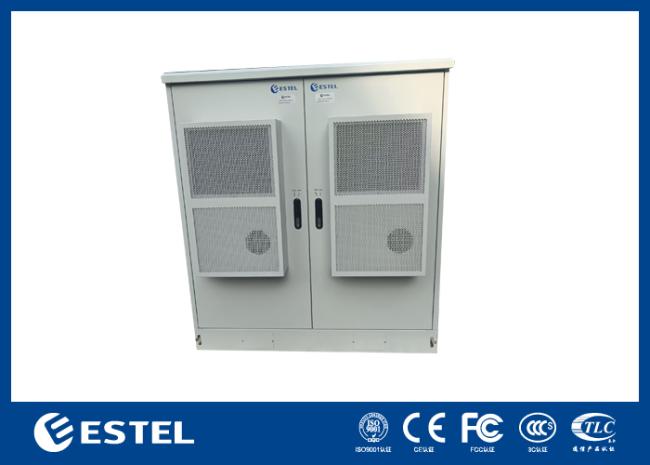

Floor Mount Telecom Outdoor Cabinet Assembled / Welded Stucture Air Conditioner Cooling
Cooling Air Conditioner Floor Mount Enclosure Telecom Outdoor Cabinet Assembled / Welded Stucture
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Dimension: W×D×H 1500×800×1600mm |
| Brand Name: ESTEL | Structure: single wall, with insulation |
| Model: ETP230314 | Cabinet Layout: two compartments |
| Product Name: Floor Mount Enclosure | Protection Level: IP65 |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cabinet Lock: anti-theft three point lock |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel | Illumination: 220VAC 50HZ LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: grey (support custom made) | Cooling: 220VAC 50HZ air conditioner |
| Coating: anti-corrosion outdoor powder coating | Installation: floor mounted |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 8,600 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension:W×D×H 1500×800×1600mm |

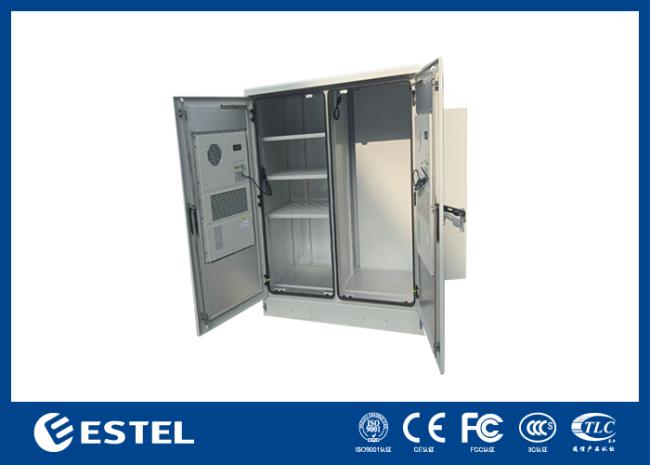

| Layout | Left compartment: upper part is 3 shelves,lower part is empty. Right compartment: empty, include one back plate. | |
| Door | Two front doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.2mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | Heat insulation between inner wall and outer wall. | |
| Structure | Assembled or welded | |
| Ingress Protection | IP65 | |
| Temperature Control | Cooling | 220VAC 50HZ Air Conditioner |
| Lighting | LED lamp | 220VAC 50HZ LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W×D×H 1500×800×1600mm (2) Two compartments (3) With two front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.2mm thick |
| 2 | Air Conditioner | 2 | PC | 220VAC 50HZ, cooling capacity: 1500W |
| 3 | LED Lamp | 1 | PC | 220VAC 50HZ |
| 4 | Package | 1 | Set | Wooden Case |
2. Application
The ETP230314 Floor Mounted Outdoor telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- The battery compartment cooling: fans (Other cooling option: heat exchanger or air conditioner.). MTBF≥50000h
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
4. Description
4.1 Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
4.2 Grounding Protection
- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
4.3 Appearance and Surface Treatment
Outdoor powder coat, with gray color. The coat is anti-shock, anti-aging, anti-solvent, anti-low temperature.
4.4 Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
Three point lock

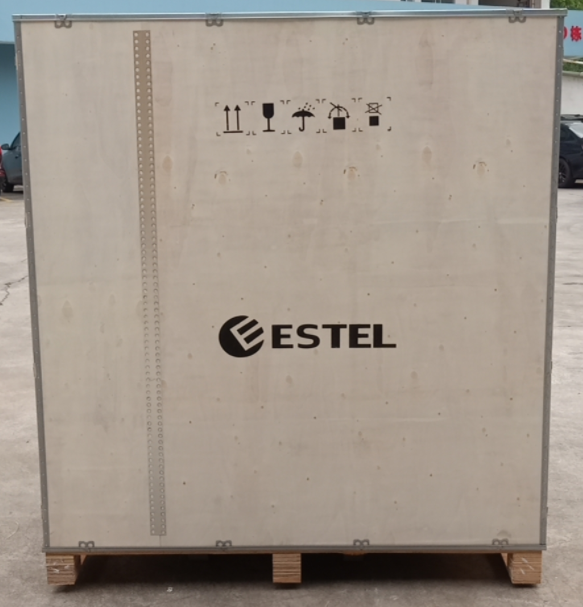

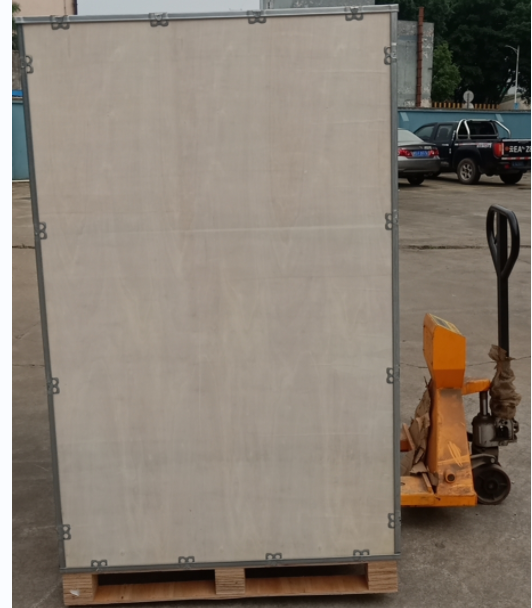

5. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
