600x600x20U Height Floor Mounted Telecom Enclosure Standard 19 Inch Rack Cabinet

600x600x20U Height Floor Mounted telecom Enclosure standard 19 inch Rack Equipment Cabinet


1. Standard Compliance Table

.

2. Specification Of floor mounted enclosure










3. Feature Of floor mounted enclosure

• Short construction period, less land occupation, broader application and lower construction cost
• High integration, compact structure, easy installation and migration on later stage
• High-performance cooling solution, options: air conditioner, heat exchanger and fan
• Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
• Perfect air duct design to avoid cold and hot air mixed flow effectively
• Professional outdoor anti-corrosion powder coating, strong weather resistance
• Universal rack design applied for types of battery
• Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55
• Door stopper to hold door open at service
• Hidden hinge, inside screws, enhance the theftproof
• Support custom made


4. Cabinet Introduction


• The intelligent temperature measuring machine can be installed in the main entrances of crowded places such as enterprises,schools, hotels, shopping malls, office buildings, banks, government halls, etc., to monitor the temperature of employees, customers, and visitors in real time, effectively helping to prevent epidemics.

• Cabinet Material

• The cabinet is made of galvanized steel, single wall, thickness of outer plate: 1.2mm,There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.

• Cabinet Structure

• The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.

• Cabinet Door and Lock

• The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

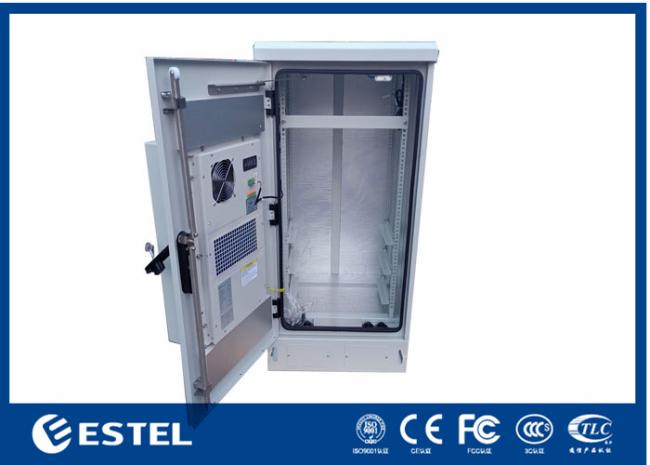

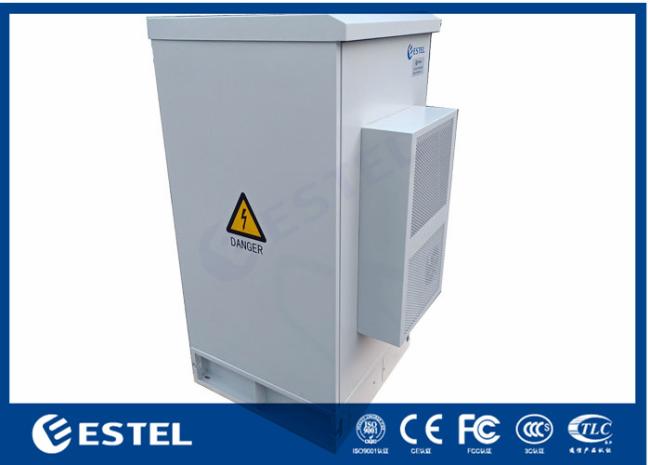

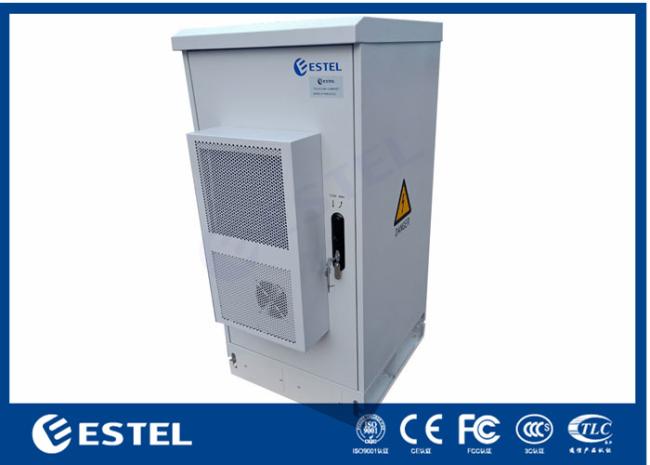

• Pictures:

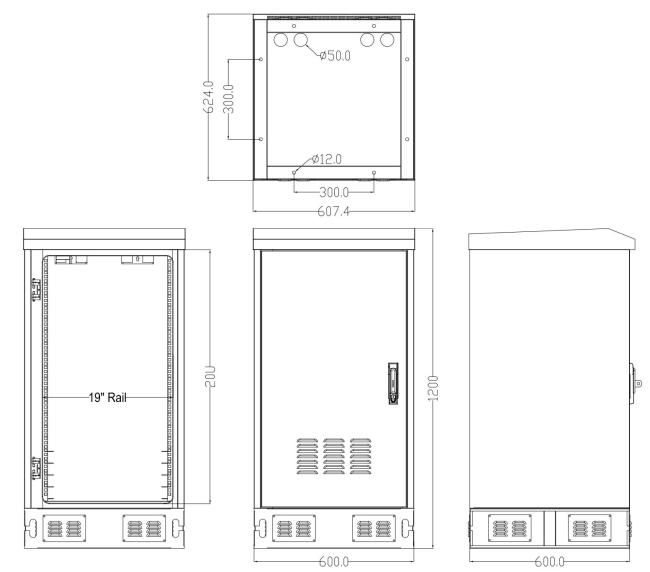

5.  Cabinet DIagram




6. Air conditioner Datasheet:

      1. Product introduction

2) The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.

3) The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.

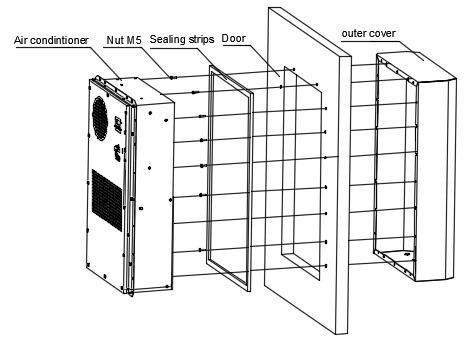

4)Installation diagram




7. Various cooling system for your choice

• Natural ventilation cooling system
• DC/AC Air conditioner cooling system
• Heat exchanger cooling system
• Fan cooling system
• TEC cooling system


8. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
