3000W AC Air Conditioner Outdoor Cabinet Air Conditioner For Telecom Enclosure
3000W AC Air Conditioner Outdoor Cabinet Air Conditioner for Cabinet Cooling
The EC30HDNC1C is a compact, high efficient AC powered air conditioner.
The design is optimized for applications with limited space available, but
where functionality and performance still cannot be compromised.
220VAC power input
3000W cooling capacity@L35/L35
Door mounted – easy integration in outdoor cabinets
Standard configuration with heater
Wide working temperature range: -40ºC ~ +55 ºC
Quick Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal, etc |
| Supply Ability: | 15,000 sets per month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | carton + foam + wooden case |
Specifications

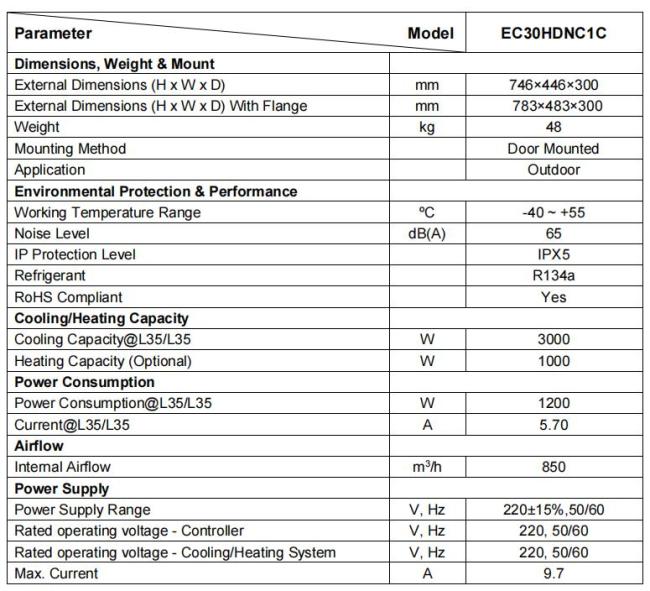

1. Technical Parameters
| Model No. | EC30HDNC1C | |
| Environmental Performance | working environmental temperature | -40°C ~ 55°C |
| application working temperature | -40°C ~ 70°C | |
| working humidity | ≤95% | |
| Thermal Performance | rated cooling capacity | 3000W(L35 L35) |
| rated heating capacity | Optional | |
|
Electrical Performance |
power consumption | 1240W |
| input voltage | AC220V | |
| Noise | ≤65dB | |
| Refrigerant | R134a | |

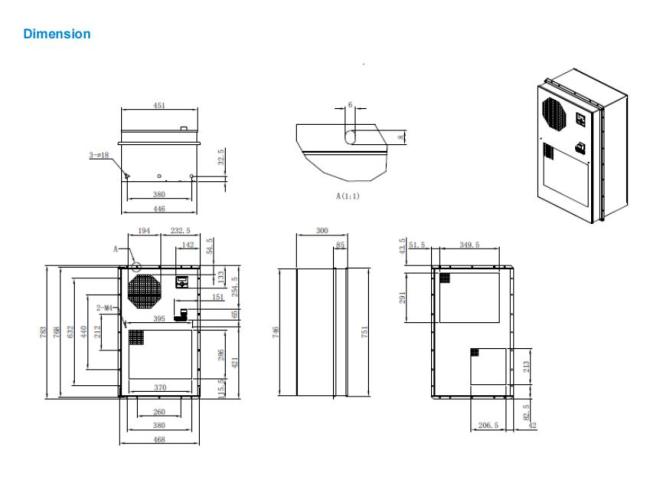

2. Dimension Diagram:
3. Introduction
The EC30HDNC1C air conditioner has below functiong:
* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* AC Air conditioner, Power supply voltage range;
* Fit for harsh condition (T3), R134a refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* Strict process control and international brand parts deployed to ensure high quality and
product;
* Dry contact alarm output, NO/NC optional.
4. Features
- Strong adaptability
- High intelligence
- High precision
- High reliability
- Low noise
- Low energy consumption
- With 4 way switching value detection
- With 1 way room air conditioner control
- Wide input voltage range: AC220V±15%
- With dry contact alarm output
5. Main Technical Parameters
§ 2×16 Chinese/English shift LCD display, user friendly;
§ Simultaneously display temperature and humidity inside the box and communication room temperature;
§ Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:4%;
§ Can store 180 days’ daily event record, 1 record every day;
§ Daily highest temperature, lowest temperature, average temperature
§ Daily event record;
§ Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
§ RS485 communication,RTU-Modbus protocol, support remote detection and control;
§ Use PID control algorithm, intelligently adjust output power, optimize energy efficiency;
§ Controllable air conditioner quantity: 2 sets. 1 set of air conditioner for communication room, and 1 set of air conditioner for thermostatic cabinet.
§ Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner);
§ Real-time control air conditioner on/off;
§ Power supply: AC220V;
§ Power consumption: 1240W;
§ Working environment: -40°C~70°C;
§ Installation method: guide rail,hanging;
§ Dimension(L×W×H):783mm×483mm×300mm.
6. Packing and Shipping
7. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
