Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor
Double Wall IP55 Outdoor Telecom Cabinet 45U With Air Conditioner Smoke Sensor
1. Outdoor Telecom Cabinet Description
This outdoor telecom cabinet is designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anti-corrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is 2300mm High and 800mm Wide and 800mm Deep, equipped with sensor system, power distribution unit system, temperature control system, lighting system, and user equipment installation space.
2. Outdoor Cabinet With Air Conditioner Features
2.1 The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment.
2.2 The cabinet cooling uses DC48V 1500W compressor inverter air conditioner.
2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.
2.4 Including one smoke sensor, used for smoke alarm.
2.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.
2.6 All the screws&nuts are stainless steel material. Enhanced the corrosion resistance of the cabinet.
3. IP55 Double Wall Cabinet Technical Specs
| Item | Type | Technical Parameter |
| Structure | Size |
External Size: W*D*H 800*800*2300mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 45U | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, double wall with 20mm insulation | |
| Ingress Protection | IP55 | |
| Surface treatment | Powder coating | |
| Color | Grey RAL 7035 | |
| Temperature Control | Cooling | DC48V 1500W Air Conditioner |
| Lighting | LED lamp | DC48V LED lamps |
| Power Distribution | Power Distribution Unit |
125A 6Way UK plug Support custom |
| Temperature | Operating temperature | -40°C ~ + 75°C |
| Storage temperature | -50°C ~ + 70°C | |
| Transport temperature | -50°C ~ + 70°C | |
| Humidity | Relative Humidity (RH) | 5%~99% |
| Air pressure | Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |
| Other characteristics | Flame retardance | Comply with GB5169.7 test A |
| Withstand voltage | ≥3000V(DC)/1min | |
| Insulation resistance | ≥2×104M/500V(DC) |

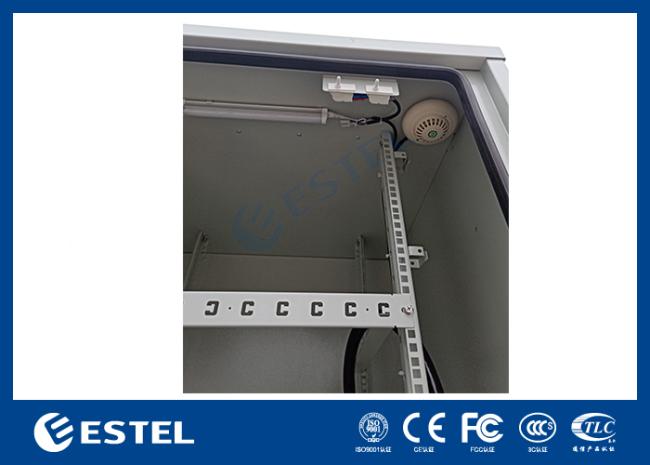

4. Cabinet Details

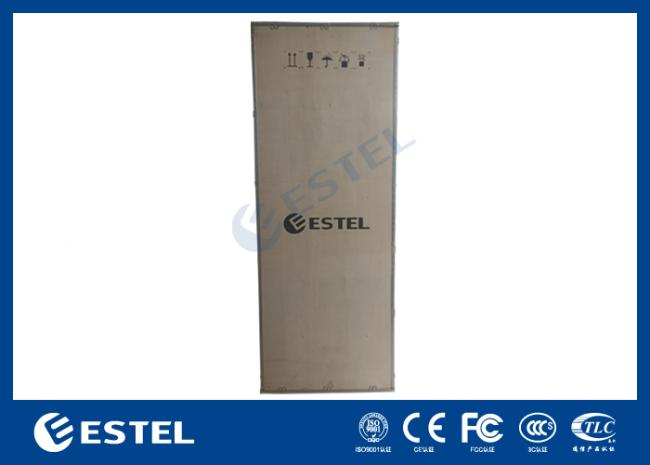

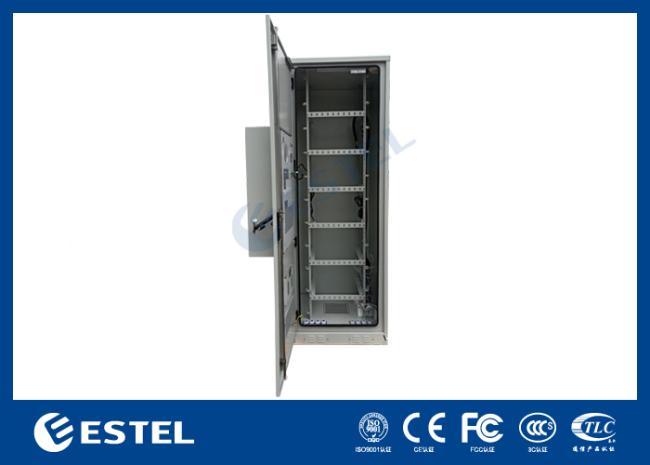

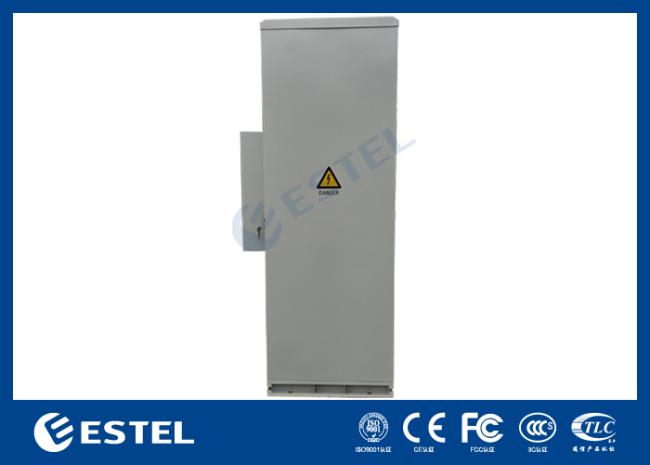

5. Telcom Cabinet Picture

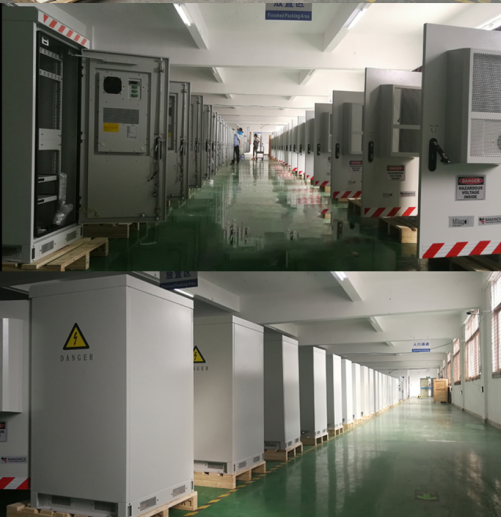

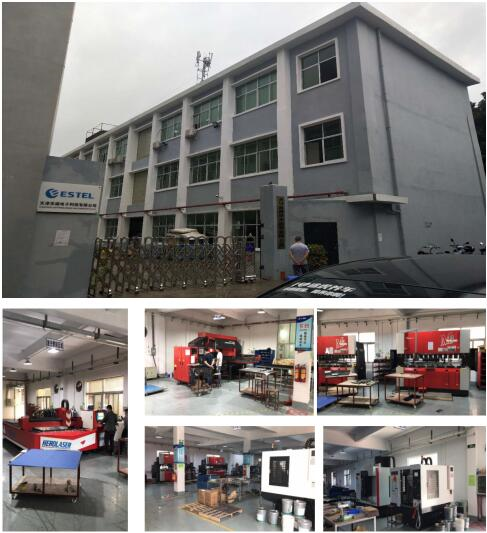

6. Our Factory Show
7. Company Qualification Certificate
8. Some of our customers
