IP55 33U Outdoor Cabinet 1 Compartment With Battery Shelf And Power Distridution

IP55 33U Outdoor Cabinet With Battery Shelf And Power Distridution

Customized outdoor telecom cabinets are designed to meet specific requirements for telecommunications equipment in outdoor environments. These cabinets are typically customized in terms of size, material, protection level, and other features to ensure reliable and secure operation of telecommunication equipment under varying climatic conditions.

Here are some key points about customized outdoor telecom cabinets:

Protection Levels

• Outdoor telecom cabinets are often rated according to their Ingress Protection (IP) rating, which indicates their resistance to dust and water ingress. Common IP ratings for outdoor cabinets include IP55, IP65, and even higher ratings such as IP66 and IP67, offering varying degrees of protection against dust and water.
• The IP rating is an important consideration when selecting a cabinet for outdoor use, as it ensures that the equipment inside is protected from the elements.

Materials

• Customized outdoor telecom cabinets are typically made from durable materials such as stainless steel (e.g., SS316 or SS304), galvanized sheet, or aluminum.
• These materials are chosen for their corrosion resistance, strength, and ability to withstand extreme weather conditions.

Customization Options

• Customized outdoor telecom cabinets can be tailored to specific requirements, including size, door configuration, and internal layout.
• Cabinets can be designed to accommodate a wide range of telecommunications equipment, including base station equipment, power systems, fiber distribution units, and more.
• Additional features such as air conditioning systems, heating elements, and ventilation systems can also be incorporated to maintain optimal operating conditions for the equipment inside.

Applications

• Customized outdoor telecom cabinets are used in a variety of applications, including 5G communication base stations, telecommunication towers, and outdoor data centers.
• They are essential for protecting sensitive telecommunications equipment from environmental hazards such as dust, water, and extreme temperatures.

1. Cabinet Technical Parameter:

2. Cabinet Protection Level:

IP54/IP55/IP65

IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available

IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

3. Cabinet feature:

The outdoor telecom cabinet ET8013221B-33U offers standard 19” racking rails, is a new design for telecom projects and surveillance projects., an Outdoor cabinet is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.

4.Cabinet Advantages:

High integrated
(1)High compatibility, high integration
Supporting multiple equipments, good appearance
(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design

Flexible assembly
One compartment/two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof

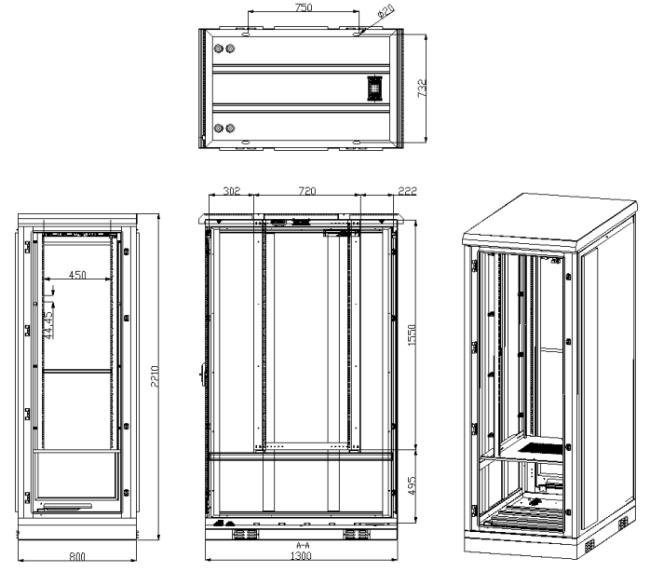

5. Cabinet Dimension

6. Cabinet Mounting Type

l · Wall mounting type

l · Pole mounting type

l · Floor standing by base

7. Grounding Protection

The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

Protective earthing of other equipments inside the cabinet should be connected to the grounding bar

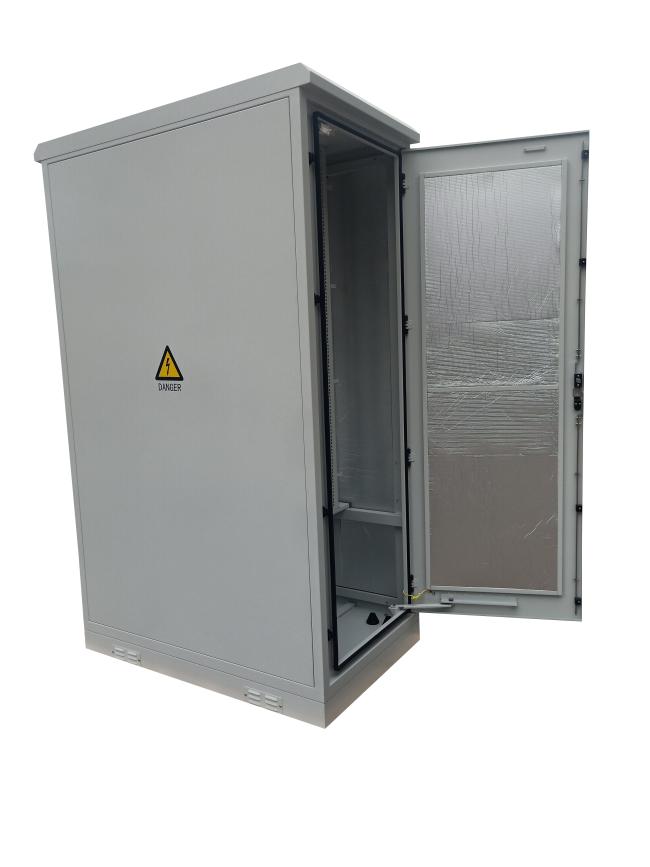

8. Cabinet pictures:

9. Cabinet Maintenance and Servicing

To ensure the long-term stable operation of the Outdoor Battery Cabinet, regular maintenance and servicing are required. This mainly includes:

• Cleaning and Dust Removal: Regularly clean the dust and dirt on the exterior of the battery cabinet to maintain its cleanliness.
• Checking Sealing: Regularly inspect the integrity of the sealing strips and tapes, and replace them promptly if damaged.
• Monitoring Parameters: Regularly check the various parameters in the monitoring system to ensure a suitable internal environment within the battery cabinet.
• Battery Maintenance: Regularly conduct charge-discharge tests and maintenance on the batteries according to the requirements of the battery management system.
