19inch Outdoor Telecom Equipment Cabinets IP55 Waterproof Floor Mounted Enclosure
15U Circle Around The Outdoor Cabinet IP55 Waterproof Floor Mounted Enclosure
1. 15U Circle Around The Outdoor Cabinet Technical Parameter
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET808014A-15U |
| Protection Level | IP55 | |
| External Dimension | H1400 mm×W 800 mm×D800 m | |
| Internal Dimension | 19 inch 15U | |
| Material |
Galvanized steel, 1.2 mm thickness, single wall. Frame around cabinet: SUS304, 2-2.5mm thickness |
|
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance |
One front door, front maintenance, material: SUS304, 1.5mm thickness Window size: 400X260mm, material: Tempered glass, 10mm thickness |
|

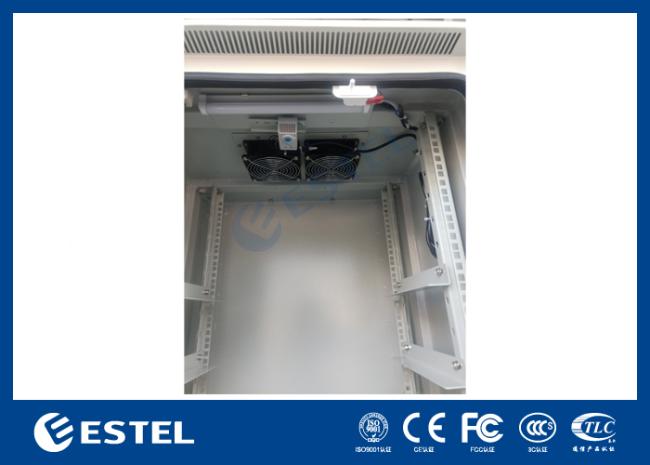

| Fan | Fan |
Two AC220V 50Hz fans One fan temperature controller |
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V,50Hz | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
2. IP55 Waterproof Floor Mounted Enclosure Introduciton
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway
electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control
cabinets,etc

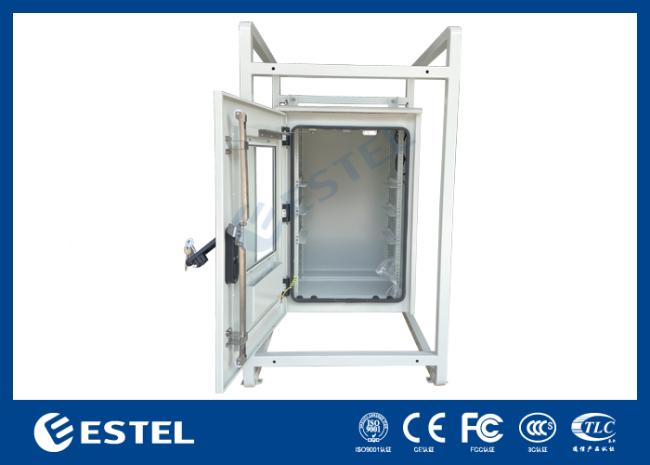

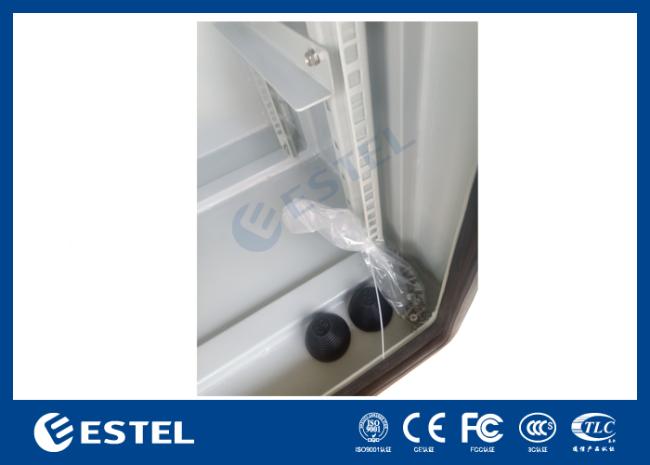

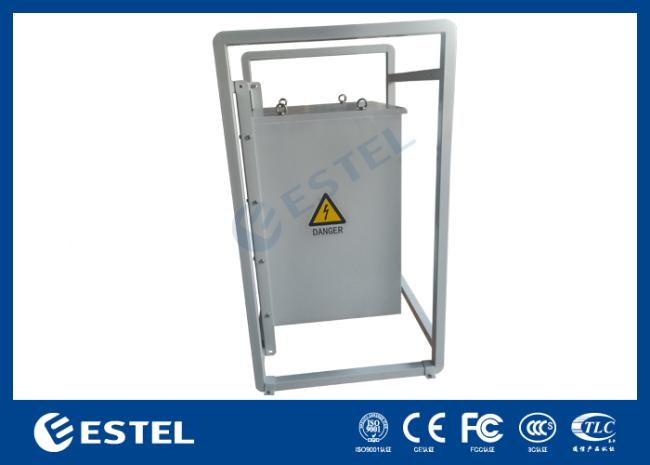

3. 19inch Outdoor Cabinet Pictures
4. The Outdoor Enclosure Grounding Protection
The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
Protective earthing of other equipments inside the cabinet should be connected to the grounding bar
5. FAQ About ESTEL
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
