40U Air Conditioner Outdoor Telecom Cabinet Retardant Materials Anti Rust Enclosure
40U Air Conditioner Outdoor Telecom Cabinet Retardant Materials Anti Rust Enclosure
1. 40U Air Conditioner Cabinet Application:
1.1 Base station
1.2 Mobile & Radio, 3G 4G 5G, Tetra, Microwave
1.3 Telecommunication
1.4 Internet service providers
1.5 Environmental monitoring
1.6 CCTV and security systems

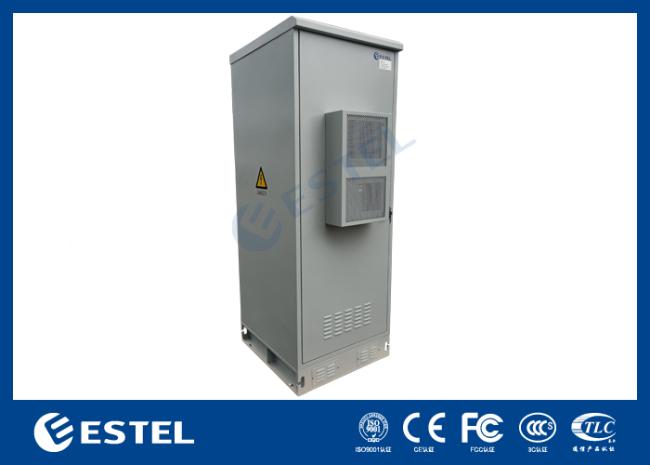

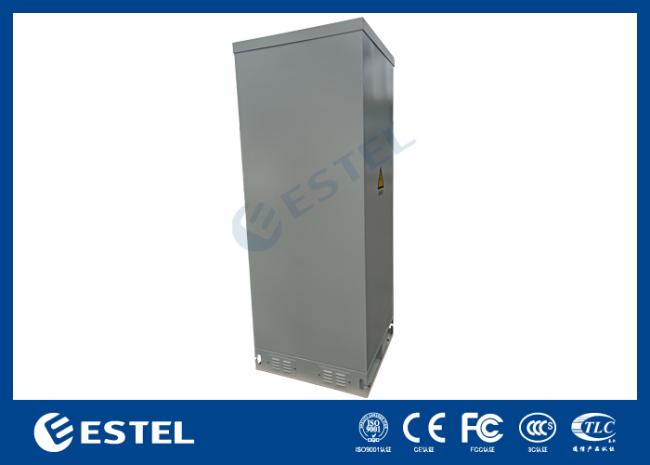

2. Retardant Materials Anti Rust Enclosure Pictures:
3. 40U Outdoor Telecom Cabinet Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size: W×D×H 800mm×800mm×2100mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model: ET8080210A-40U | Protection Level: IP55 |
| Product Name: Floor Mounted Cabinet | Cabinet Layout: one compartment, for installing 19” equipment |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cabinet Lock: anti-theft three point lock |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: SUS 304 | Illumination: DC48V LED lamp |
| Heat Insulation: 20mm PEF | Cabinet Door: one front door, front maintenance |
| Color: white, grey (support custom made) | Cooling: air condiitioner |
| Coating: anti-corrosion outdoor powder coating | Installation: floor mounted with installation accessories |
4. 40U Outdoor Telecom Cabinet Accessories List:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Size: W×D×H 800mm×800mm×2100mm (2) One compartment, 19inch, 40U (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Material: SUS 304; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls. |
| 2 | Air conditioner | 1 | PC | 600W 48VDC |
| 3 | Door Sensor | 1 | PC | |
| 4 | LED lamp | 1 | PC | DC48V |
| 5 | LED lamp switch | 1 | PC | Used for controlling LED lamp on/off |
|
6 |

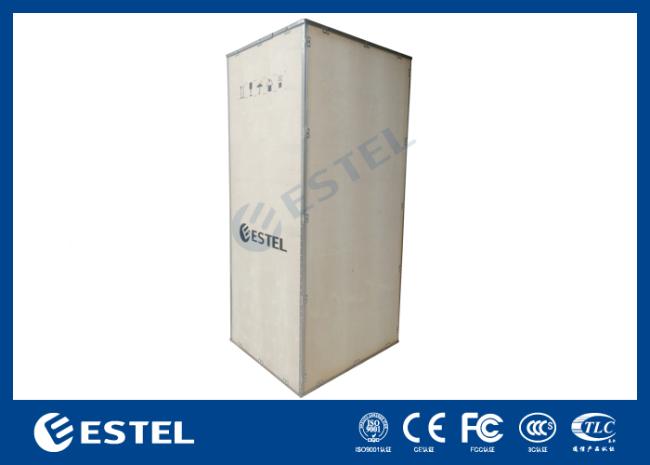

Package | 1 | Set | Wooden Case |
5. 40U Outdoor Telecom Enclosure Contact Information:
Mobile Phone: 0086-13752765943
Telephone: 0086-0755 66600941
Email: info@estel.com.cn
lxf.estel@hotmail.com
Skype: fiona.liang10
6. 40U Anti Rust Enclosure Delivery Agent:
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
