ET7575180A-33U Double Wall Cabinet Floor Mounted 48V Telecom Power Cabinet
ET7575180A-33U Double Wall Floor Mounted Telecom Cabinets With 48V Telcome
1. Floor Mounted Telecom Cabinets Quick Details:
(1) External Dimension W×D×H 750×750×1800mm
(2) One compartment, 33U usage space
(3) One front door; with special lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel, double wall with insulation in the middle of the cabinet
(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated
(6) Cabinet can install with 48V telecom, ODF, Lithium battery per customer requirements
2. ET7575180A-33U Double Wall Cabinet Specifications:
| Items | Type | Technical Parameter |
| 1 | External dimensions |
External Dimension optional: W*D*H 750*750*1800mm (based on customer request) |
| 2 | Material | Galvanized steel /Stainless steel/ Aluminium optional |
| 3 | Structure | Double wall heat insulation structure,The insulation material is 20mm PEF |
| 4 | Heat Insulation | There are heat insulation between inner wall and outer wall |
| 5 | Cooling system | 48VDC air conditioner |
| 6 | Accessories | Lithium battery,PDU, UPS, Monitor, Light, Alarm sensors(Based on request) PDU outlet. Monitor. Light. Alarm. Sensor (Based on request) |
| 7 | Alarm Sensors | Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor |
| 8 | Lamp | DC48V LED lamp |
| 9 | Protection level | IP55 |
| 10 | Flame retardance | Comply with GB5169.7 test A |
| 11 | 48V Power Supply | Available upon request |
| 12 | Cable management | Yes, per customer's request |
| 13 | Temperature |
Working Temperature: -40°C ~ +55°C |
|
Storage Temperature: -50°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
| 14 | Package | Wooden case with pallets |
3. 48V Telecom Power Cabinet Introduction:
The 48V Telecom Power Cabinet is a cutting-edge solution designed to optimize power distribution and management in modern computing and electronics systems. Incorporating advanced Hybrid Power technology, this cabinet provides intelligent control and regulation of power output, ensuring both energy efficiency and system stability.
Here are the key features and benefits of the Hybrid Power Cabinet:
- Intelligent Power Management:
- The Hybrid Power Cabinet utilizes a sophisticated power management system that monitors the system's workload and power consumption in real-time.
- Based on this information, the cabinet automatically adjusts power allocation to different components, maximizing energy efficiency while maintaining optimal performance.
- Hybrid Power Technology:
- At the heart of the Hybrid Power Cabinet lies its innovative Hybrid Power technology.
- This technology allows for intelligent switching between different power sources or modes, such as between integrated graphics and dedicated graphics cards.
- This results in significant energy savings during low-intensity tasks, while still delivering outstanding performance when needed.

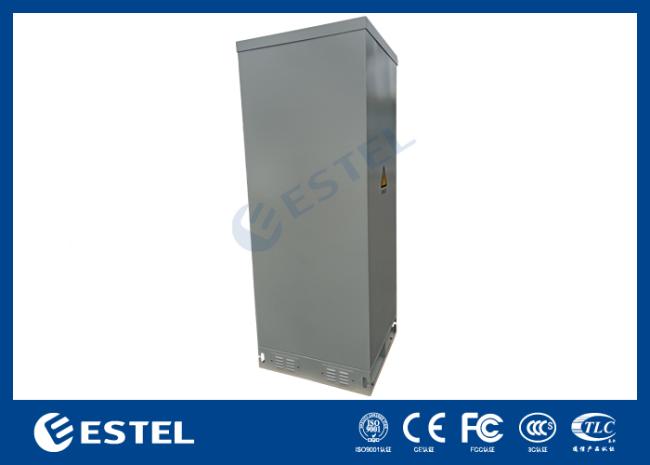

4. Floor Mounted Cabinets with 48V Telecom Pictures:
5. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Integrated Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19”, 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel, single wall with 20mm PEF |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: 48VDC |
| 3 | ODF | 1 | PC | 19inch, 1U installation |
| 4 | Telecom power supply | 1 | PC | Customized |
| 5 | FSU | 1 | PC | 19inch rack mounted, connected with all sensors |
| 6 | LED Lamp | 1 | PC | 48VDC LED lamp with switch |
| 7 | Door sensor | 1 | PC | Door sensor |
| 7 | Package | 1 | Set | Wooden Case |
