High Protection Grade High Anti-Theft Outdoor Battery Cabinet For Communication Base Stations
High Protection Grade High Anti-Theft Outdoor Battery Cabinet For Communication Base Stations
1. Application
ET7575160B-160 is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. Battery and telecom equipments can be accommodated inside the cabinet. The integrated cabinet can provide power for active telecom equipments .
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinet.
2. Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling system air conditioner is installed on cabinet door, convenient for maintenance, cleaning and replacement
● Using outdoor anti-corrosion powder coating
● All screws are made of stainless steel with high anti-corrosion performance
● Including four battery shelves.
3. Configuration List
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7575160B-160 |
| Protection Level | IP55 | |
| External Dimension | W750mm×D750mm×H1600mm (can be customized) | |
| Internal Space | 4 trays | |
| Material |
Galvanized steel, 1.2mm thickness, single wall Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system(support padlock) | |
| Hinge | Hidden inner hinge | |
| Installation | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Air Conditioner | 220VAC 50Hz, 600W |
| Others | One AC220V 50Hz LED lamp for illumination, with lamp switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |

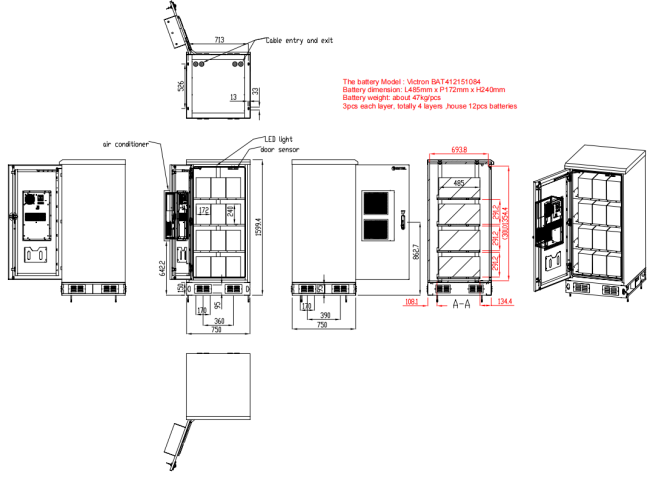

4. Cabinet Drawing

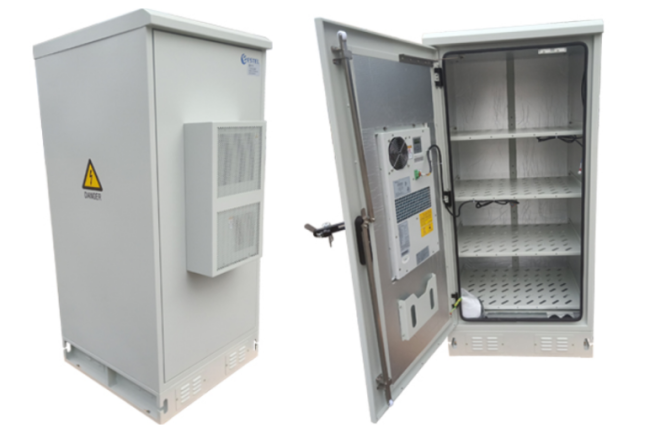

5. Telecom Cabinet Picture
