40U Outdoor Telecom Cabinet With Air Conditioner Cooling Stainless Steel Screws And Nuts For Enhanced Corrosion Resistance
Stainless Steel Screws And Nuts For Enhanced Corrosion Resistance 40U Outdoor Telecom Cabinet With Air Conditioner Cooling
1. Brief Introduction
ESTEL is a professional manufacturer in supplying heavy duty outdoor 19” racks& cabinets for telecommunications and other industry.
ESTEL offers a wide variety of styles and configurations to meet the needs of every application. From standard, off-the-shelf models to completely custom and integrated outdoor rack telecom enclosures, our product are engineered, fabricated and assembled in our facility.
To meet exact customer specifications, our outdoor telecom rack’s, electronic, are avaliable in aluminum, galvanized steel and stainless steel, and can be finished in powder coating.
2. Features
2.1 The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment.
2.2 The cabinet cooling uses AC220V 600W compressor air conditioner.
2.3 Including one 48VDC illumination LED lamp, installed on cabinet top.
2.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.
2.5 All the screws&nuts are stainless steel material. Enhanced the corrosion resistance of the cabinet.
3. Technical Specs
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET8060208A-40U |
| Protection Level | IP55 | |
| External Dimension | W800mm×D600mm×H2085mm | |
| Internal Space | 40U 19 inch rack | |
| Material |
Galvanized steel, 1.2mm thickness, single wall Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system(support padlock) | |
| Hinge | Hidden inner hinge | |
| Installation | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Air Conditioner | 220VAC 50Hz, 600W |
| Others | One AC220V 50Hz LED lamp for illumination, with lamp switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |

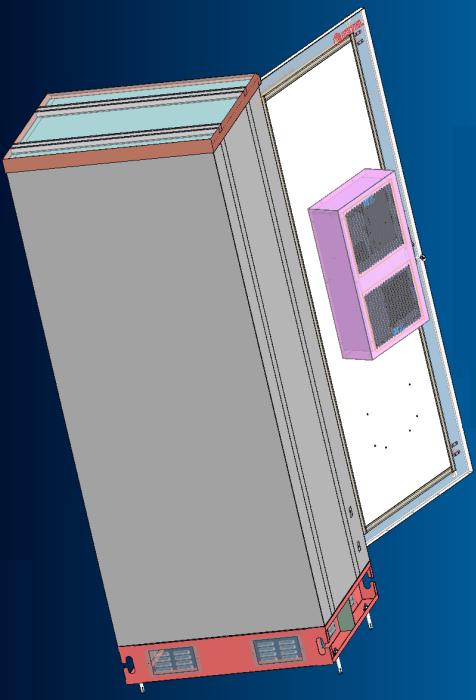

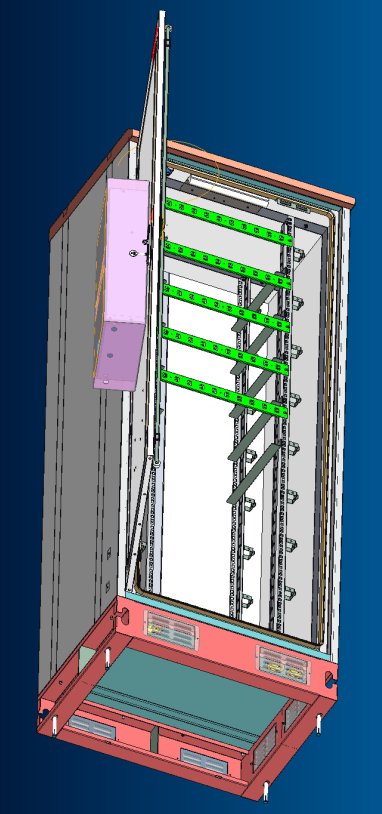

4. 3D Drawing

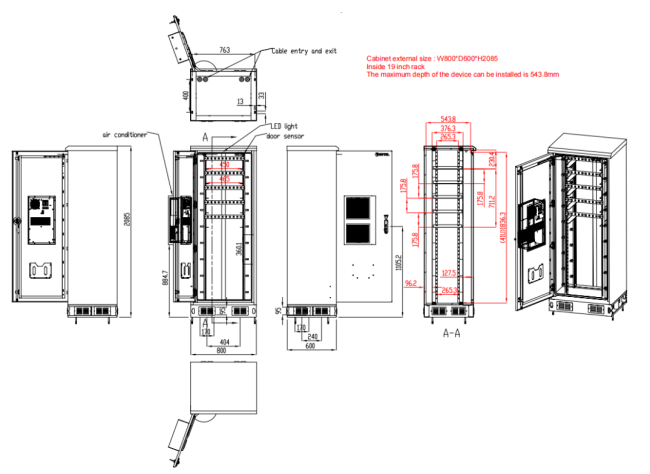

5. Cabinet Drawing

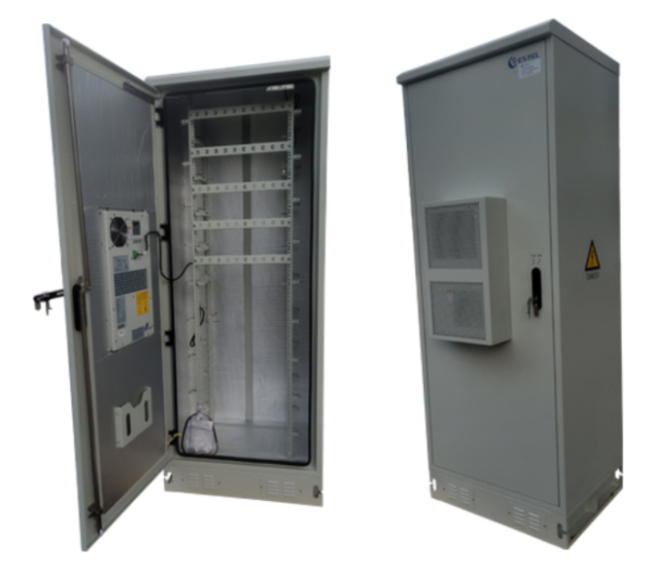

6. Telcom Cabinet Picture
7. Cooperative Customers
ESTEL has always been in line with the principle of "integrity and win-win", sincere cooperation with customers. Over the years, ESTEL keeps continuous efforts, good reputation and service to win the industry's authority and the recognition of customers. The company is willing to establish cooperative relations with more enterprises, mutual benefit and create win-win situation hand in hand.

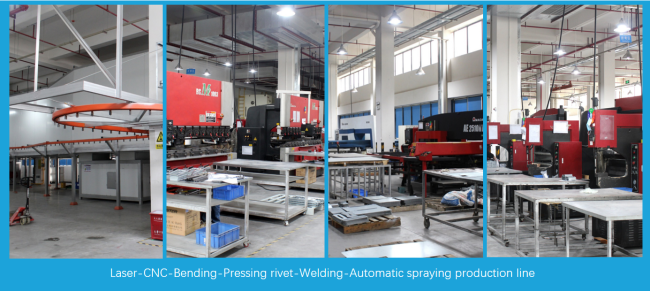

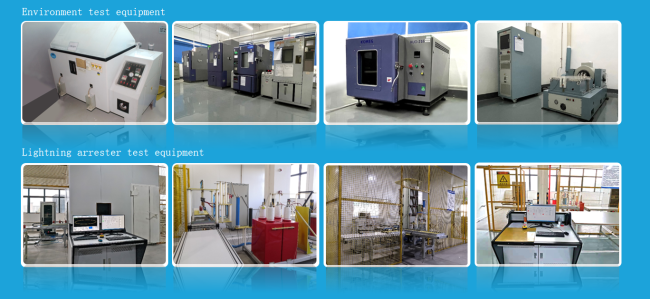

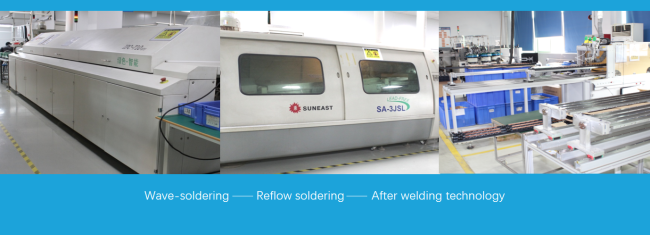

7. Our Production Equipment
Sophisticated production equipment, high quality & rapid development and delivery
