22U IP65 Outdoor Telecom Cabinet with Anti-Theft and Weatherproof Features

Configuration

Item

Technical Parameter

Cabinet

Model

ET7565200C-22U

Protection Level

IP65

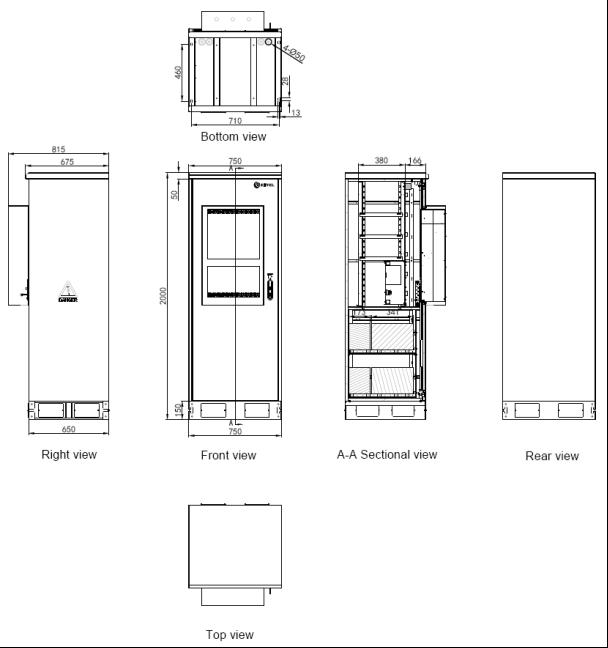

External Dimension

H2000mm×W750mm×D650mm  (Support customization)

Internal Space

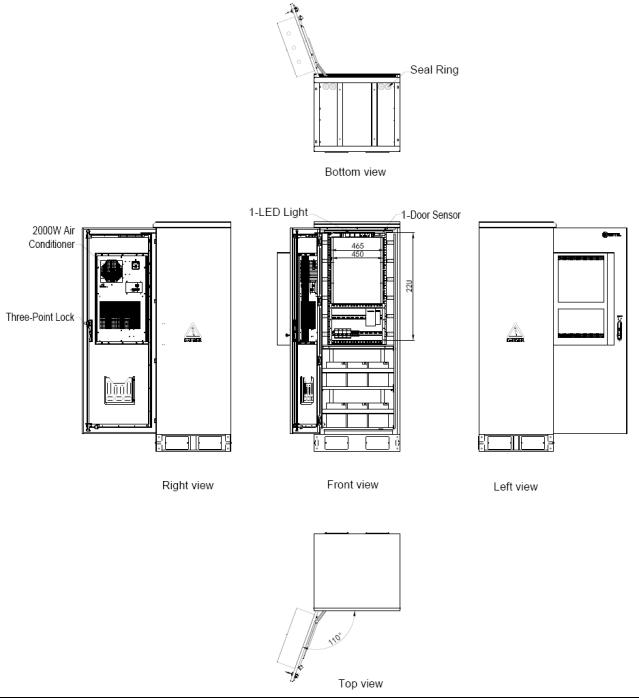

Dual cabin structure, upper cabin 19 inches 22U, lower cabin with two layers of battery panels

Material

Galvanized steel; cabinet thickness: 1.2mm; single wall; bearing part thickness: 2.0mm

Insulation

single wall 20mm PEF(Thickness optional)

Coating

Polyester powder coating

Color

RAL7035

Lock

Three-point lock

Hinge

Recessed built-in hinge

Installation Options

Floor mounted, Roof mounted

Cable Routing

At cabinet bottom, inlet/outlet downwards

Maintenance

Front maintenance

Cooling

DC air conditioner,3000W,48VDC,RS485

TEC air conditioner,200W,48VDC

Power System

(1) Height: 12U

(2) AC Input:

Three Phase: 200-240 Vac/346-415 Vac

Single-phase: 200-240 Vac

(3) Input Circuit Breaker: 63A/3P

Input lightning protection: Class C (20KA/40KA)

(3) 4kW rectifier modules* 8;

(4) Controller MC2600

(5) Battery MCB 4*125A/2P.

(6) Load:

LLVD: 2*80A/1P+8*63A/1P

BLVD: 1*63A/1P+14*32A/1P+2*16A/1P

Power Environment Monitor

(1) Power environment monitor: PM5000 × 1

Door magnetic sensor: HO-03×1

Flood: S3-WDT-P×1

Smoke sensor:-JTY-GD-CA2001L×1

Temperature and humidity sensor: PM5000TT-TEMP×1

Oil level sensor: KNMY-268×1

(2) Power environment monitor to be mounted on 19-inch post, front maintenance

Battery

Lithium battery 48VDC 100AH*4

Fan

DC48V+ temperature control

Lamp

48VDC LED

Others

Combiner box, cables

Environment

Working Temperature

-40℃~+55℃ (+Solar Radiation)

Storage Temperature

-40℃~+70℃

Working Humidity

5%~95%(No condensation)

Working Altitude

0~4000 m
