Galvanized Sheet Outdoor Telecom Cabinet with ATS Battery and Camera for Telecom Power System
Outdoor Telecom Cabinet with ATS Battery and Camera for Telecom Power System
1. Introduction

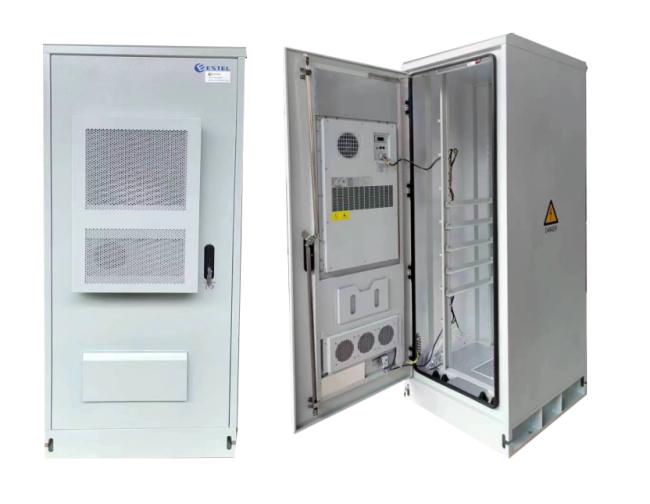

ET7575190A-35U is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, and provide AC power supply for IT equipment with emergency back up from an external diesel generator and batteries. It also equips with a Camera for monitoring the safety of the power supply cabinet. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, especially for telecom base station critical network transmission equipment.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features
- High protection grade: IP55
- Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
- Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
- Support remote management, improve security and minimize customer’s operation cost
4. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
5. Technical Parameters
| System | Item | Parameter |
| Cabinet | Model | ET7575190A-35U |
| Protection Level | IP55 | |
| External Dimension | WxDxH=750x750x1900mm (Can be customized) | |
| Internal Dimension | 19 inch 35U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall; Thickness of bearing parts: 2.0 mm |
|
| Insulation | N/A | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | one front door and one rear door | |
| Cooling System | Air conditioner | 1500W AC220V 50Hz |
| Power Input | Mains and Diesel generaor | |
| ATS | Based on client's needs | |
| PDU | Based on client's needs, with SPD | |
| Battery | 2x 48V 100Ah, total 200Ah (Based on client's needs) | |
| Camera | Optional | |
| Door sensor | Door sensor | |
| Temperature sensor | Temper sensor | |
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
