Outdoor Telecom Power Cabinet with Rectifiers and MPPTs for Coal Plant and Mine Yard 9kW to 18kW Scalable

Outdoor Telecom Power Cabinet with Rectifiers and MPPTs for Coal Plant and Mine Yard 9kW to 18kW Scalable

1. Introduction

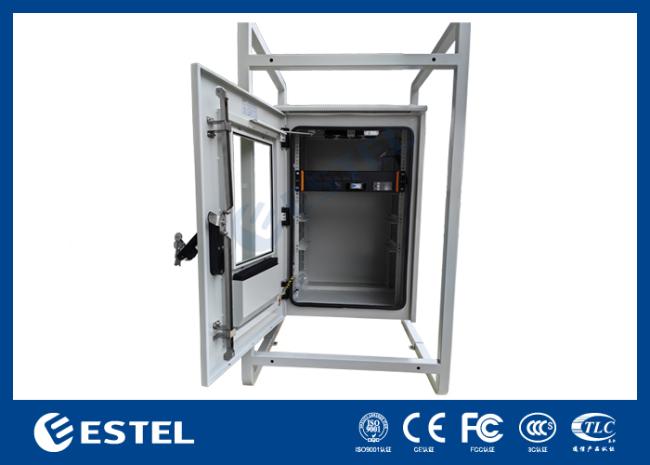

ET808014A-15U-9kW is a 15U outdoor cabinet designed for industrial places such as mine yards, coal plants, etc., it can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply. It is equipped with a environment monitoring unit, which provides real-time monitoring of the power parameters and environmental parameters, and provide users with alarm and remote notifications.

2. Applications

This outdoor telecom cabinet is widely used in various industrial places, such as mine yards, coal plants, telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets,etc.

3. Cabinet Features

• High protection grade: IP55
• Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
• Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
• Support remote management, improve security and minimize customer’s operation cost

4. Rectifier Power System Features

• Power system capacity: 9kW to 18kW, 3 to 6 rectifier modules + 1 monitoring module (Scalable, maximum capacity 18kW);
• Power system height: 5 rack units height;
• Rectifier module specification: 3kW;
• Monitoring module: support SNMP;
• Power distribution:

              - LVD1: 2x80A, 2x63A;

              - LVD2: 1x63A, 4x32A, 2x16A;

5. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

6. Technical Parameters
