Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

This telecom power system is a powerful system designed by ESTEL, it provides intelligent power management and stable power supply for telecommunication equipment, it supports various power input, such as grid power, solar power, diesel generator, and battery power.

2. Parameters of 15kW Rectifier Power System

ESTEL telecom power system is not a standard model, it composed of a high-quality power sub-rack, rectifier modules, solar modules, controllers, circuit breakers, surge protection devices, etc. It can provide flexible configuration, to meet different customers’ project needs.

Advantages:

• Physical features: 19’’ standard rack mountable sub-rack with variable height, from 2U to 15U.
• Power input features: It accepts power inputs from grid power, solar panels, diesel generators, and transfer grid power and solar power into battery energy as emergency backup power supply.
• Power output features: It is configured with circuit breakers for load, with different priority of LLVD and BLVD, it is also configured with surge protection devices, breakers for battery connection, and with option for bypass switch. And by connection to a inverter, it can provide stable AC output to AC load equipment.
• Control functions: It provide monitoring and control for the modules, for battery charging and discharging status, temperature sensor, etc.
• High compatibility: It is compatible with the main brands of lithium batteries on the market.

3. Features of 38U IP65 Outdoor Power Enclosure

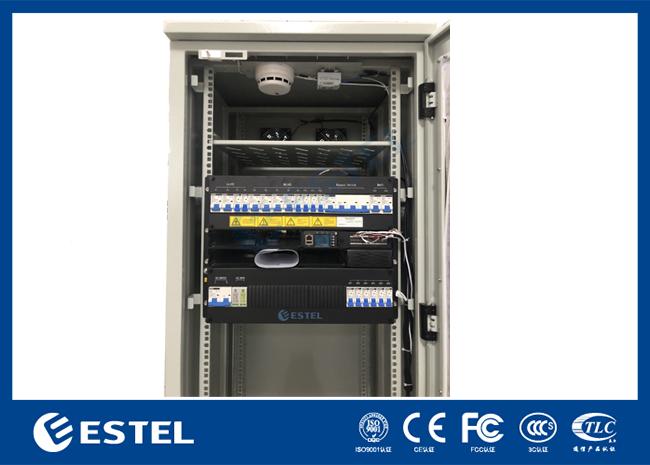

ET7575200A-38U is an outdoor power cabinet which can protect customer’s equipment from damage and extreme weather conditions. 38U telecom equipment, power system and batteries can be accommodated inside the cabinet. The cabinet can provide power for active telecom equipment and passive telecom equipment at the same time.

Main features:

• High protection grade: I655;
• Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock;
• Adopt highly efficient cooling unit: air conditioner;
• Comprehensive protection (optional): door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.;
• Support remote management, improve security and minimize customer’s operation cost;

The outdoor power cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets, etc.

4. Advantages of Outdoor Telecom Power System

• Cabinet size customizable
• Flexible cooling solutions
• Intelligent power system
• Cost-effective
• Operator-grade quality
