Telecom Power System Offering 100kW Rated Charge and Discharge Power with Advanced Control and Operation Software System
Price:
358-2143 usd
MOQ:
1
Delivery Time:
7-10 working days
Brand:
ESTEL
Product Description
Product Overview
Product Introduction

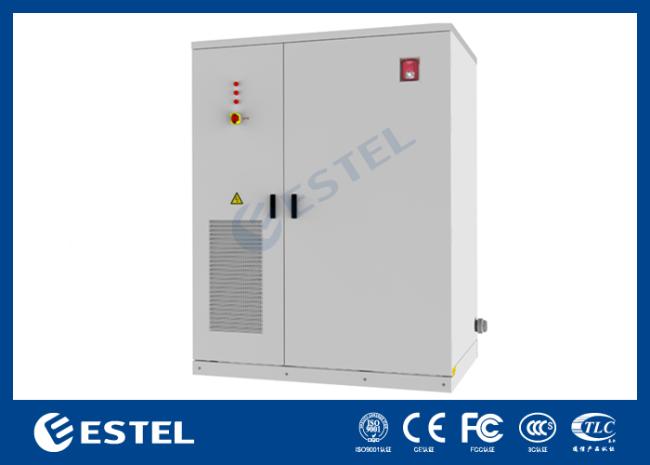

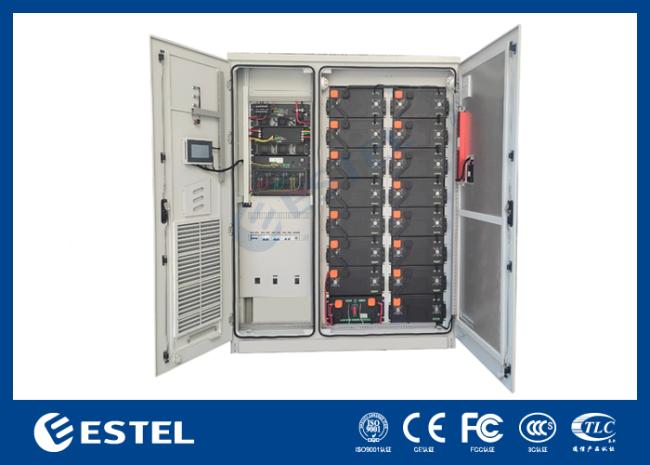

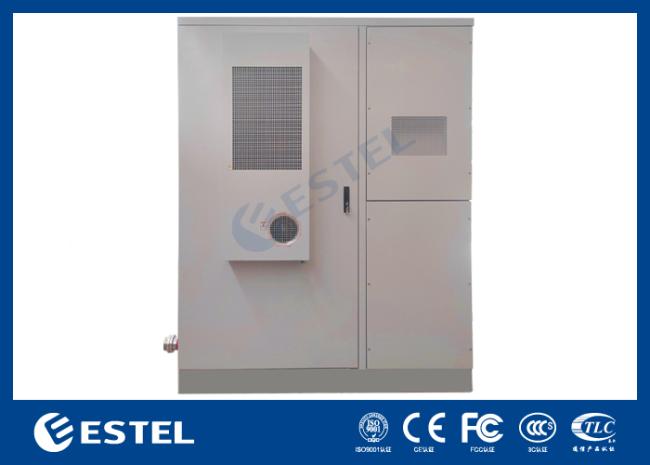

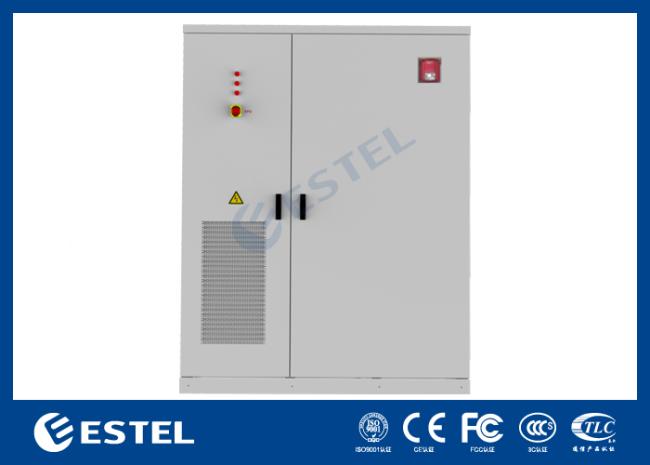

The company's 100kW/215kWh air-cooled energy storage cabinet adopts a 3.2V/280Ah lithium iron phosphate battery storage system. It has a wide
range of application scenarios on the power grid side, and the system can realize peak shaving, valley filling, demand management, emergency power supply and other functions. The system has the following advantages:
(1) Adopting an integrated design, single cluster management, solves the battery circulation problem and the bucket effect, greatly increases the
system safety and the discharge capacity throughout the life cycle;
(2) Highly integrated, further reduces system costs while simplifying the design;
(3) Realize diversified fire protection system: standard configuration composite gas detector, temperature-controlled aerosol and water fire extinguishing;
(4) Self-developed control and operation system: a set of software system
developed based on operation needs.
Main Technical Parameters
Table 1 Main Technical Parameters Table
| NO: | Item Description | Specification | Notes |
| 1 | System Rated Capacity | 215kWh | |
|
2 |
Battery Cluster Configuration Method |
1P15S |
|
| 3 |
Rated Charge/Discharge Power |
100kW |
Overload capacity: 110% |
| 4 | DC Voltage Range | 672-864V | |
| 5 | Grid Side Voltage Range | AC400V±10% | |
|
6 |
Inverter Operating Mode |
Three-phase three-wire grid- connected operation | |
| 7 | Operating Mode | Grid-connected operation | |
| 8 | System Efficiency | ≥85% |
AC side@25± 2℃ 0.5P |
| 9 | Power Factor | -1～1 | Adjustable |
| 10 | Rated Charge/Discharge | 0.5P | |
| 11 |
Storage Temperature Range |
-30℃~60℃ | |
|
12 |
Permitted Operating Temperature Range |
Discharge:-20~55℃ ; Charge:0~55℃ | |
|
13 |
Best Operating Temperature Range |
25±2℃ | |
| 14 | System Cycle Life | ≥6000 t i m e s |
@25±2℃ , 0.5P,EOL≥80% |
| 15 | Relative Humidity | RH ≤95% | No condensation |
|
16 |
Altitude |
≤3000m |
>3000m@90% >4000m@8 0%Reduce rated power |
| 17 | Protection Grade | IP54 | |
| 18 |
Cabinet Dimensions (W*H*D) |
Approx. 2100*2300*1200 ( mm) |
|
| 19 | Weight | Approx. 2850kg | |
| 20 | External Communication | Ethernet, wireless 4G | |
| 21 | Protection Grade | IP54 | |
| 22 | Anti-corrosion Grade | Not less than C3 | |
| 23 | System Design Life | ≥10 years | |
|
24 |
External Electrical Interface |
AC input: three-phase four wire+PE AC output: three-phase four wire+PE Photovoltaic input: Two channels |
Note: Need to connect the N phase from the grid side to the N row in the cabinet to provide AC220V auxiliary power for the cabinet |
