Telecom Power System Supporting Wide AC Input Voltage Range from 90 to 300 Vac for Versatile Telecom Power Applications
Price:
358-2143 usd
MOQ:
1
Delivery Time:
7-10 working days
Brand:
ESTEL
Product Description
ET48150-001 2U Datasheet
Product Introduction

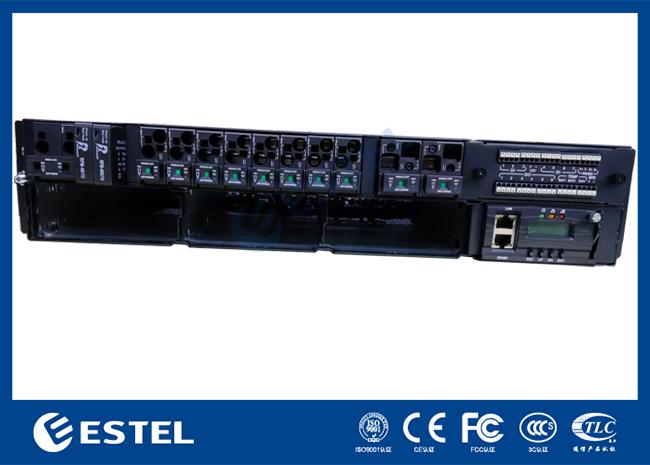

ET48150-001 sub-rack power supply with 2U height compact design can meet critic application needs of fiber and microwave transmission, access device and switch. The system maximum power is 150A, with AC/battery/load MCBs. The cables are front accessing.,
Feature
- Standard 19-inch width, versatile;
- 2U highly compact design, saving space and installation cost;
- Intelligent management, online remote maintenance, reduce site access and maintenance costs;
- Perfect battery management to extend battery life;
- Provides a variety of communication ports LAN/RS232/RS485 interface, LAN-SNMP, TCP/IP to achieve flexible networking and remote monitoring;
- The rectifier module and controller can be hot-swappable, convenient online maintenance;
- Wide AC input voltage range (90~300Vac)
Product Application
- Wireless base station;
- Network transmission;
- Base stations along expressways and rail transit.
Specification
| Category | ET48150-001 | |
| System | Dimension(mm) | 482.0(W)*350.0(D)*2U(H) |
| Weight | ≤10kg(without rectifier module) | |
| Cooling mode | Natural codling | |
| Installation mode | Installed on 19-inch rack or inside the cabinet | |
| IPGrade | IP20 | |
| Input Distribution |
Input Voltage | 90~300Vac(L-N) |
| Rated input voltage | 220Vac(L-N) | |
| Input capacity(AC) | 63A/2P | |
| AC SPD | 20kA140kA,8/20μs | |
| DC Distribution |
Output voltage | -42~-58VDC,rated value:-53.5VDC |
| Maximum capacity | 9kw (3×3kw) | |
| Battery connecion | 2*125A/1P | |
| Load breakers | BLVD:2*20A1P+6*10A1P | |
| Rectifier | Efficiency | ≥96%@peak value |
| Rated power | 3000W(lnput Voltage:200~290Vac) | |
| Working temperature | -40℃~+75℃(fully output below 50℃) | |
| Dimension | 105.5mm(VW)×291mm(D)×41.5mm(1U/H) | |
| Cooling mode | Forced cooling with fan | |
| Controller | Signal input | 4 Al (3 Battery temp.,1 ambient temp), 6 DI (SPD, 6 common DI) |
| Alarm output | 6 dry contact | |
| Communication port | LANRS232/RS485 interface,LAN-SNMP,TCP/IP | |
| Display mode | LCD | |
| Environment | Operating temperature | -40℃~+75℃(When operating a fullload,the temperature is not higher than 50℃) |
| Storage temperature | -40℃~+75℃ | |
| Operating humidity | 0%~95%(non-condensing) | |
| Altitude | 0~3000m (lf the altitude is within the range of 2000m to 3000m,the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|
Feature
- Standard 19-inch width, versatile;
- 2U highly compact design, saving space and installation cost;
- Intelligent management, online remote maintenance, reduce site access and maintenance costs;
- Perfect battery management to extend battery life;
- Provides a variety of communication ports LAN/RS232/RS485 interface, LAN-SNMP, TCP/IP to achieve flexible networking and remote monitoring;
- The rectifier module and controller can be hot-swappable, convenient online maintenance;
- Wide AC input voltage range (90~300Vac)
Product Application
- Wireless base station;
- Network transmission;
- Base stations along expressways and rail transit.
