Outdoor Cabinet Air Conditioner with 2500W Cooling Capacity and Inverter Technology Providing Temperature Control in Outdoor Enclosures
Price:
358-2143 usd
MOQ:
1
Delivery Time:
7-10 working days
Brand:
ESTEL
Product Description

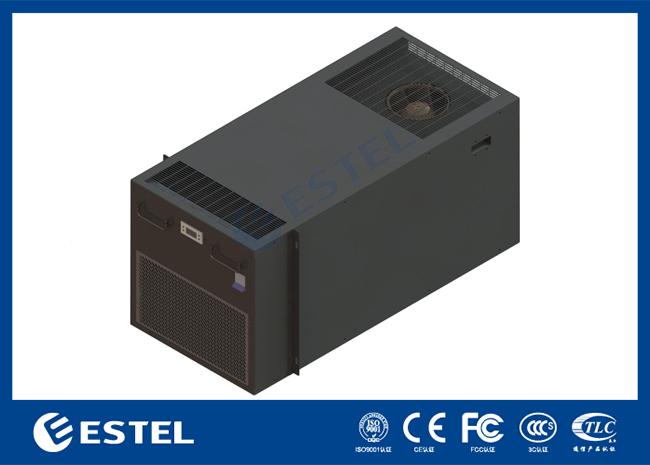

2500W AC Inverter Rack Air Conditioner
* Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
* Strict process control and famous brand components to ensure high quality and reliability of this product;
* R410A refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* Built-in condensate water evaporating device;
* Dry contact alarm output, NO/NC optional;
* EC FAN, inverter compressor, intelligent speed
Technical Parameters
| Product mode | LD.0025.AUBT.XS.3401 | unit |
| Dimensions (Including flange) | 940*483*355 | mm |
| Dimensions(Without flange) | 940*440*355 | mm |
| Weight | 55 | kg |
| Mounting method | In-rack Mounting | |
| Application temperature | -40-70 | ℃ |
| Working temperature | -20-45 | ℃ |
| Input voltage | AC 220V±15%50/60Hz | |
| Cooling capacity L35/L35@50Hz | 2500 | w |
| Power consumption L35/L35@50Hz | 830 | w |
| Condensing water evaporation power | 500 | w |
| Airflow | 550 | m³/h |
| IP grade | IP 5X | |
| Refrigerant | R410A | |
| Noise | 60 | dB(A) |
| Surface treatment | Outdoor powder-coated black orange stripe |
Product Dimension

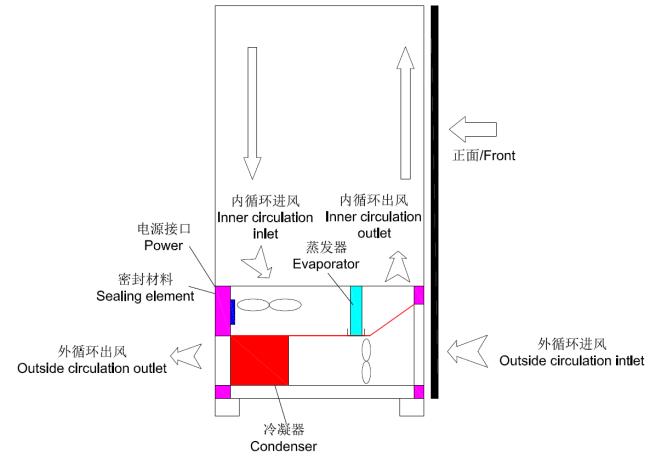

Installation instructions
1. Inlet and outlet opening rate should be greater than 60%, to ensure adequate circulation of air, which is to extend the service life and reduce maintenance frequency is very important.
2. The air inlet and outlet of the protective cover should prevent short circuit of air duct, so that the air-con can get the best cooling effect.
3. Due to the opening of the housing problems caused by the fault, not in the scope of the warranty.
