Network RJ45 1000M POE Surge Arrestor In-Line 10/100/1000Mbps Lightni Protector

Overview of Network RJ45 1000M POE Surge Arrestor

This Power over Ethernet (PoE) Surge Protector is an essential safeguard especially for modern, power-over-data-line network infrastructure. It provides robust defense for critical connected devices—such as outdoor wireless access points, bridges, and security cameras—where the Ethernet cable itself becomes a potential pathway for damaging electrical surges. It is suitable for installation at theinterface between LPZ1-LPZ3 in the lightning protection zone.It providestwo-level protection to protect network devices from overvoltage andovercurrent caused by lightning and industrial interference.It is widelyused in lightning protection of wireless bridge equipment.This product isused for indoor installation.

Engineered for integration into a structured lightning protection system, it is typically installed at the building entry point, acting as a protective boundary between external and internal network zones. Its core function is to intercept and safely dissipate high-energy transients induced by lightning strikes and industrial interference before they can reach and destroy sensitive electronics.

The protector features a sophisticated two-stage defense mechanism. The primary stage handles extreme surge currents with rapid clamping, while a secondary stage offers precise voltage limitation and noise filtration, ensuring both equipment safety and signal integrity. This makes it indispensable for maintaining network reliability in telecommunications, industrial automation, smart transportation, and security applications where uptime is critical.

Key Features of Network RJ45 1000M POE Surge Arrestor

• Max Transfer Rate: 1000Mbps

• Insertion Loss: ≤0.5dB

• Model: POE-MH

• Interface Type: RJ45

• Retardant Rating: UL94V-0

• Dimensions: 87mm × 50mm × 35mm

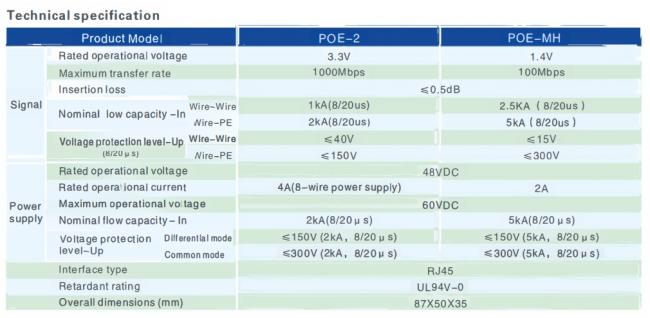

Electrical Specifications of Network RJ45 1000M POE Surge Arrestor


Application of Network RJ45 1000M POE Surge Arrestor
