DC48V Smart Power System with Remote Monitoring and Control for Telecommunication
Product Overview of DC48V Smart Power System
The ET4860-M3J21 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC single-phase input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 6kw, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
Featuring a modular and redundant design, the system supports up to 2*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 6U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.
Power Distribution of DC48V Smart Power System
| AC Power Distribution | Input mode | 220VAC single-phase, 63A/1P | ||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
| DC Power Distribution | Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 6kw(2*3kw, N+1 redundancy) | |||
| Battery breakers | 1*100A/1PN | |||
| Load breakers | BLVD: 2*32A/1PN+2*63A/1PN | |||
Rectifier of DC48V Smart Power System
Input voltage: 85VAC ~ 300VAC, rated 220VAC
Efficiency: >96%
Rated power: 3000W (176–300VAC)
Working temperature: –40℃ ~ +75℃ (full output below 50℃)
Dimension: 106.5mm(W) × 286mm(D) × 41.5mm(H) (1U/H)
Weight: ≤2kg
Cooling mode: Forced cooling
Power factor: ≥0.99
THD: ≤5%
DC output: –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller of DC48V Smart Power System
Model: MC2900
Signal input: 4 AI (3 ambient temp, 1 humidity), 8 DI
Alarm output: 8 dry contact
Communication port: RS232/485, SNMP
Display mode: LCD
Environment of DC48V Smart Power System
Operating temperature: –40℃ ~ +65℃ (full output below 50℃)
Storage temperature: –40℃ ~ +70℃
Operating humidity: 5% ~ 95% (non-condensing)
Altitude: 0 ~ 3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

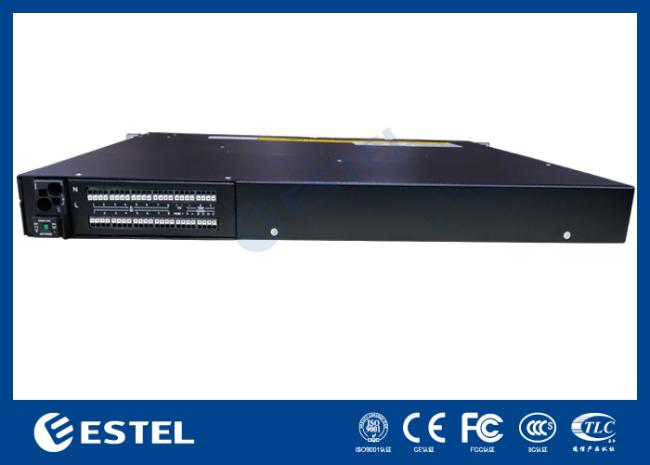

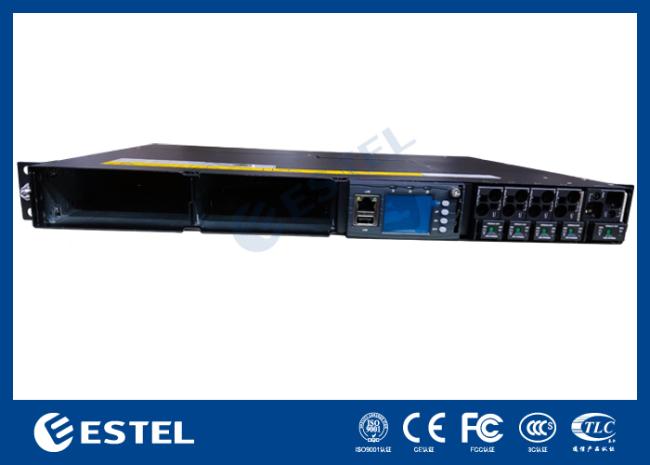

Views of DC48V Smart Power System
