Product Overview of 2U Modular Telecom DC Power System Integration
The ET4890-M3F32 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC single-phase input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 9kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.

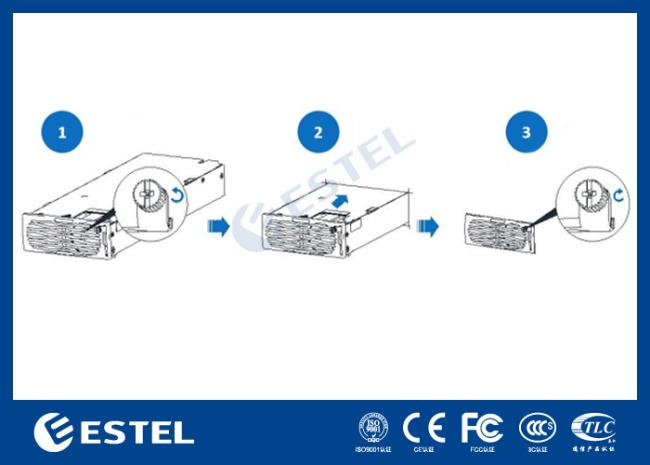

Featuring a modular and redundant design, the system supports up to 3*1.74kw rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 2U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.
The DC distribution panel is equipped with 1*63A 1P battery circuit breakers and includes Battery Low Voltage Disconnect (BLVD) functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 2 analog sensor inputs, 8 digital status inputs, and 2 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
Application of 2U Modular Telecom DC Power System Integration
-
Remote unattended monitoring stations
-
Industrial control cabinets
-
Office environments requiring silent operation
-
Hybrid energy sites with solar/wind integration
-
Lithium-ion battery-based backup systems
Technical Specification of 2U Modular Telecom DC Power System Integration
| AC Power Distribution |
Input mode
|
220VAC single-phase, 40A/2P | ||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
| DC Power Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 5.22kw(3*1.74kw, N+1 redundancy) | |||
| Battery breakers | 1*63A/1P | |||
| Load breakers |
BLVD: 2*10A/1P+2*16A/1P+2*20A/1P+1*40A/1P |
|||
| Rectifier Module | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >94% | |||
| Rated power | 1740W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 33A | |||

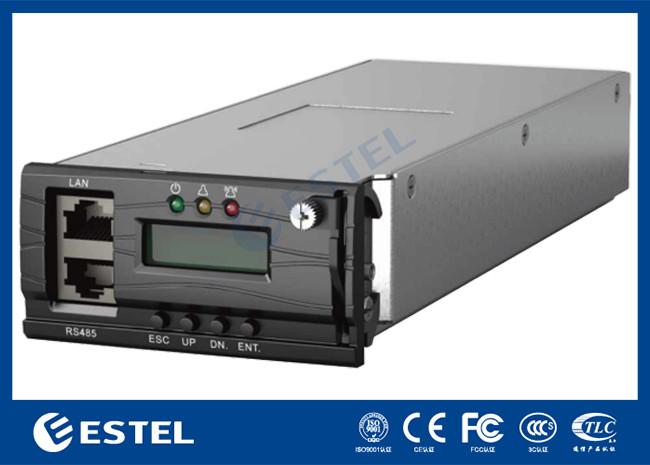

Controller of 2U Modular Telecom DC Power System Integration
-
Model: MC2600
-
Signal input: 2 AI (2 ambient temp), 8 DI
-
Alarm output: 2 dry contact
-
Communication port: RS232/485, SNMP
-
Display mode: LCD
Application Environment of 2U Modular Telecom DC Power System Integration
-
Operating temperature: –40℃ ~ +65℃ (full output below 50℃)
-
Storage temperature: –40℃ ~ +70℃
-
Operating humidity: 5% ~ 95% (non-condensing)
-
Altitude: 0 ~ 3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

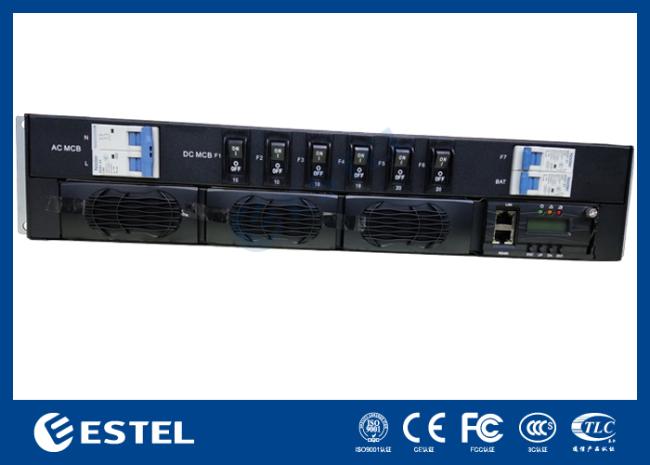

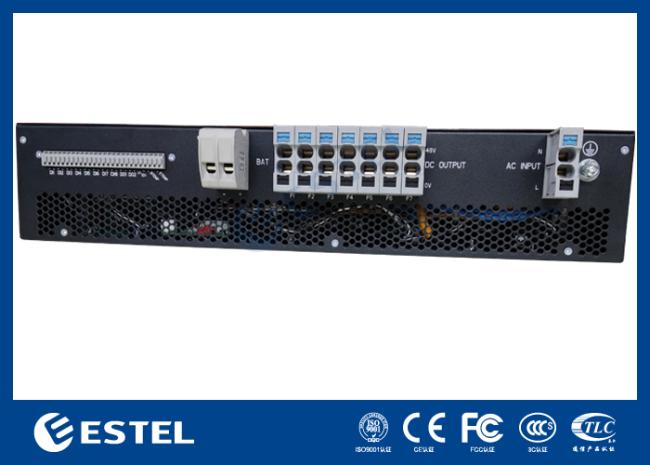

Views of 2U Modular Telecom DC Power System Integration
