DC48V 3U BTS Telecom Rectifier Systems with RS485 Remote Monitoring
DC48V 3U BTS Telecom Rectifier Systems with RS485 Remote Monitoring

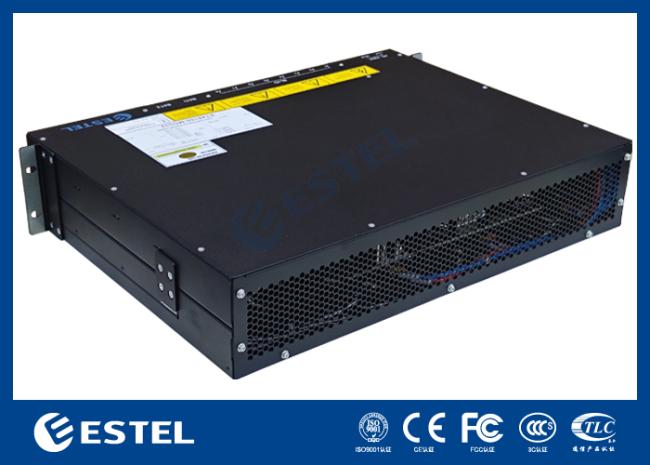

Product Overview of 3U BTS Telecom Rectifier System
The ET48300-M5E63 is a DC rack power system developed by ESTEL, provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 380VAC (compatible for single-phase and three-phase) and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 18kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
The DC distribution panel is equipped with 1*250A battery circuit breakers and includes LLVD & BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
AC Specification of 3U BTS Telecom Rectifier System
Input mode: 380VAC, compatible with both single-phase and three-phase configurations
Input frequency: 45Hz to 65Hz (rated 50Hz/60Hz)
DC Specification of 3U BTS Telecom Rectifier System
Output voltage: -43V to -58VDC (rated -53.5VDC)
Maximum capacity: 18kW (6 x 3kW rectifier modules, N+1 redundancy)
Battery breaker: 1 x 250A
Load breakers of 3U BTS Telecom Rectifier System
LLVD: 1 x <125A/1PN (reserved)
BLVD: 6 x ≤63A/1PN + 2 x ≤125A/1PN (reserved)
Rectifier Module of 3U BTS Telecom Rectifier System
Input voltage: 85VAC ~ 300VAC (rated 220VAC)
Efficiency: >96%
Rated power: 3000W (176~300VAC)
Cooling mode: Forced cooling
Power factor: ≥0.99
THD: ≤5%
DC output: -43 ~ -58VDC (rated -53.5VDC), maximum 55A
| Type | ET48300-M5E63 | |||
| System | Dimension | 482.6(W)*350.0(D)*3U(H) | ||
| Weight | ≤15kg (without rectifiers) | |||
| Cooling mode | Natural cooling | |||
| Installation mode | Installed on 19-inch rack or inside the cabinet | |||
| Cabling mode | Top inlet and top outlet | |||
| Maintenance mode | Front maintenance, support module grade change | |||
| Protection level | IP20 | |||
| AC Distribution |
Input mode | 380VAC, compatible for single-phase and three-phase | ||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 18kW(6*3kw, N+1 redundancy) | |||
| Battery breakers | 1*250A | |||
| Load breakers |
LLVD: 1*＜125A/1PN(reserved) BLVD: 6*≤63A/1PN+2*≤125A/1PN(reserved) |
|||
| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Signal input | 3 AI (3 ambient temp), 7 DI | ||
| Alarm output | 6 dry contact | |||
| Communication port | RS232/485, SNMP | |||
| Display mode | LCD | |||
| Environment | Operating temperature |
-40℃ ~ +65℃ (full output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||

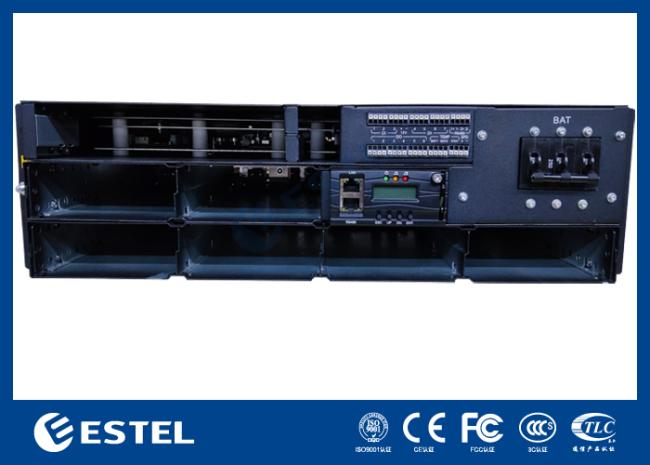

Structure of 3U BTS Telecom Rectifier System
