Product Description

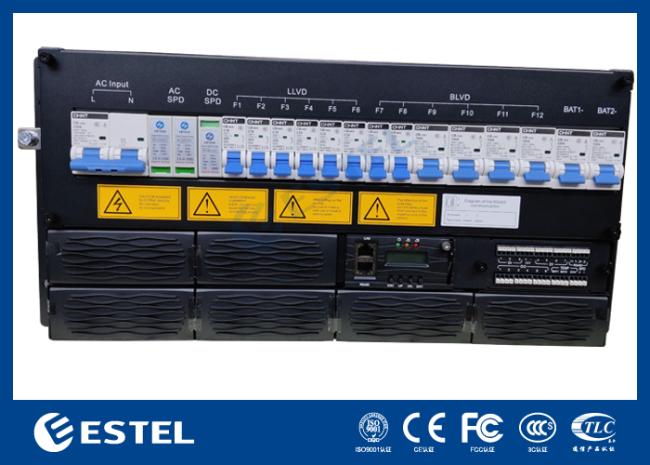

ET48300 19 Inch Telecommunication Power System with RS485 Remote Monitoring
Product Overview of 18kw 96% Efficiency Telecommunication Power System
The ET48300-M5S65 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC 125A/2P (dual live-line supported) input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 18kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
The DC distribution panel is equipped with 2*125A/1P battery circuit breakers and includes LLVD & BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
Rectifier Module of 18kw 96% Efficiency Telecommunication Power System
Featuring a modular and redundant design, the system supports up to 6*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 3U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.
of 18kw 96% Efficiency Telecommunication Power System
The ET48300-M5S65 DC rack power system provides a high-capacity, resilient DC power solution designed specifically for telecommunications infrastructure, data center operations, and industrial applications requiring dependable DC power distribution. It accepts 220VAC 125A/2P (dual live-line supported) input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 18kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
The DC distribution panel is equipped with 2*125A/1P battery circuit breakers and includes LLVD & BLVD functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 7 digital status inputs, and 6 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
Rectifier Module of 18kw 96% Efficiency Telecommunication Power System
Featuring a modular and redundant design, the system supports up to 6*3000W rectifier modules configured for N+1 redundancy, with each compact module weighing under 2kg. The rectifiers utilize forced-air cooling, achieve a near-unity power factor (≥0.99), and maintain low total harmonic distortion (THDi ≤5%) for efficient and clean power conversion. With front-access maintenance, top-panel cabling, and IP20 ingress protection, the 3U rack-mountable chassis emphasizes operational safety, ease of service, and straightforward integration into standard 19-inch cabinets.
Advantages of 18kw 96% Efficiency Telecommunication Power System
Wide range AC input (85VAC~300VAC) - Operates through severe brownouts and overvoltage events without switching to battery
>96% efficiency – Minimizes heat generation and electricity costs
3000W output from 176~300VAC input – High power density in 1U form factor
-40℃ to +75℃ operating range – Full rated output below 50℃, reliable in extreme climates
≥0.99 power factor & ≤5% THD – Grid-friendly operation with minimal harmonic distortion
Specifications of 18kw 96% Efficiency Telecommunication Power System
| Type | ET48300-M5S65 | |||
| System | Dimension | 482.6(W)*350.0(D)*5U(H) | ||
| Weight | ≤25kg (without rectifiers) | |||
| Cooling mode | Natural cooling | |||
| Installation mode | Installed on 19-inch rack or inside the cabinet | |||
| Cabling mode | Top inlet and top outlet | |||
| Maintenance mode | Front maintenance, support module grade change | |||
| Protection level | IP20 | |||
| AC Distribution |
Input mode | 220VAC 125A/2P (dual live-line supported) | ||
| Input frequency | 45~65Hz, rated value: 50Hz/60Hz | |||
|
AC SPD
|
20kA/40kA, 8/20μs | |||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
| Maximum capacity | 18kW(6*3kw, N+1 redundancy) | |||
| Battery breakers | 2*125A/1P | |||
| Load breakers |
LLVD: 2*63A/1P+4*100A*1P BLVD: 3*16A/1P+3*32A/1P |
|||
| DC SPD |
10kA/20kA, 8/20μs |
|||
| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Signal input | 3 AI (3 ambient temp), 7 DI | ||
| Alarm output | 6 dry contact | |||
| Communication port | RS232/485, SNMP | |||
| Display mode | LCD | |||
| Environment | Operating temperature |
-40℃ ~ +65℃ (full output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||

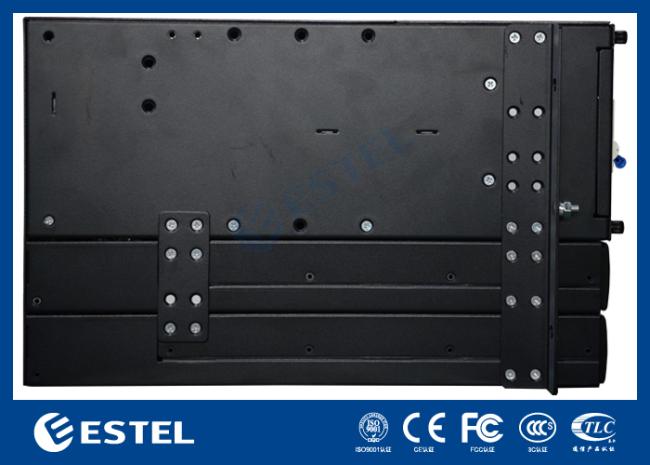

Side Structure of 18kw 96% Efficiency Telecommunication Power System
Package of 18kw 96% Efficiency Telecommunication Power System
