6U 36kw Integrated Rectifier Power System Support RS485 Online Management
6U 36kw Integrated Rectifier Power System Support RS485 Online Management
Product Overview of ET48600 48VDC 600A Telecom Power System
The 6U 36kW Integrated ET48600 DC Rack Power System represents a compact, carrier-grade DC power conversion solution tailored for telecommunications central offices, mid-to-large scale data centers, and industrial settings requiring uninterrupted DC power. Operating from a single-phase 220V AC without a built-in circuit breaker, it employs rear copper busbars for wiring and provides fine-adjustable DC output ranging from –43V to –58V, with a nominal setting of –53.5V. With a peak capacity of 36kW, the system consistently achieves conversion efficiencies exceeding 96% across a broad load spectrum—lowering both electricity costs and cooling demands.

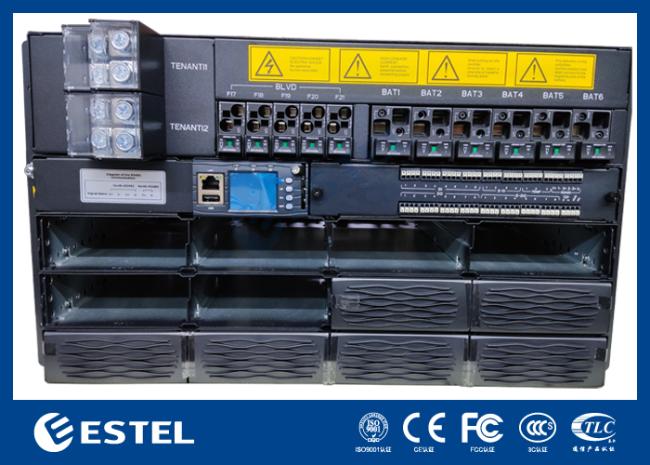

Structure of ET48600 48VDC 600A Telecom Power System
-
6U height – fits standard 19-inch racks
-
Natural cooling – no fans, silent operation, zero dust ingress
-
Top inlet & top outlet cabling – clean front access, no floor trench required
-
Front maintenance & module-grade hot-swap – all service from front, no rear clearance needed
-
IP20 protection – safe for indoor equipment rooms and shelters
AC Input of ET48600 48VDC 600A Telecom Power System
-
Single-phase 220VAC – no built-in circuit breaker
-
Rear copper busbar wiring – direct distribution for multi-cabinet systems
-
45~65Hz frequency – generator and grid compatible
DC Output of ET48600 48VDC 600A Telecom Power System
-
-43~-58VDC output (rated -53.5VDC)
-
36kW maximum capacity – 12 x 3kW rectifier modules
-
N+1 redundancy – full output with 11 modules
Battery & Load Distribution of ET48600 48VDC 600A Telecom Power System
-
6 x 125A/1P battery breakers – supports up to 6 independent battery strings
-
LLVD1 & LLVD2: 300A terminal blocks – connect external expansion distribution boxes
-
BLVD: 3 x 6A/1PN + 1 x 10A/1PN + 1 x 16A/1PN

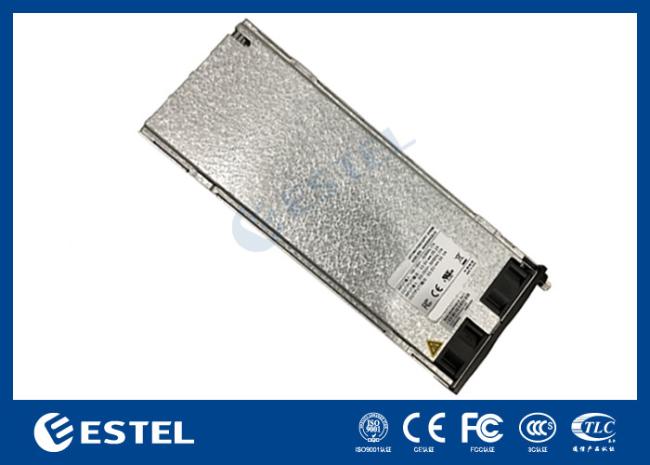

Rectifier Module of ET48600 48VDC 600A Telecom Power System
-
85~300VAC ultra-wide input – works through severe grid dips
-
>96% efficiency – low heat, low operating cost
-
3000W in 1U – high power density
-
-40℃~+75℃ operation – full output below 50℃
-
Forced cooling – independent from chassis natural cooling
![]()
Controller and I/O Board of ET48600 48VDC 600A Telecom Power System
-
3 x AI (ambient temperature monitoring)
-
8 x DI + 4 x E-DI – 12 digital inputs total
-
8 x DO + 8 x E-DO – 16 alarm outputs total
-
RS485 & SNMP – dual protocol remote management
-
LCD display – local status and configuration
| Type | ET48600 | |||
| System | Dimension | 482.0W)*350.0(D)*6U(H) | ||
| Weight | ≤30kg (without rectifiers) | |||
| Cooling mode | Natural cooling | |||
| Installation mode | Installed on 19-inch rack | |||
| Cabling mode | Top inlet and top outlet | |||
| Maintenance mode | Front maintenance, support module grade change | |||
| Protection level | IP20 | |||
| AC Distribution |
Input mode
|
Single-phase 220V without circuit breaker, rear copper busbar wiring | ||
|
Input frequency |
45~65Hz, rated value: 50Hz/60Hz |
|||
| DC Distribution |
Output voltage | -43~-58VDC, rated value: -53.5VDC | ||
|
Maximum capacity
|
36kw(12*3kw, N+1 redundancy) | |||
|
Battery breakers
|
6*125A/1P | |||
| Load breakers |
LLVD1: 300A terminal block, using an expansion distribution box LLVD2: 300A terminal block, using an expansion distribution box BLVD: 3*6A/1PN+1*10A/1PN+1*16A/1PN |
|||
| Rectifier | Input voltage | 85VAC～300VAC, rated 220VAC | ||
| Efficiency | >96% | |||
| Rated power | 3000W(176~300VAC) | |||
| Working temperature | -40℃~+75℃(fully output below 50℃) | |||
| Dimension | 106.5mm(W)×286mm(D)×41.5mm(1U/H) | |||
| Weight | ≤2kg | |||
| Cooling mode | Forced cooling | |||
| Power factor | ≥0.99 | |||
| THD | ≤5% | |||
| DC output | –43 ~ –58VDC, rated –53.5VDC, maximum 55A | |||
| Controller | Model | MC2600 | ||
| Signal input | 3 AI(3ambient temp) ,8 DI, 4 E-DI | |||
| Alarm output | 8 DO, 8 E-DO | |||
| RS485 | Supported | |||
| SNMP | Supported | |||
| Display mode | LCD | |||
| Environment | Operating temperature |
-40℃ ~ +65℃ (full output below 50℃) | ||
| Storage temperature | -40℃~+70℃ | |||
| Operating humidity | 5%~95%(non-condensing) | |||
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
|||
