24U Outdoor Telecom Rectifier Cabinet with 12kw DC Power Distribution

Product Overview of 24U Outdoor 12kw DC Power Cabinet

The ET-series 24U telecom power cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 24U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time. With a DC48V rectifier system, the cabinet is able to provide 18kw power distribution for telecom equipment inside the cabinet and protection, while controller can monitor and management equipment situations and events online.

The cabinet Integrated provides a high-density, carrier-class power platform engineered to deliver uninterrupted DC power for telecommunications central offices, mid-to-large data centers, and industrial facilities. Operating from a three-phase 380V AC input (with no internal circuit breaker), it supplies a precisely regulated DC output adjustable between –43V and –58V, typically set at –53.5V. With a maximum output of 18kW, the unit achieves conversion efficiencies exceeding 96% across most of its operating range, significantly reducing energy consumption and the associated costs of cooling.

Features of 24U Outdoor 12kw DC Power Cabinet

● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.

● Support remote management, improve security and minimize customer’s operation cost

Rectifier Specification of 24U Outdoor 12kw DC Power Cabinet

AC Input(reserved)

• Voltage: Three-phase 380VAC

• MCB: 1 x 63A 3P+N

• Frequency: 45Hz to 65Hz (rated 50Hz/60Hz)

• SPD: 20kA/40kA, 8/20μs

DC Distribution

• Output voltage: -43 to -58VDC (rated -53.5VDC)

• Maximum capacity: 12kW (4 x 3kW modules, N+1 redundancy)

• Battery breaker: 2 x 125A 1P

Rectifier Module

• Input voltage: 85VAC ~ 300VAC (rated 220VAC)

• Efficiency: >96%

• Rated power: 3000W (176~300VAC)

• Power factor: ≥0.99

• THD: ≤5%

• DC output: -43 ~ -58VDC (rated -53.5VDC), maximum 55A

Specification of 24U Outdoor 12kw DC Power Cabinet

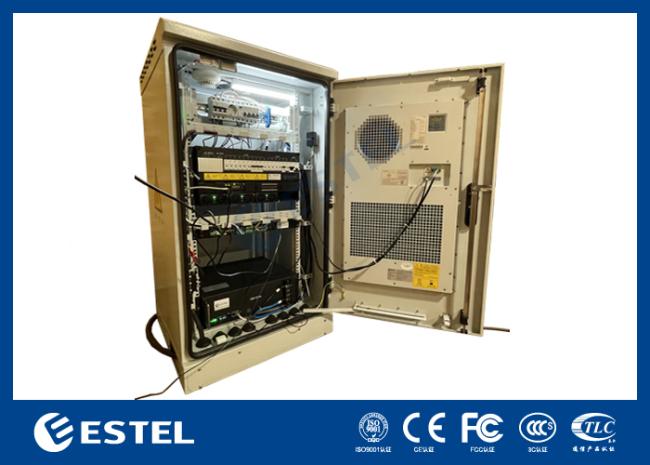

Integration of 24U Outdoor 12kw DC Power Cabinet

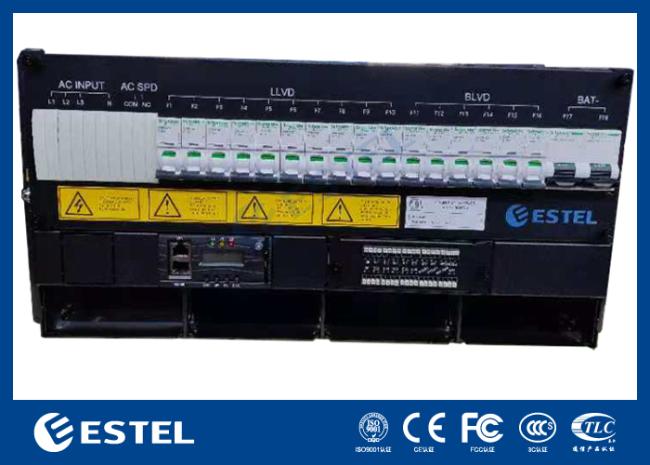

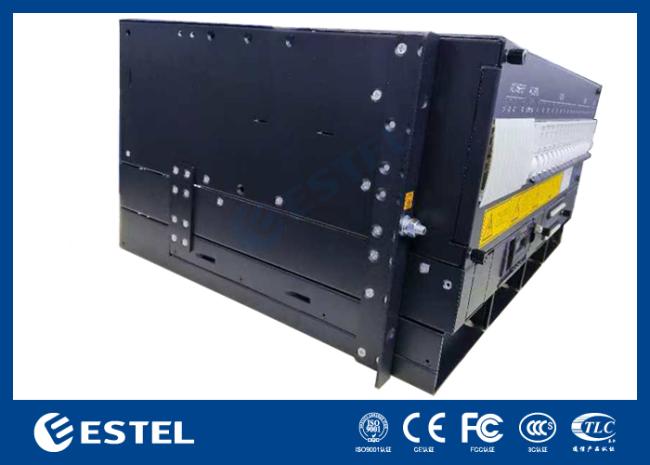

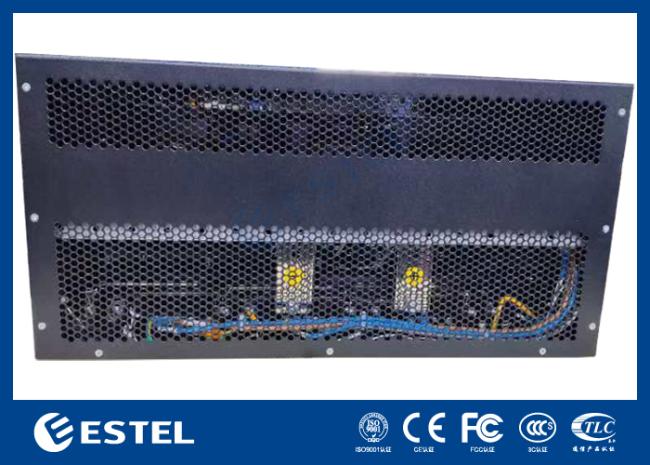

Rectifier System of 24U Outdoor 12kw DC Power Cabinet
