Product Overview of 8U IP55 Pole Mount Cabinet
This 8U pole mount outdoor telecom cabinet is designed for space-constrained outdoor deployments. Constructed from 1.2mm galvanized sheet with a single-layer structure, it features polyester powder coating in RAL7035 for excellent corrosion and UV resistance. The cabinet measures 500mm × 600mm × 450mm (H×W×D) and offers 8U of internal 19-inch rack space. The IP55 protection rating ensures dust resistance and protection against low-pressure water jets, making it suitable for various outdoor environments. The anti-theft three-point locking system and inner hinge design provide security and a clean appearance. Cable routing is through the bottom, and front door access allows for easy front-side maintenance without rear clearance.
For thermal management, the cabinet is equipped with 2 fans controlled by a thermal controller, operating on 220VAC 50Hz to maintain optimal internal temperatures. A modular power socket (American standard) is included for convenient AC power distribution. Optional features include a 48VDC LED light for nighttime servicing and an access control system for enhanced security. The pole-mounted design allows rapid deployment on street poles, telecommunication towers, or roadside infrastructure. Its compact footprint and customizable dimensions make it ideal for applications where space is at a premium.
Features of 8U IP55 Pole Mount Cabinet
● High protection grade: IP55

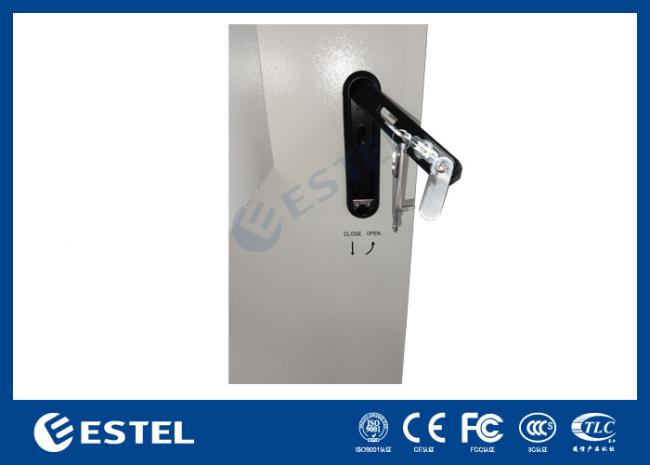

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Adopt highly efficient cooling unit: air conditioner
● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
● Support remote management, improve security and minimize customer’s operation cost
Application of 8U IP55 Pole Mount Cabinet
5G micro cell base stations
Street-level Wi-Fi access points
Outdoor security camera hubs
Traffic signal controllers
Remote industrial IoT gateways
Smart city environmental sensors
Rural telecom access nodes
Highway communication relay points
Specification of 8U IP55 Pole Mount Cabinet
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | 8U Pole Mount Outdoor telecom cabinet | |
| Protection Level | IP55 | ||
| External Dimension | 500*600*450mm(H*W*D), can be customized | ||
| Internal Space | 1*19 inch 8U | ||
| Material | Material: Galvanized sheet, single layer | ||
| Coating | Polyester powder coating | ||
| Color | RAL7035 | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Pole mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One front door, front maintenance | ||
| Cooling | Fan | 2*fan, 1* thermal controller, 220VAC, 50Hz | |
| Socket | 1 modular power socket, American standard socket | ||
| Others | Optional 48VDC LED, access control | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |

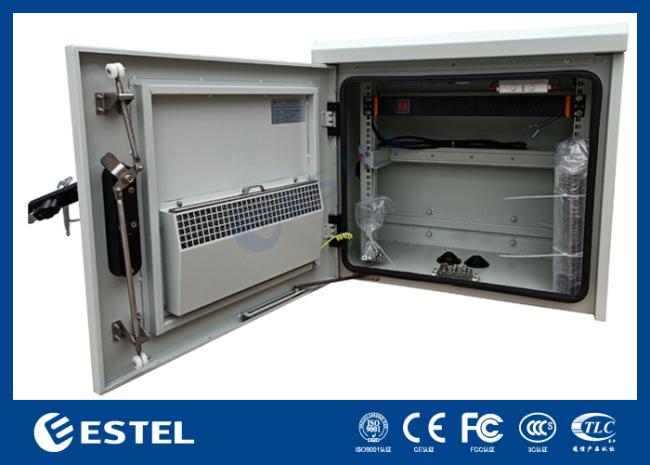

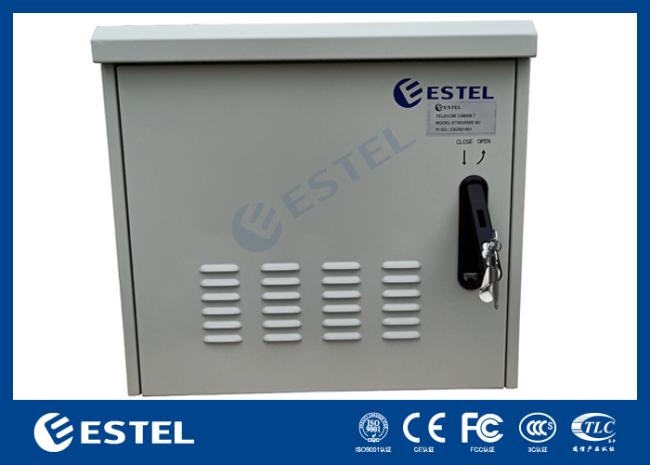

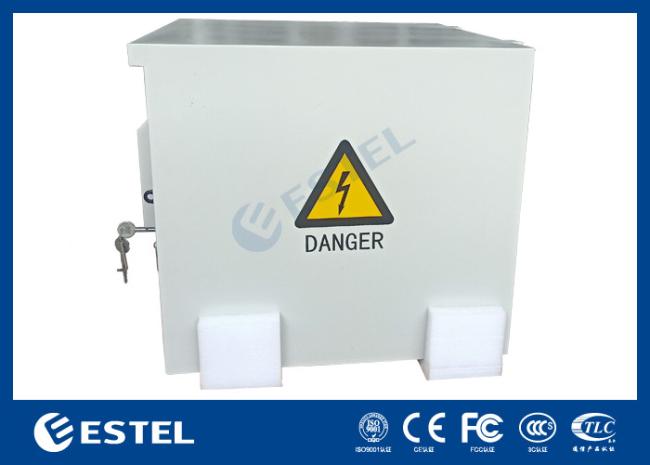

Details of 8U IP55 Pole Mount Cabinet
