16U Outdoor Cabinet for Telecommunication Infrastructure with Air Conditioner Cooling
16U Outdoor Cabinet for Telecommunication Infrastructure with Air Conditioner Cooling
Product Overview of 16U Telecommunication Cabinet
-
Type: Outdoor dual-cabinet, 16U telecom cabinet
-
Protection level: IP54 / IP55 / IP65 (selectable)
-
External dimension (H×W×D): 1000mm × 650mm × 650mm
-
Plinth: 150mm height
-
Internal space: 1 x 19-inch, 16U
Material & Finish of 16U Telecommunication Cabinet
-
Material: Galvanized sheet plate, single layer
-
Insulation: 20mm PEF insulation
-
Coating: Polyester powder coating
-
Color: RAL7035 (customizable)
Access & Security of 16U Telecommunication Cabinet
-
Lock system: Anti-theft three-point locking system
-
Hinge: Inner hinge
-
Maintenance access: One left door + one right door, front maintenance
Installation & Cable Routing of 16U Telecommunication Cabinet
-
Installation: Pole mounted
-

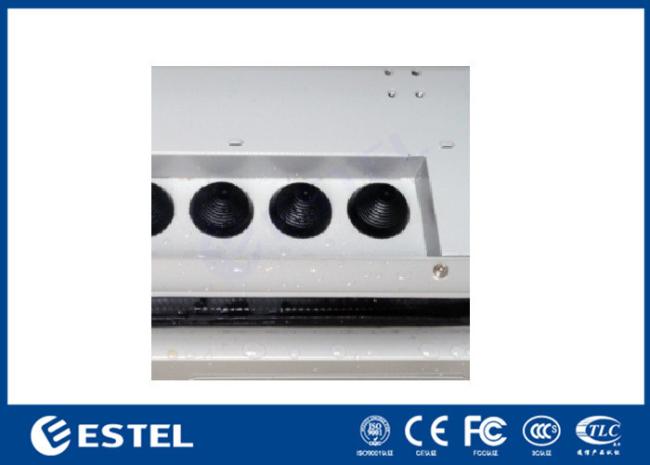

Cable routing: Cable in and out from bottom of cabinet
Cooling & Electrical of 16U Telecommunication Cabinet
-

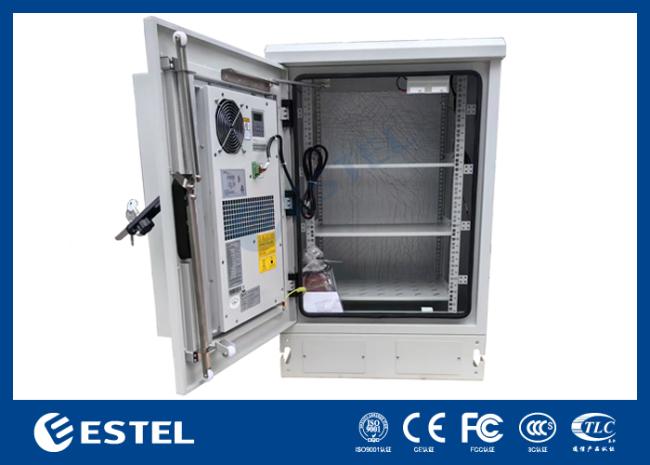

Cooling: Optional air conditioner – 230VAC, 50Hz, 500W
-
Others: 220VAC 50Hz LED lamp for internal lighting
Key Features
-
Dual-cabinet design – separates power and communication equipment
-
IP54 to IP65 protection – dustproof and waterproof for outdoor use
-
20mm PEF insulation – reduces heat transfer and condensation
-
150mm plinth – elevates cabinet to avoid ground moisture
-
Pole mounted – easy deployment on street poles or towers
-
Three-point locking – anti-theft security for remote sites
-
Optional 500W AC air conditioner – active cooling for high-temperature environments
-
LED lamp – illuminates interior for night maintenance
Application Scenarios
-
5G street-level micro cells
-
Rural telecom base stations
-
Outdoor Wi-Fi hotspots
-
Traffic signal control cabinets
-
Smart city sensor hubs
-
Remote monitoring stations
-
Pole-mounted edge computing nodes
Specification
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor Daul-cabinet 16U Telecom Cabinet | |
| Protection Level | IP54/IP55/IP65 | ||
| External Dimension | 1000mm*650mm*650mm(H*W*D) | ||
| Plinth | 150mm height | ||
| Internal Space | 1*19 inch 16U | ||
| Material |
Material: Galvanized sheet plate, single layer, with 20mm PEF insulation |
||
| Coating | Polyester powder coating | ||
| Color | RAL7035(customized) | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Pole mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One left door, one right door, front maintenance | ||
| Cooling | Air Conditioner |
230VAC, 50Hz, 500W(optional) |
|
| Others |
220VAC 50HZ LED lamp |
||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |
