Customized 5.22kw DC Power Supply Cabinet for Basement Station Telecommunication

Overview of 5.22kw DC Power Supply Cabinet

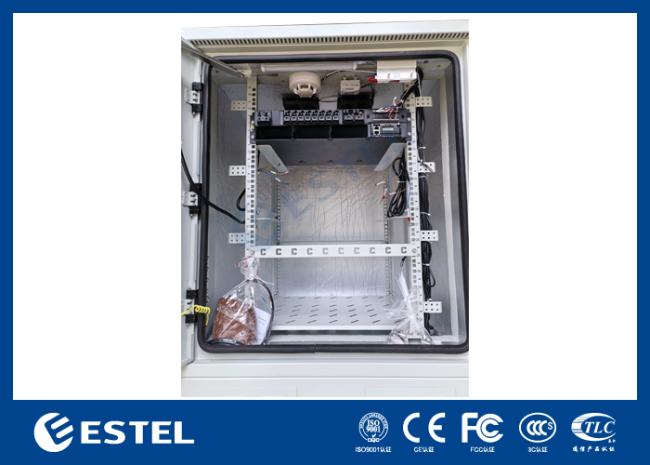

Designed for outdoor telecommunications applications, the 5.22kW DC Power Supply Cabinet provides uninterrupted power protection, shielding customer equipment from both electrical disturbances and severe environmental conditions. The cabinet accommodates telecom equipment occupying up to 16U of rack space and simultaneously supplies power to both active and passive telecom devices. Equipped with a DC 48V rectifier system, it delivers up to 5.22kW of power distribution for internal telecom equipment and associated protection systems. A 500W air conditioner combined with thermal insulation cotton effectively dissipates heat generated by both the equipment and the surrounding environment, maintaining optimal operating temperatures inside the cabinet.

The cabinet offers an integrated and flexible power supply that provides a reliable DC power to telecom base stations, data centers, and industrial facilities. Operating from a single-phase 220V AC input, it provides a tightly regulated DC output adjustable between –43V and –58V (typically set at –53.5V), while ensuring comprehensive protection for the power system. With a maximum output capacity of 5.22kW, the system achieves conversion efficiencies exceeding 96% across most of its load range, significantly lowering energy consumption and reducing associated cooling costs.

Product Introduction of 5.22kw DC Power Supply

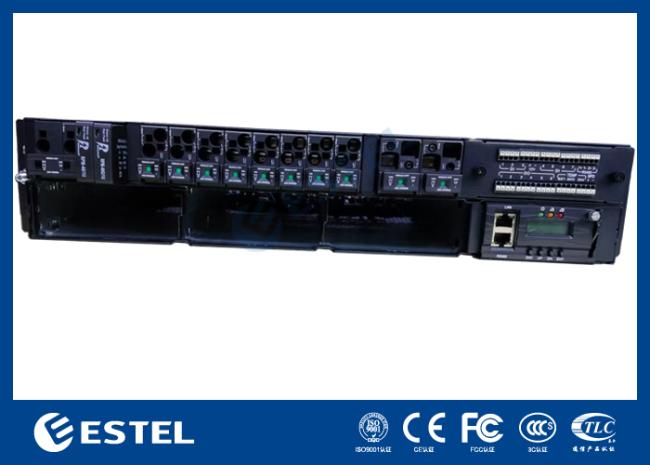

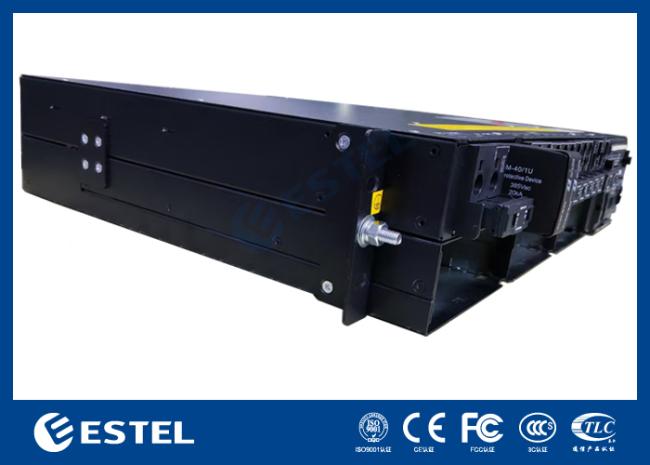

The 2U 5.22kw DC power distribution system delivers reliable 48V rectification with N+1 redundancy, designed for telecom, industrial, and renewable energy applications.

Key Specifications of 5.22kw DC Power Supply

• System Power: 1 x 5.22kW DC48V rectifier system in 2U form factor

• Output Capacity: 5.22kW total, consisting of 3 x 1.74kW rectifier modules with N+1 redundancy

• Display: LCD for real-time monitoring and configuration

Monitoring & Control of 5.22kw DC Power Supply

• Analog Inputs (AI): 3 total – 2 for battery temperature, 1 for ambient temperature

• Digital Inputs (DI): 7 for external status monitoring

• Digital Outputs (DO): 6 for alarm and control signaling

Communication of 5.22kw DC Power Supply

• Protocols: RS485 and SNMP

• Integration: Easily connects to existing network management systems (NMS) or building management systems (BMS)

Key Advantages of 5.22kw DC Power Supply

• High reliability: N+1 redundancy ensures uninterrupted operation even if one module fails

• Compact design: 2U height saves valuable rack space

• Comprehensive monitoring: LCD + AI/DI/DO enable full visibility and alarm management

• Flexible integration: RS485/SNMP supports remote monitoring and control

Application Scenarios of 5.22kw DC Power Supply

• 5G telecom base stations

• Enterprise network rooms

• Solar off-grid systems

• Industrial control cabinets

• Datacom and access networks

Specification of of 5.22kw DC Power Supply Cabinet
