Product Description for Outdoor Energy Storage Cabinet

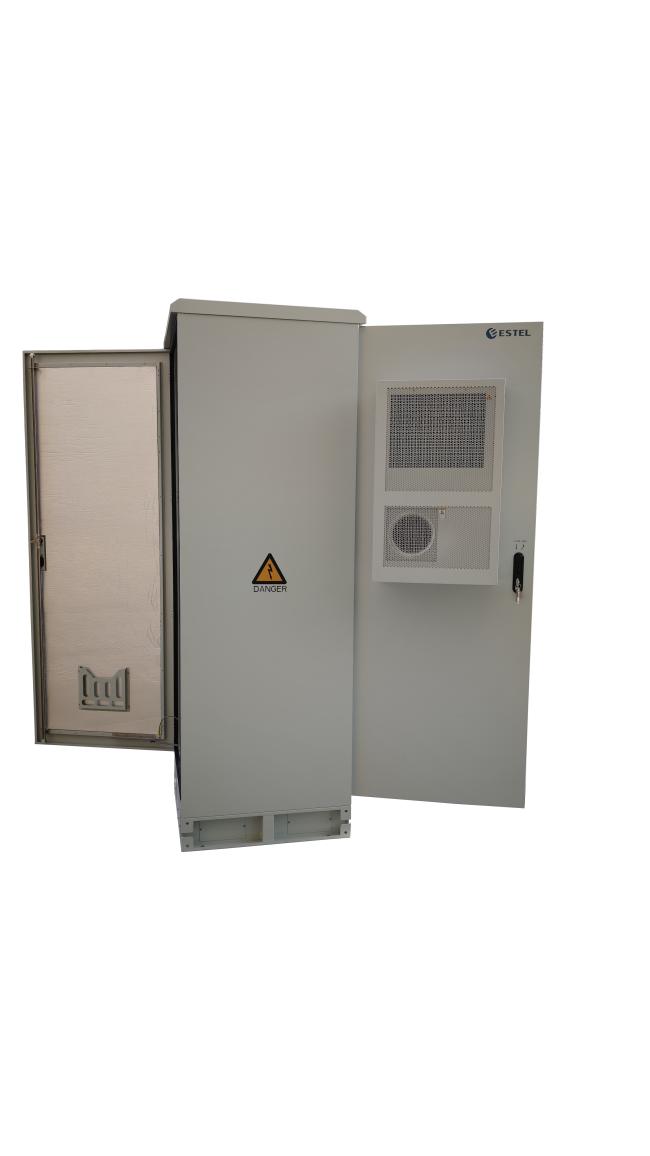

This outdoor integrated energy storage cabinet is designed for telecom backup power, distributed energy storage and outdoor power support applications that require secure enclosure protection, thermal management and organized internal installation. Based on the product images, the cabinet adopts a tall single-bay structure with a full-height front and rear access door, a side-mounted air conditioner and a vertically arranged internal rack for layered installation of battery and power equipment. The interior layout is divided into upper power/control space and lower battery installation space, allowing a compact yet orderly arrangement for outdoor deployment.
Key Features for Outdoor Energy Storage Cabinet
• Outdoor single bay cabinet structure for integrated power and battery installation
• Full-height front and rear opening door for easy service and front access maintenance
• Side mounted air conditioner for active internal temperature control
• Multi-layer internal rack layout for battery modules and upper control equipment

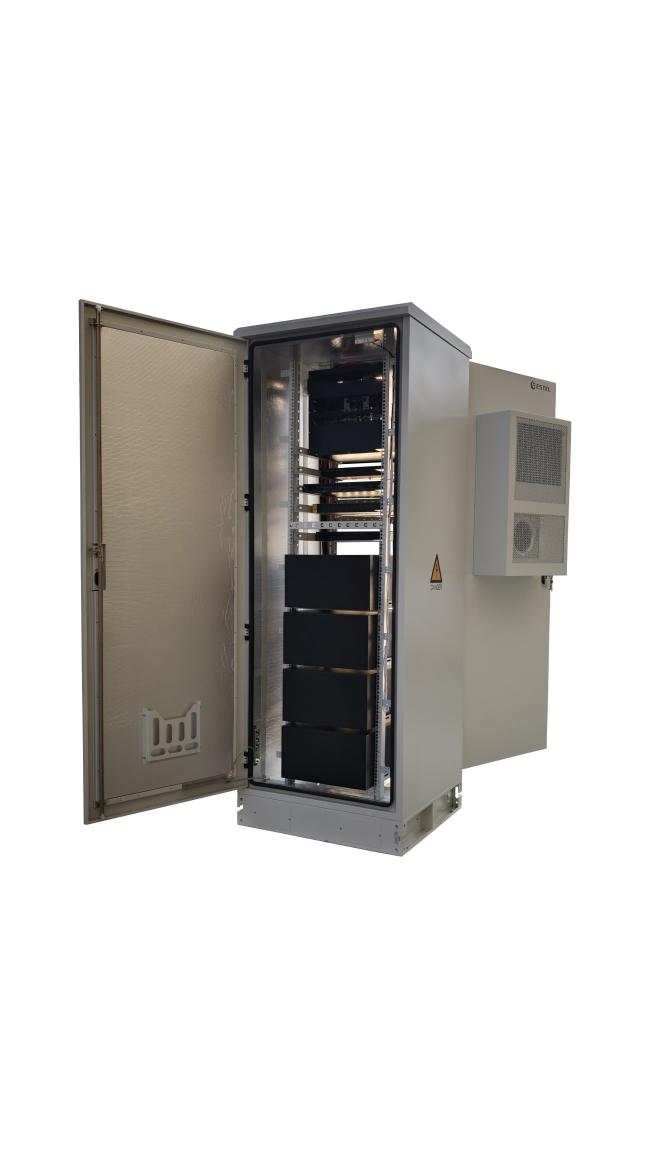

• Visible lower battery installation area with 4 stacked battery positions

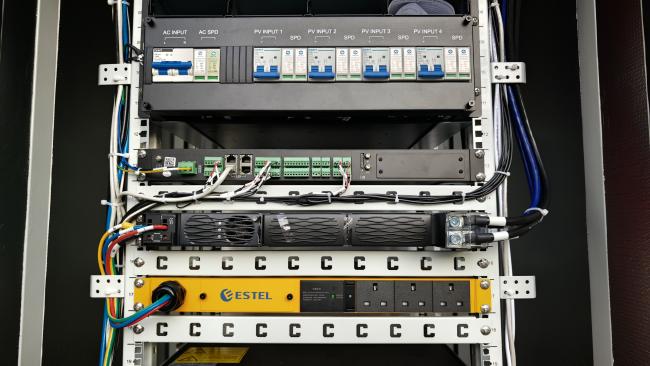

• Upper section reserved for power, rectifier, distribution or communication modules
• Door interior includes thermal insulation lining for improved environmental protection
• Raised base structure supports floor installation and bottom cable routing
• Lockable external handle for secure outdoor access control
• Suitable for telecom backup power, outdoor energy storage and communication support systems
Technical Specifications for Outdoor Energy Storage Cabinet
|
Item |
Specification |
|
Product Type |
Outdoor Integrated Energy Storage / Power Cabinet |
|
Installation Type |
Floor-standing outdoor installation |
|
Cabinet Structure |
Single-bay vertical metal enclosure |
|
Access Door |
1 full-height front door |
|
Door Opening Method |
Side-hinged outward-opening front and rear door |
|
Locking Method |
Front-mounted lockable swing handle |
|
Cooling Method |
Active cooling with 1 side-mounted cabinet air conditioner |
|
Cooling Unit Position |
Installed externally on the cabinet side/front-side panel |
|
Internal Layout |
Upper equipment section + lower battery section |
|
Rack Structure |
Internal vertical mounting rails for multi-level equipment installation |
|
Battery Installation Levels |
4 visible battery mounting levels / compartments in the lower section |
|
Upper Equipment Area |
Multiple rack positions visible for control, power distribution or communication equipment |
|
Door Inner Structure |
Interior door panel fitted with insulation lining |
|
Base Structure |
Raised plinth base for anchoring and cable entry |
|
Cable Access Style |
Bottom-entry / base-entry cable routing structure visible |
|
Cabinet Material |
Powder-coated sheet metal enclosure |
|
Exterior Color |
Light grey |
|
Safety Label |
High-voltage / danger warning sign on cabinet body |
|
Service Access |
Front access for equipment installation, inspection and replacement |
|
Deployment Scenario |
Outdoor telecom sites, backup power systems, DC energy storage, communication nodes and power support applications |
|
Configuration |
Internal equipment arrangement and battery configuration can be customized according to project requirements |
Operating Guidelines for Outdoor Energy Storage Cabinet
-
Install the cabinet on a level outdoor foundation or platform and secure it through the base anchoring structure.
-
Maintain sufficient clearance around the front door and side-mounted air conditioner for airflow and maintenance access.
-
Install battery modules in the lower rack section according to the designed weight distribution and cable routing plan.
-
Mount upper power, control or communication equipment in the reserved rack area and verify secure fastening before commissioning.
-
Route incoming and outgoing cables through the cabinet base and keep internal wiring organized to support safe operation.
