Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Power System
Outdoor Telecom Power Cabinet with Integrated Cooling 4pcs 48V 200Ah Lithium Battery Modules and Front and Rear Access Power System
Product Description for Outdoor Telecom Power Cabinet

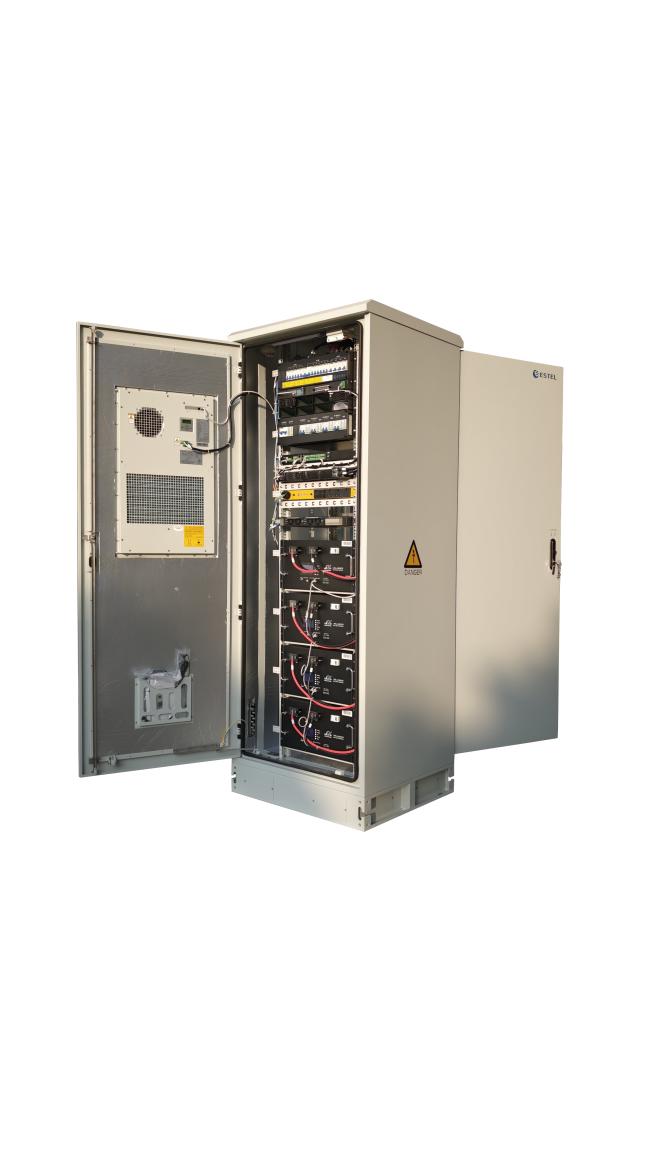

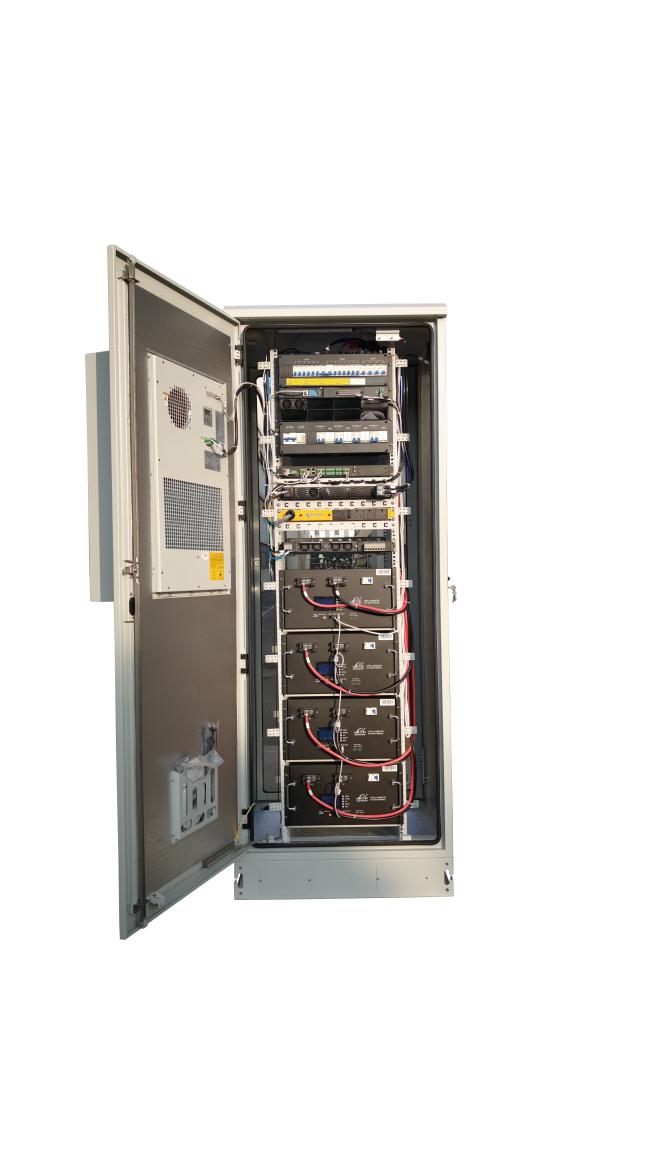

This outdoor telecom power cabinet is designed for communication sites, backup power systems and network infrastructure projects that require integrated power distribution, battery storage and environmental control in one enclosure. Based on the product images, the cabinet adopts a floor-standing outdoor structure with a full-height front door, door-mounted cooling unit and internal rack system for layered equipment installation. The cabinet is equipped with four front and rear access lithium battery modules and an upper power distribution section, allowing centralized installation of power, battery and control components in a single outdoor housing.
Key Features for Outdoor Telecom Power Cabinet
• Outdoor floor-standing cabinet with integrated cooling and internal rack structure

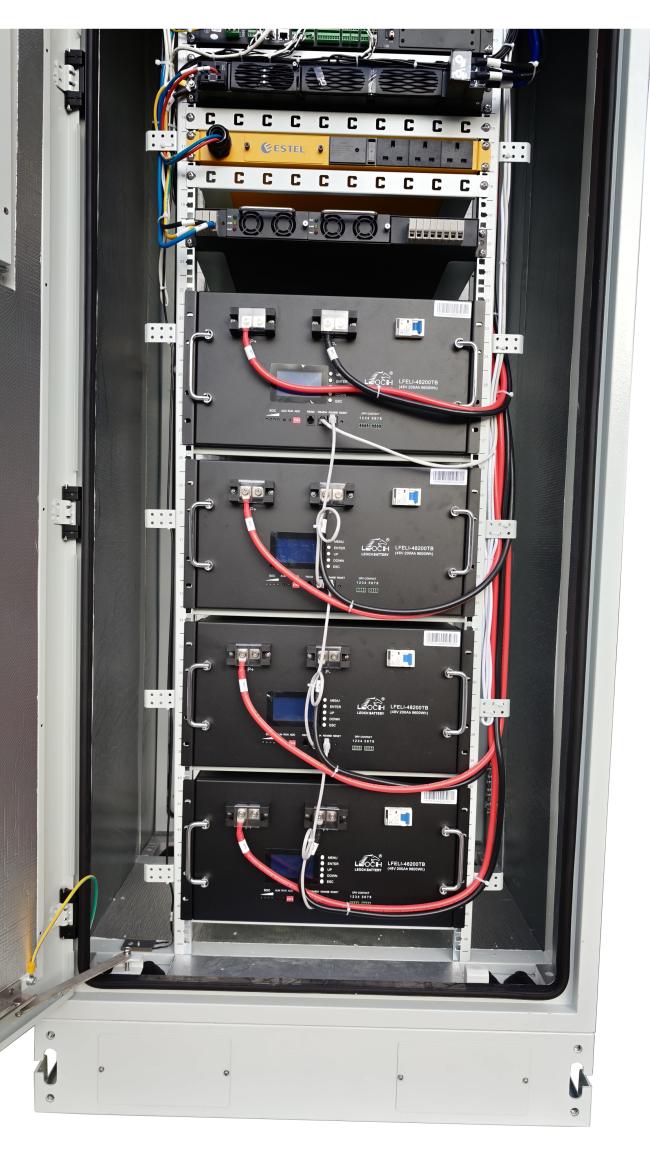

• Equipped with 4 front-access lithium battery modules for backup energy storage
• Each battery module is clearly marked 48V / 200Ah
• Total installed battery energy based on visible modules: 38.4kWh
• Internal rack layout supports integrated installation of power, battery and distribution units
• Door-mounted cooling unit helps maintain internal operating temperature
• Front and rear access design simplifies installation, service and battery replacement
• Suitable for telecom, communication, transmission and outdoor backup power applications
Technical Specifications for Outdoor Telecom Power Cabinet
|
Item |
Specification |
|
Product Type |
Outdoor Telecom Power Cabinet |
|
Installation Type |
Floor-standing outdoor installation |
|
Cabinet Structure |
Single-bay enclosed metal cabinet |
|
Door Configuration |
Single full-height front door |
|
Cooling Configuration |
1 door-mounted cooling unit visible on the inner side of the front door |
|
Internal Mounting Structure |
Integrated vertical rack system for multi-level equipment installation |
|
Battery Module Quantity |
4 lithium battery modules visible |
|
Battery Brand Marking |
LEOCH |
|
Battery Model Marking |
LFELI-48200TB |
|
Battery Nominal Voltage (per module) |
48V |
|
Battery Capacity (per module) |
200Ah |
|
Battery Energy (per module) |
9600Wh |
|
Total Nominal Battery Voltage |
48V system |
|
Total Installed Capacity |
800Ah (4 × 200Ah) |
|
Total Installed Energy |
38.4kWh (4 × 9600Wh) |
|
Battery Installation Method |
Front and rear access rack-mounted battery drawers/modules |
|
Battery Terminal Connection |
Front terminal connection with heavy-duty DC cables |
|
Battery Module Monitoring |
Each battery module includes front display / indicator area |
|
Power Distribution Section |
Upper rack section includes DC distribution / breaker and power modules |
|
AC Output Interface |
UK-type AC socket outlets visible in upper internal section |
|
Service Access |
Front access for equipment installation and maintenance |
|
Base Structure |
Raised plinth base for floor fixing and cable routing |
|
Cabinet Finish |
Light grey outdoor industrial finish |
|
Safety Marking |
High-voltage / danger warning sign on cabinet exterior |
|
Application |
Outdoor telecom sites, backup power systems, communication nodes, transmission equipment and integrated power infrastructure |
Operating Guidelines for Outdoor Telecom Power Cabinet
-
Install the cabinet on a stable outdoor foundation and secure it through the bottom base structure.
-
Ensure adequate clearance around the cabinet door and cooling unit for maintenance and airflow.
-
Verify that all battery modules are properly installed and that DC cable connections are tightened before system commissioning.
-
Install upper power, distribution and control equipment according to the rack layout and load allocation plan.
-
Keep the cabinet door closed and locked during normal operation to protect internal equipment and maintain environmental control.
