The ETP48300 005 is a compact Negative 48V DC telecom power platform designed for communication sites that need centralized DC distribution battery protection load control and remote monitoring in one rack mounted system.
Product Features Negative 48V DC Telecom Power
|
Feature |
Description |
|
Compact Structure |
Rack mounted metal enclosure for telecom cabinet installation |
|
Clear Distribution Area |
Front panel marked with AC INPUT AC SPD LLVD BLVD BAT1 and BAT2 |
|
Load Priority Control |
LLVD and BLVD branches support different load levels |
|
Battery Protection |
Two battery breaker positions for battery string connection |
|
Front Operation |
Breakers monitoring unit terminals and alarm ports are all accessible from the front |
|
Site Monitoring |
Built in controller with display indicators LAN port RS485 port and terminal alarm interface |
|
Heat Dissipation |
Large top ventilation area supports airflow and system cooling |
|
Safe Operation |
Warning labels and protected breaker layout improve field operation safety |
|
Export Packing |
Wooden crate and inner cartons protect the equipment during long distance shipment |
Main Applications Negative 48V DC Telecom Power
|
Application |
Use |
|
Telecom Base Station |
Provides Negative 48V DC power distribution for network equipment |
|
Outdoor Telecom Cabinet |
Suitable for integrated cabinet power systems |
|
Transmission Room |
Supports DC supply for transmission and access devices |
|
Fiber Access Site |
Powers access network equipment and backup loads |
|
Battery Backup System |
Connects battery strings through BAT1 and BAT2 branches |
|
Weak Grid Site |
Helps manage priority loads during power interruption |
|
Remote Site |
Supports monitoring through communication and dry contact interfaces |

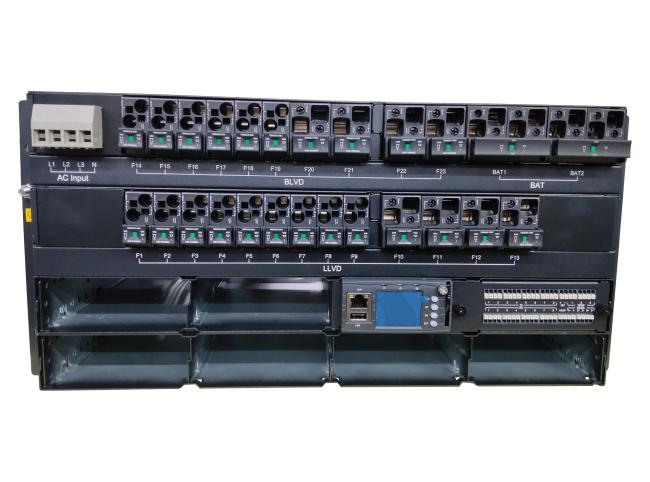

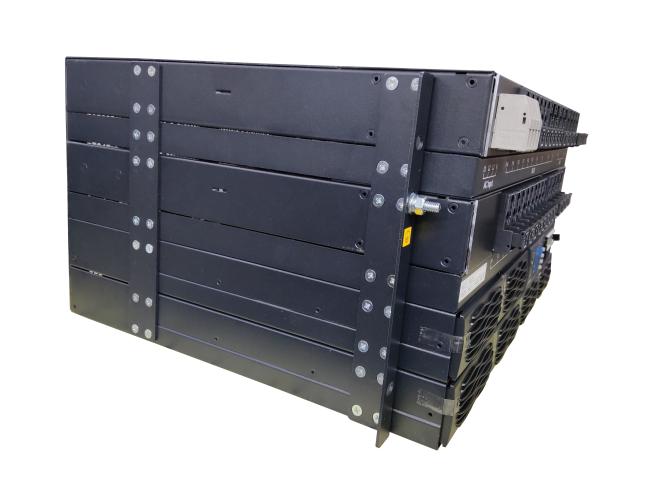

System Layout Negative 48V DC Telecom Power
|
Area |
Visible Configuration |
|
AC Input |
Front left AC INPUT breaker area |
|
AC Surge Protection |
AC SPD modules installed beside input breaker |
|
LLVD Area |
F1 to F7 load branches for priority DC loads |
|
BLVD Area |
F8 to F13 load branches for controlled backup loads |
|
Battery Area |
BAT1 and BAT2 battery breaker positions |
|
Monitoring Area |
Controller with LAN RS485 display window and status indicators |
|
Signal Terminal Area |
DI DO battery temperature environment temperature RS485 and SPD terminals |
|
Module Area |
Lower front slots for power modules or functional units |
|
Cooling Area |
Perforated top ventilation panels for heat dissipation |
Technical Specifications Negative 48V DC Telecom Power
|
Item |
Specification |
|
Model |
ETP48300 005 |
|
System Type |
Negative 48V DC telecom power platform |
|
Rated Current |
300A class configuration |
|
Installation |
Rack mounted telecom cabinet installation |
|
Input Section |
AC INPUT front breaker area |
|
Surge Protection |
AC SPD installed |
|
Load Distribution |
LLVD and BLVD separated distribution |
|
LLVD Branches |
F1 to F7 |
|
BLVD Branches |
F8 to F13 |
|
Battery Branches |
BAT1 and BAT2 |
|
Communication Port |
LAN and RS485 visible on controller |
|
Alarm Terminal |
DI DO RS485 SPD and temperature terminal interface |
|
Maintenance Mode |
Front operation and front wiring access |
|
Cooling Design |
Top ventilation with metal air grille |
|
Enclosure |
Black metal rack mounted chassis |
|
Packing Method |
Export wooden case with inner carton packaging |
Distribution Details Negative 48V DC Telecom Power
|
Branch Area |
Function |
|
LLVD |
For higher priority telecom loads that need longer backup time |
|
BLVD |
For lower priority loads that can be disconnected to protect batteries |
|
BAT1 |
Battery string input or output protection branch |
|
BAT2 |
Second battery string protection branch |
|
AC SPD |
Protects AC side against surge impact |
|
Signal Terminal |
Supports monitoring alarm and sensor wiring |
|
RS485 Label |
Clear communication diagram printed near terminal block |

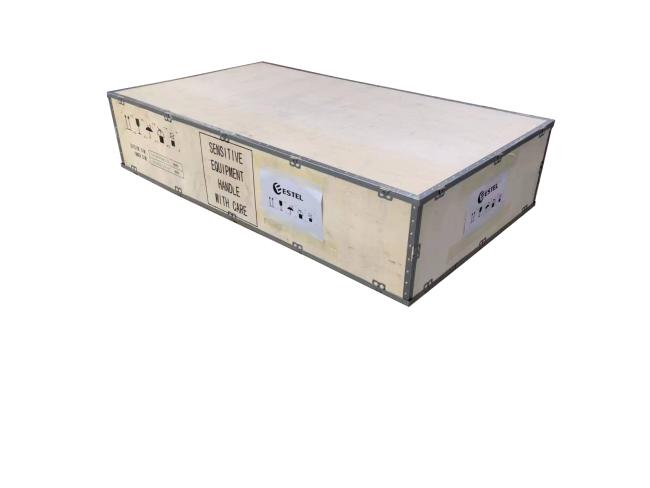

Packaging Description Negative 48V DC Telecom Power
|
Packing Part |
Description |
|
Outer Package |
Reinforced wooden export case |
|
Inner Package |
Individual carton boxes inside the crate |
|
Protection Method |
Cartons fixed inside wooden case to reduce movement |
|
Handling Mark |
Sensitive equipment handle with care label |
|
Shipment Use |
Suitable for factory delivery project shipment and overseas transport |
Product Description Negative 48V DC Telecom Power
The ETP48300 005 combines DC load distribution battery branch protection surge protection and intelligent monitoring in one compact power shelf. The front panel layout is clearly divided into AC input AC SPD LLVD BLVD battery monitoring and signal terminal areas which helps engineers identify each function quickly during installation inspection and maintenance.
With separated LLVD and BLVD output branches the system can assign different backup priorities to critical and non critical telecom equipment. This design helps extend battery backup time protect the battery from deep discharge and improve power continuity for base stations transmission rooms and outdoor communication cabinets.
