ET48300-A7E412 18kW PV + 12kW Rectifier 12U -48V Hybrid Telecom Power Platform
ET48300-A7E412 18kW PV + 12kW Rectifier 12U -48V Hybrid Telecom Power Platform

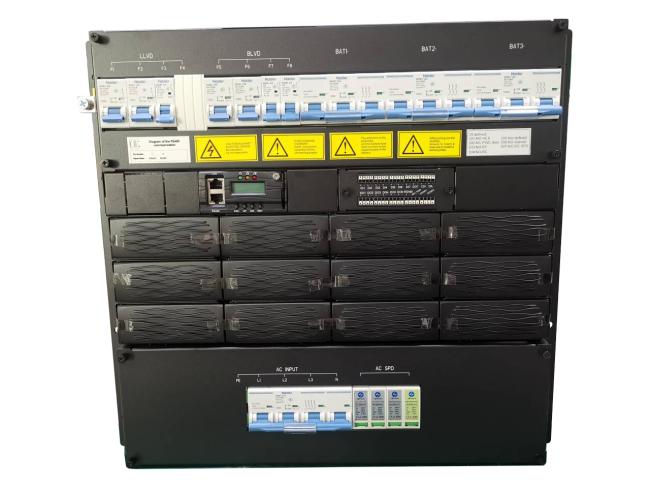

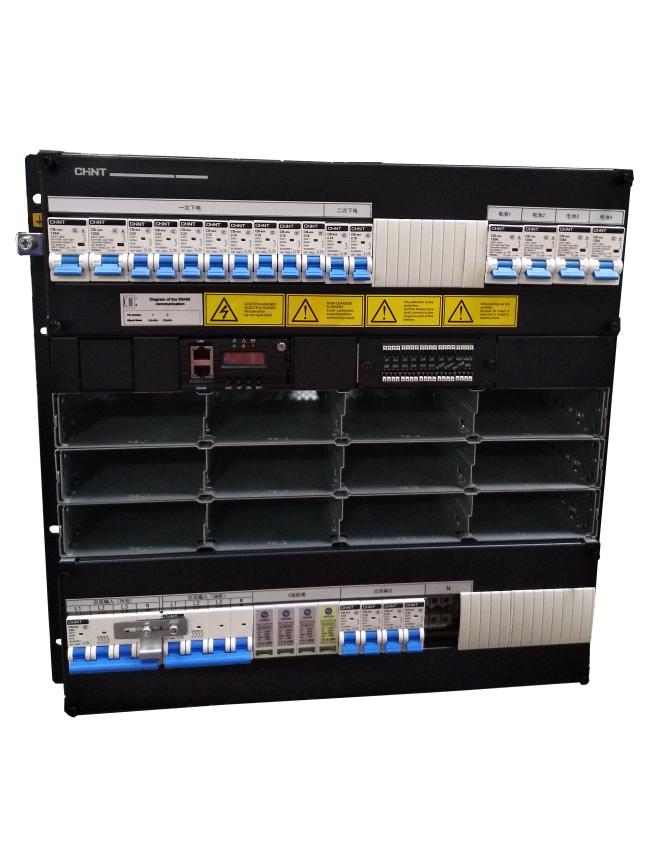

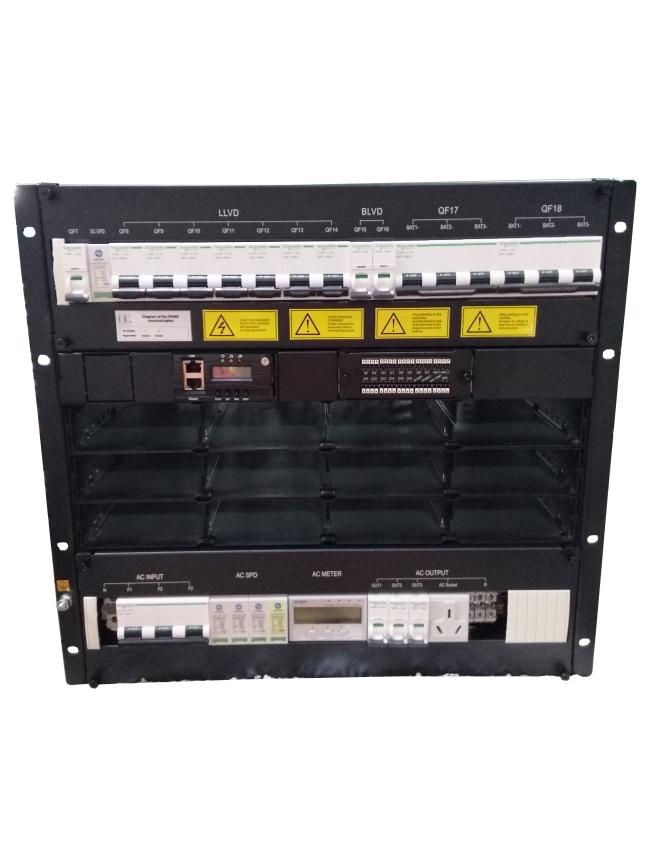

The ET48300-A7E412 is a 12U hybrid -48V DC power platform designed for telecom sites using both solar power and AC mains power. It integrates PV input, rectifier modules, battery distribution, load protection, surge protection and intelligent monitoring in one 19-inch rack-mounted system.
This model is suitable for outdoor telecom cabinets, solar base stations, weak-grid sites, off-grid relay stations and battery backup power systems. The front-maintenance design, hot-swappable modules and clear distribution layout make installation, inspection and field replacement easier for telecom engineers.
The system supports 18kW solar input and 12kW rectifier capacity. Six 3kW PV/MPPT modules can work together with three 3kW rectifier modules, while one redundant slot improves system flexibility. The output range is -43V to -58VDC, with rated output at -53.5VDC.
Main Applications 18kW PV + 12kW Rectifier
|
Application Area |
Description |
|
Solar telecom base station |
For hybrid PV and AC power supply |
|
Outdoor telecom cabinet |
Compact 12U rack-mounted installation |
|
Weak-grid site |
Reduces dependence on unstable grid power |
|
Off-grid relay station |
Supports solar charging and battery backup |
|
Fiber access network |
Provides stable -48VDC power distribution |
|
Battery backup system |
Protects critical communication loads |
Technical Specifications 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
Model |
ET48300-A7E412 |
|
System Type |
18kW PV + 12kW rectifier hybrid power platform |
|
System Voltage |
-48VDC telecom power system |
|
DC Output Range |
-43V to -58VDC |
|
Rated DC Output |
-53.5VDC |
|
Total PV Capacity |
18kW, 6 × 3kW |
|
Rectifier Capacity |
12kW, 3 × 3kW + 1 redundant slot |
|
Installation |
19-inch rack-mounted |
|
Dimensions |
482.6mm W × 350.6mm D × 12U H |
|
Weight |
≤40kg, without modules |
|
Maintenance |
Front maintenance |
|
Module Design |
Hot-swappable |
|
Cabling Mode |
Bottom inlet, top outlet |
|
Shelf Cooling |
Natural cooling |
|
Protection Level |
IP20 |
AC Distribution 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
AC Input |
Dual live wire + N, 220Vac |
|
Input Voltage |
L1-L2: 220V; L1-N: 110V; L2-N: 110V |
|
Input Breaker |
2 × 125A/2P, manual interlock |
|
Frequency |
45–65Hz |
|
Rated Frequency |
50Hz / 60Hz |
|
AC SPD |
20kA / 40kA, 8/20μs |
|
AC Output |
2 × 63A/1P, L1-N |
|
Additional AC Output |
3 × 32A/1P, L2-N |
|
AC Socket |
2 × 110V / 15A / NEMA 1-15 |
DC Distribution 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
Battery Breakers |
2 × 125A/1P |
|
Load Breakers |
1 × 63A/1P + 2 × 20A/1P + 6 × 10A/1P |
|
Load Control |
Secondary power-off supported |
|
DC SPD |
10kA, 8/20μs |
|
Load Protection |
Supports priority load distribution |
Rectifier Module 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
Input Voltage |
85VAC to 300VAC |
|
Rated Input |
220VAC |
|
Rated Output Power |
3000W |
|
Efficiency |
≥96% |
|
Power Factor |
≥0.99 at 220Vac, 20%–100% load |
|
Operating Temperature |
-40°C to +75°C |
|
Full-load Condition |
Below 50°C |
|
Dimensions |
106.5mm W × 286mm D × 41.5mm H |
|
Height |
1U |
|
Weight |
≤2.0kg |
|
Cooling |
Forced air cooling |
PV / MPPT Module 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
PV Input Voltage |
120Vdc to 420Vdc |
|
Rated PV Input |
340Vdc |
|
PV Input Breaker |
6 × 25A/2P |
|
PV Input SPD |
6 × 20kA / 40kA, 8/20μs |
|
PV Module Input |
120Vdc to 425Vdc |
|
PV Module Power |
3000W |
|
PV Module Efficiency |
96% |
|
MPPT Accuracy |
≥0.99 |
|
Operating Temperature |
-40°C to +75°C |
|
Full-load Condition |
Below 50°C |
|
Dimensions |
106.4mm W × 285mm D × 41.5mm H |
|
Height |
1U |
|
Weight |
≤2kg |
|
Cooling |
Forced air cooling |
Monitoring and Communication 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
Display |
LCD |
|
Communication |
RS485, SNMP |
|
AI Input |
3 channels |
|
Temperature Sensors |
2 battery sensors + 1 ambient sensor |
|
DI Input |
6 channels |
|
Alarm Output |
6 dry-contact outputs |
|
Remote Monitoring |
Supported |
Environmental Conditions 18kW PV + 12kW Rectifier
|
Item |
Specification |
|
System Operating Temperature |
-40°C to +70°C |
|
Full-load Condition |
Below 50°C |
|
Storage Temperature |
-40°C to +75°C |
|
Operating Humidity |
5%–95% |
|
Altitude |
0–3000m |
|
Application Environment |
Telecom cabinet, solar site, hybrid power station |
