Waterproof Outdoor Telecom Cabinet 24U communication cabinet
20U Floor Mounted Base Transceiver Station Enclosure With Front Door And Back Door
1. BTS Enclosure Description
The outdoor cabinet is one compartment cabinet for installing 19” telecom equipments. The cabinet cooling use air conditioner and fan, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.
2. BTS Enclosure Features
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥600kg
- Flame retardance: comply with GB5169.7 test A
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
3.BTS EnclosureTechnical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H×W×D 1225×900×900mm Internal Dimension H×W×D 900×800×800mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V Air Conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1225×900×900mm ;Internal Dimension H×W×D 900×800×800mm (2) One compartment; (3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls |
| 2 | Air Conditioner | 1 | Set |
500W Air Conditioner AC220V,50HZ power supply |
| 3 | 110V to 220V Transformer | 1 | Set | Used for air conditioner input. |
| 4 | Fans | 4 | PC | DC48V |
| 5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
| 6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 60A, 3210W; Model: GPE4860C |
| 7 | LED Lamp | 1 | Set | |
| 8 | Door Sensor | 1 | Pcs | |
| 9 | Package | 1 | Set | Wooden Case |

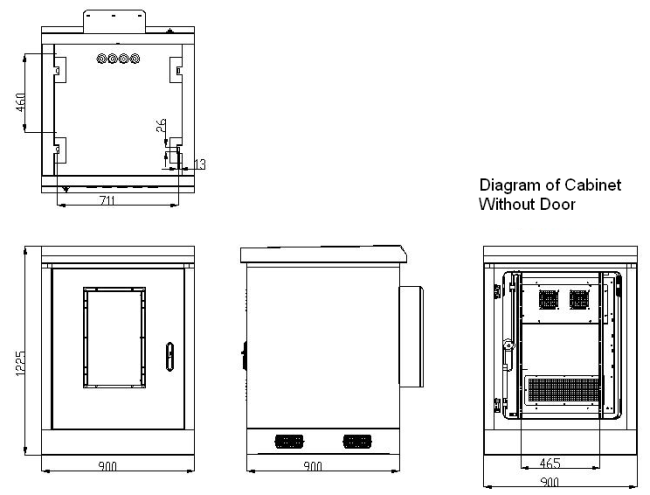

4. Cabinet Diagram
5. Feature Of Floor Mounted rack enclosure
- A floor-mounted rack enclosure is a type of server rack that is designed to be placed on the floor and used to house servers, networking equipment, and other computing hardware. Some features of floor-mounted rack enclosures include:
- Size: Floor-mounted rack enclosures come in a variety of sizes, from small enclosures that can hold a few servers to large enclosures that can hold dozens of servers. The size of the enclosure will depend on the amount of equipment that needs to be housed.
- Ventilation: Proper ventilation is critical for keeping servers and other equipment cool and preventing overheating. Floor-mounted rack enclosures typically have ventilation slots or fans built into the design to ensure that air can circulate freely.
- Cable management: With multiple pieces of equipment housed in a single enclosure, cable management can become a major challenge. Floor-mounted rack enclosures often have cable management features built-in, such as cable trays and grommets, to keep cables organized and tidy.
- Security: Floor-mounted rack enclosures often come with locking doors to prevent unauthorized access to the equipment inside. Some enclosures may also have additional security features, such as biometric locks or alarm systems.
- Mobility: Depending on the design, some floor-mounted rack enclosures may be mobile, allowing them to be moved from one location to another as needed. This can be especially useful in situations where equipment needs to be moved frequently or when equipment needs to be relocated during maintenance or upgrades.
- Rack unit capacity: Floor-mounted rack enclosures are typically designed to accommodate standard rack units, which are used to measure the height of servers and other equipment. The number of rack units that an enclosure can hold will depend on its size and design.
6. FAQ
Q: Are you trading company or manufacturer?
A: We are Manufacturer. We can do OEM/ODM business.
Q: What do you manufacture and supply?
A: Our company mainly produces Outdoor Telecom Cabinet
Q: Do you need drawings for quotation and production?
A: Yes, all our products are customized. We need either drawings or prototypes.
Q: What is your terms of payment ?
A: 50% T/T in advance ,balance before shipment.
