Telecommunication Base Station Cabinet , Outdoor Electrical Cabinets Two Bay ET1678140
Telecommunication Base Station Cabinet , Outdoor Electrical Cabinets Two Bay ET1678140
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Dimension: W×D×H 1600×780×1400mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| Model : ET1678140 | Cabinet Layout: two compartments, one for installing 19” equipments, the other for installing other equipments |
| Product Name: Custom Made Outdoor Telecom Cabinet | Protection Level: IP55 |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Cabinet Lock: anti-theft three point lock |
| Application: outdoor telecom base station, telecom tower, BTS | Cable Entry: from cabinet bottom |
| Material: galvanized Steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: grey (support custom made) | Cooling: AC220V Air Conditioner |
| Coating: anti-corrosion outdoor powder coating | Accessories Options: PDU, rectifier system, environment monitoring system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 7,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 1600×780×1400mm |
| Equipment Installation Method | 19” rack | |
| Layout | 2 compartments, one including 19” rack, the other including shelf | |
| Door | With two front doors, two back doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +45°C |
| Storage Temperature: -25°C ~ + 55°C | ||
| Transport Temperature: -40°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W×D×H 1600×780×1400mm (2) 2 compartments, one including 19” rack, the other including shelf. (3) With two front doors, two back doors, and anti-theft three point lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; with 20mm heat insulation between two walls |
| 2 | Air Conditioner | 2 | Set |
Cooling capacity: 1.5KW, Power supply: AC220V, 50HZ, Model: TC06-150JFH/01 |
| 3 | Door Sensor | 2 | PC | For controlling LED lamp |
| 4 | LED Lamp | 2 | PC | DC48V |
| 5 | Package | 1 | Set | Wooden Case |
2. Features
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- Cabinet cooling: air conditioner. MTBF≥50000h.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
- The cabinet includes grounding bar.
3. Applications
The ET1678140 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

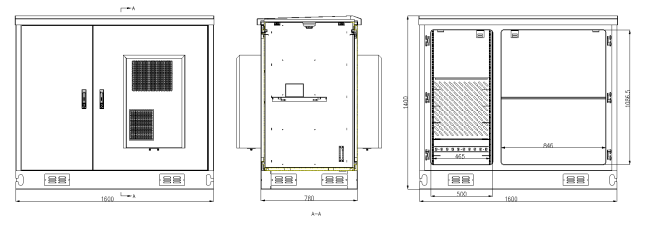

4. Dimension Diagram
5. Components Installation
5.1 LED lamp and door sensor are installed at the top of the cabinet.
5.2 Air Conditioners are installed on the door of the cabinet.

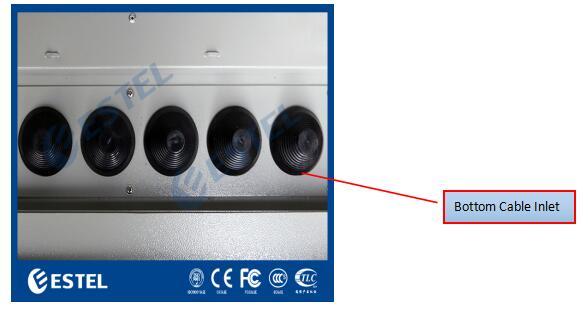

6. Cable Inlet
Feeder cable and other external cables all use bottom wiring method.
7. Grounding Protection

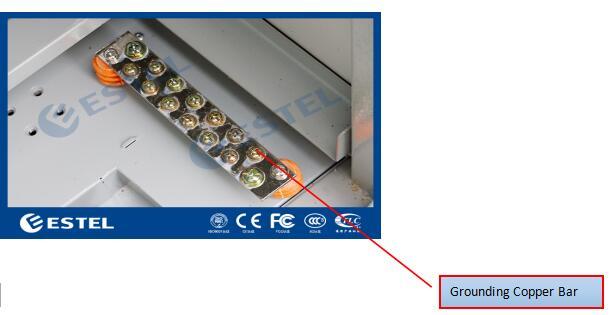

- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
8. Theft Proof Design
8.1 Door lock theft proof design

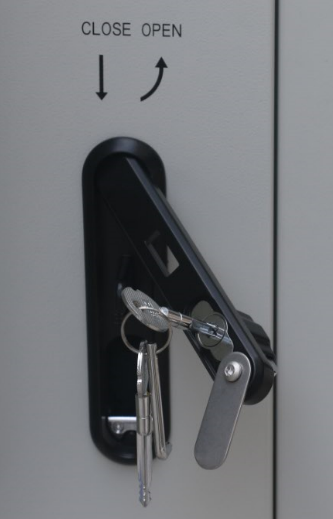

- Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

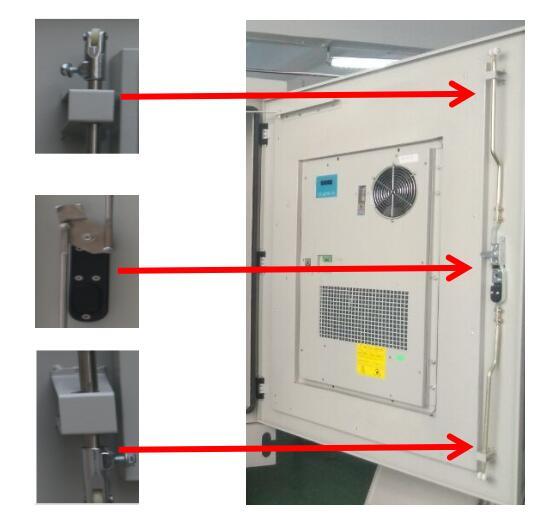

Three point lock

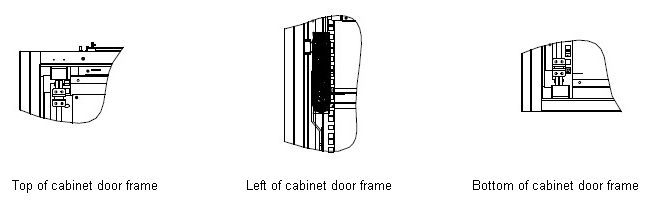

8.2 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

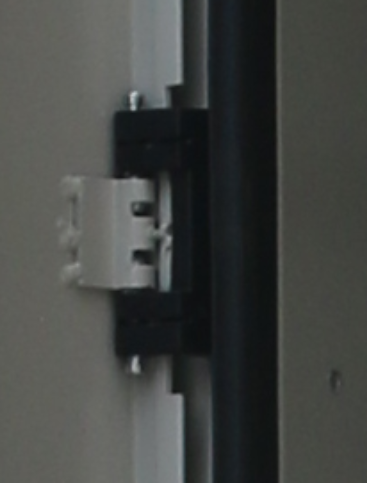

- Door hinges use inner hinge mode.
8.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
9. Cabinet Installation

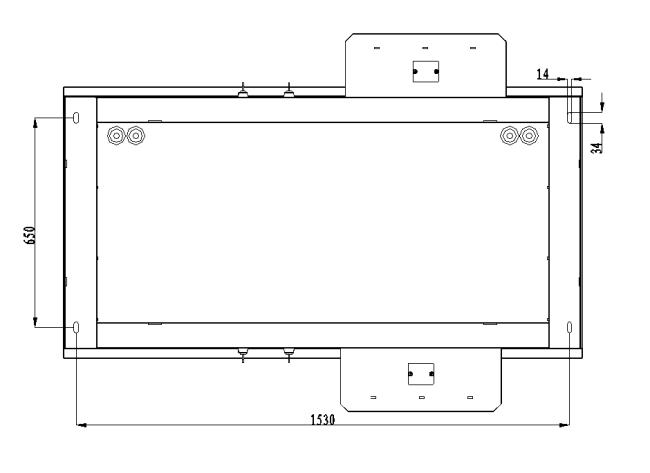

9.1 Position of installation holes at cabinet base are as follows:
Diagram 1
9.2 Users prefabricate concrete base.
9.3 Pre-embed 4pcs M10×120 anchor bolts on the concrete base. Distance between bolts are as that in diagram 1. Bolt exposed height is 40mm. Put the cabinet on the concrete base, align anchor bolts, then screw on nuts, and tighten them with wrench.
9.4 According to site situation, put the cabinet on the concrete base with forklift, crane or manually, and fix it on the concrete base with bolts.
10. Leading Time
Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.

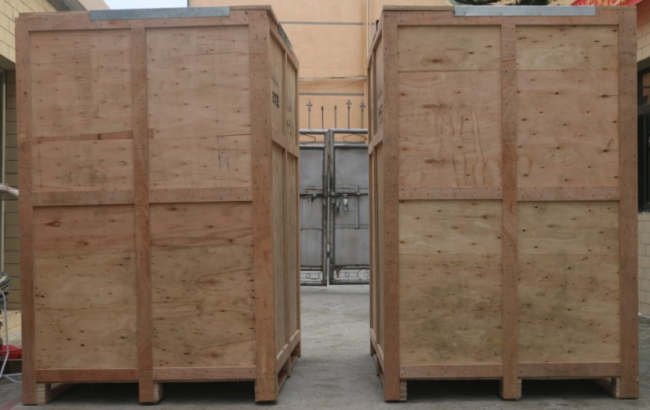

11. Packing and Shipping

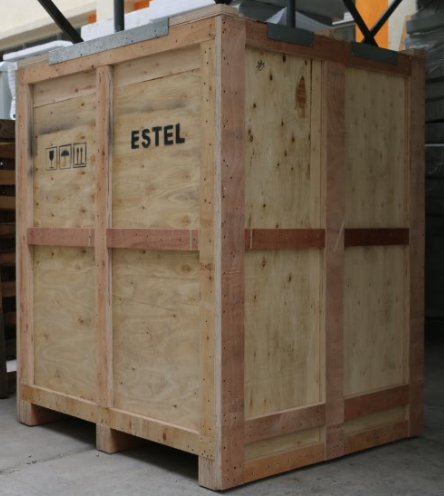

The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
